High Accuracy Humidity and Temperature Measurement
Made in Swiss. brand Rotronic, model HCD-S-MOD
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

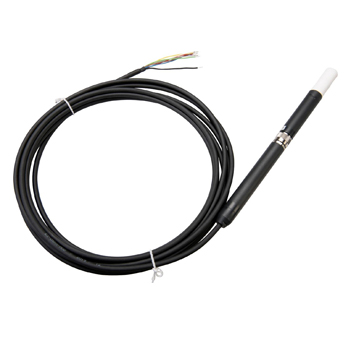

The HCD-S-MOD, a combination of the HCD-S and the Modbus cable, offers the customer an easy, and digital solution to integrate temperature and humidity into their system. The standardized MODBUS RTU communication is a widely known standard and ensures a short integration time.
Note: Probe and cable are one piece and cannot be disassembled.
Applications:
| Technical data | |
| Order code | HCD-S-MOD |
| Consist of | HCD-S & E2-05XX-MOD |
| Range of application (humidity) | 0…100 %rh |
| Range of application (temperature) | -40…85 °C |
| Humidity sensor | HYGROMER HT-1 |
| Long-term stability | <1 %rh/year |
| Accuracy | ±0.8 %rh, ±0.1 K @ 23 °C |
| Material | Polycarbonate |
| Technical data HCD-S and E2-05XX-MOD | |
| Humidity sensor | HYGROMER HT-1 |
| Temperature sensor | PT1000, Class 1/3 B |
| Operating humidity | 0…100 %rh |
|
Operating temperature |
Probe and cable: -40…70 °C HCD-S: -40…85 °C
E2-05XX-MOD: -40…70 °C |
| Accuracy @ 23 °C | ±0.8 %rh ±0.1 K |
| Long-term stability | 1 %rh / year |
| Startup time | 100 ms |
| Measurement interval | 500 ms |
| Response time sensor | t63: <15 s without filter, (temperature and humidity) |
| Maximum wind velocity | 3.5 m/s without filter |
| Supply voltage | 5…28 VDC with cable E2-05XX-MOD Probe only: 2.8…5.5 VDC |
| Current consumption cable and probe @ 24V | 2.5 mA |
| Protection rating | IP65 (except sensor area) |
| Material | Polycarbonate |
| Protocol / Interface | Modbus RTU / RS-485 |
| Order code | Filter carrier | Filter element | Pore size | Application range |
| SPA-PCB-PE |
Polycarbonate, black |
Polyethylene, white | 40-50 μm |
-50…100 °C |
| SPA-PCB-PTFE | PTFE, white | 10 μm | ||
| SPA-PCB-WM | Wire mesh 1.4401 |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HCD-S-MOD using the special form.
You can buy Rotronic HCD-S-MOD in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic HCD-S-MOD price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Humidity and Temperature probes
