Fixed Humidity and Temperature Measurement Probe
Made in Swiss. brand Rotronic, model HF1
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

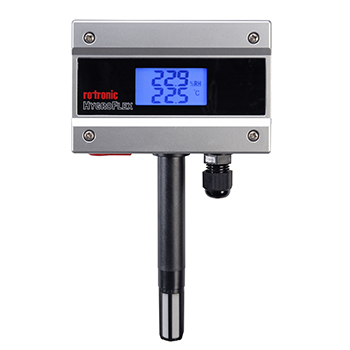

The HygroFlex1 series contains inexpensive HVAC transmitters for relative humidity and temperature measurement. The devices are equipped with the Rotronic tried-and-tested Hygromer® IN-1sensor and boast unbeatable value for money.
Applications
| General | |
| Transmitter type | 2-wire type: HF120 3/4-wire type: HF13x |
| Supply voltage | 12…28 VAC / 15…40 VDC |
| Current consumption | 2-wire maximum 40 mA 3/4-wire
with voltage output: <15 mA with current output: <55 mA |
| Parameters | Humidity and/or temperature |
| Housing material / IP | ABS / IP 65 (space mount version IP30) |
| Weight | Wall version type W: 140 g
Duct version 100 mm type D: 140 g Duct version 300 mm type F: 200 g Space mount version type S: 90 g |
| Sensors integrated in device | Yes |
| Operating and measurement range | -20…50°C (type S), -20…60°C (type W, D, F)
0…100 %RH (non-condensing) |
| CE / EMC compatibility | 2004/108/EC |
| Humidity measurement | |
| Humidity sensor | Rotronic Hygromer® IN-1 |
| Accuracy type W & type D at 23 °C ± 5 K | <± 2 %RH (10…90 %RH) |
| Accuracy type S at 23 °C ± 5 K | <± 3 %RH (10…90 %RH) |
| Long-term stability | <1.5 %RH per year |
| Response time -r63 | 30 s (63 % of a rise 35…80 %RH) without filter |
| Temperature measurement | |
| Sensor | Thermistor |
| Standard temperature scale | 0…50 °C or 0…100 °F |
| Precision at 23 °C ± 5 K | ± 0.3 °C, type S ± 1 °C |
| Response time | 4 s |
| Outputs | |
| Number | 2 analog outputs freely scalable |
| Current | 04…20 mA |
| Voltage | 0…1/5/10 VDC |
| Wall version | Type | Output | Temperature scaling | Display |
| HF120-WB1XX1XX | 2-wire | 4…20 mA | 0…50 °C | No |
| HF132-WB1XD1XX | 3-wire | 4…20 mA | Yes |

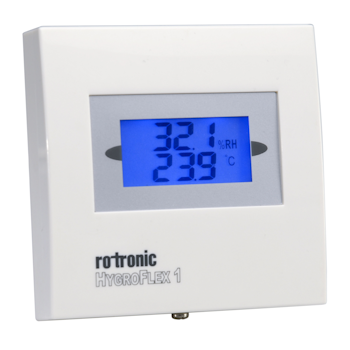

| Space mount version | Type | Output | Temperature scaling | Display |
| HF120-SB1XDXXX | 2-wire | 4…20 mA | 0…50 °C | Yes |
| HF132-SB1XDXXX | 3-wire | 4…20 mA | Yes |

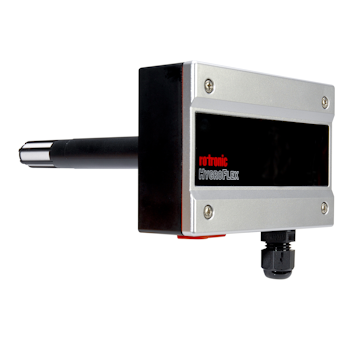

| Duct version: 100 mm probe | Type | Output | Temperature scaling | Display |
| HF132-DB1XX1XX | 3-wire | 4…20 mA | 0…50 °C | No |
| HF135-DB1XX1XX | 0…10 VDC | No | ||
| Duct version: 300 mm probe | ||||
| HF120-FB1XX1XX | 2-wire | 4…20 mA | 0…50 °C | No |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HF1 using the special form.
You can buy Rotronic HF1 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic HF1 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
