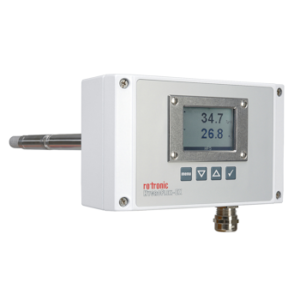

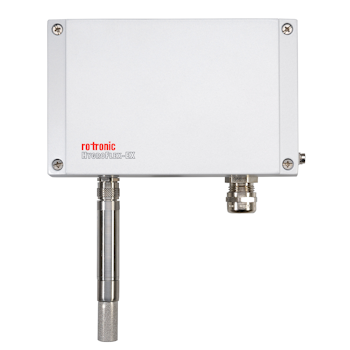

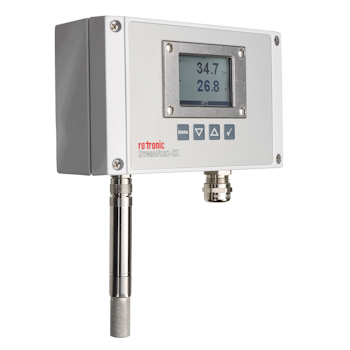

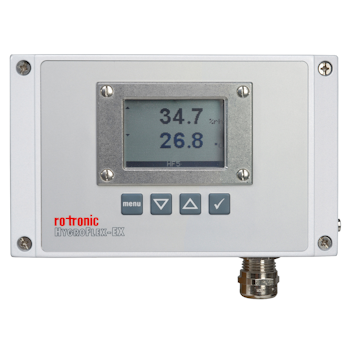

The Rotronic HygroFlex5-EX series consists of two-channel transmitters for the exact measurement of humidity and temperature in explosive atmospheres. This device conforms to the latest international standards. The robust aluminium HF5-EX humidity and temperature transmitters are available with or without display. The attached probes are cast into a stainless steel tube and are certified for operation in explosive atmoshperes.
Functional display
Proven housing
Power supply
Outputs
Interchangeable probes
Applications
HF520-EX
| General | |
| Parameters | Humidity and temperature |
| Calculated parameters | All psychrometric parameters
available |
| Housing material / Protection | Aluminium (DIN EN 1706 EN
AC-AlSi 12 (Fe)) / IP66 |
| Weight | Wall mounted version: 1030 g
Duct mounted version: 1140 g |
| Start-up time | Standard cold <60 s / warm <30 s |
| Measurement interval | 20…240 s |
| Display | Optional, LCD without backlight |
|
Electrical connections |
Connections: Ex-e terminals (0.2…2.5 mm2)
Cable gland: 16 x 1.5 (Ø cable 4.5…7 mm) |
| Power supply | 10…28 VDC |
| Current Consumption | 2×24 mA start up / 2×20 mA
operation |
| Application temperature
Housing / electronics |
-40…60 °C without display
-10…60 °C with display |
|
Service interface |
UART internal service interface
(only to be used outside the explosive zone) |
| Conformity | CE, UKCA, ATEX, EMC, RoHS |
| EX Certification | IECEx, UKEX, QPS |
|
EX identification |
II 2(1) G Ex eb mb [ia Ga] IIC T5 Gb
II 2(1) D Ex tb [ia Ga] IIIC T80 °C Db |
| Analogue output | |
| Number | 2 |
| Current | 4…20 mA, two-wire |
| Galvanic isolation | Yes |
| Maximum load | 500 Ohms |
| Accuracy at 23 °C | <20 uA |
| General | |
| Parameters | Humidity and temperature |
| Housing material / Protection | Stainless steel / IP66 |
| Cable lengths | 2/5/10 metres |
| EX identification | II 1/2 G Ex ia IIC T5 Ga/Gb
II 1/2 D Ex ia IIIC T80°C Da/Db |
| Humidity measurement | |
| Sensor | HC2-SM/IM/IE-EX:
ROTRONIC HYGROMER® IN-1 |
|
Adjustment |
Not via device menu
(only outside the explosive zone with Hygrosoft + AC3001) |
| Measurement range | 0…100 %rh |
| Accuracy at 23 °C | ±0.8 %rh |
| Temperature measurement | |
| Sensor | HC2-SM/IM/IE-EX: Pt100 Class A |
| Measurement range | -40…85 °C |
| Accuracy at 23 °C | ±0.1 °C |
| Accessories | |
| Filters | Steel sinter filter, SP-FN15 |
| Cable gland | AC1301-MEX for duct mounting and
cable probes (IM) |
