Exchangeable Probes for Humidity and Temperature Measurement
Made in Swiss. brand Rotronic, model HF5
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

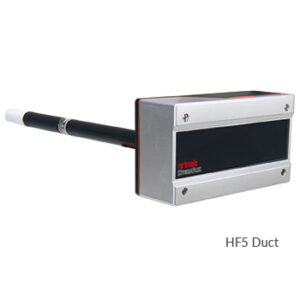

The HygroFlex5 series is compatible with HC2A probes which offers a high variety in temperature ranges, accuracy and body types. This device generation also boasts a unique calibration and adjustment process as well as many other useful innovations. The HF5 Humidity and Temperature Transmitters are available as wall and duct mount versions.
Proven housing
Power supply
Outputs
Flexible choice of probes
Connection of simulators facilitates process validation
Applications
| Model | HF52
2-wire |
HF53/54/56
3/4-wire |
| Humidity probe | HygroClip2 probes, various types* | |
| Probe cable extension | Passive: max. 5 m, active: 100 m | |
| Accuracy at 23 ±5 °C | Probe dependent | |
| Response time 1 63 | Probe dependent | |
| Initialization time | HF53/54/56 typically 3 s, HF52 typically 60 s | |
| Measurement range | Probe dependent | |
| Range of application electronics | HF53/54/56: -40…60 °C / 0…100 %RH (-10…60 °C with LCD) | |
| Display type (option) (HF52: without backlight) | Graphic with backlight Display freely configurable | |
| Trend indicator | Yes | |
| Output signals (analog) | Freely scalable by user
0…1 V, 0…5 V, 0…10 V, 0(4)…20 mA |
|
| Digital outputs (optional) | Ethernet (LAN, WLAN), USB, RS-485 | |
| Power supply | HF52: 10…28 VDC: 10 V + (0.02 x load) HF53: 15…40 VDC/12…28 VAC
HF54 with galvanic isolation: 9…36 VDC HF56 with galvanic isolation: 100…240 VAC |
|
| Current consumption | HF52: max. 40 mA, others <100 mA, LAN option <300 mA | |
| Circuit type | HF52: 2 x 2 wires HF53/54/56: 3/4 wires | |
| Load per analog output | V-signal: ³1 kW/V / mA-signal: £500 W | |
| Load compensation | Yes | |
| Firmware upgradable | Yes, via HW4 software | |
| Sensor diagnostics (drift, state) | Programmable. Default: Off | |
| Humidity adjustment | Keyboard/Software: multipoint (HF53/54/56) | |
| Temperature adjustment | Keyboard: 1-point
Software: 2-point (HF53/54/56) |
|
| External memory function for logging | Yes, 2000 data point memory | |
| Psychrometric calculations | All | |
| PC interface, UART | Yes, HW4-compatible | |
| Data processing via HW4 | Graphics, statistics, analyses, qualification, etc. | |
| Housing material | ABS / Aluminum (HF5xxS) | |
| Cable connections | 1 x M16 x 1.5, to terminals | |
| Standards | CE conformity 2014/30/EU | |
| Audit trail, electronic records | Conforms to FDA 21 CFR Part 11 and GAMP | |
| IP protection &
fire protection class |
IP65 / Corresponds to UL94-HB | |
| Order Code | Type | Accuracy @ 23 °C | Application Range | Sensor Element | Long-Term Stability |
| HC2A-IC | Industrial probe |
±0.8 %RH ±0.1 K |
-100…200 °C |
HYGROMER HT-1 |
<1 %RH / year |
| HC2A-S | Standard probe, black |
-50…100 °C 0…100 %RH |
|||
| HC2A-S3 | Meteo probe, white | ||||
| HC2A-SM | Steel probe | ±1.2 %RH
±0.1 K |
HYGROMER HH-1 |
||
| HC2A-S-HH | Standard probes for harsh environments | ||||
| HC2A-SM-HH |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HF5 using the special form.
You can buy Rotronic HF5 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic HF5 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
