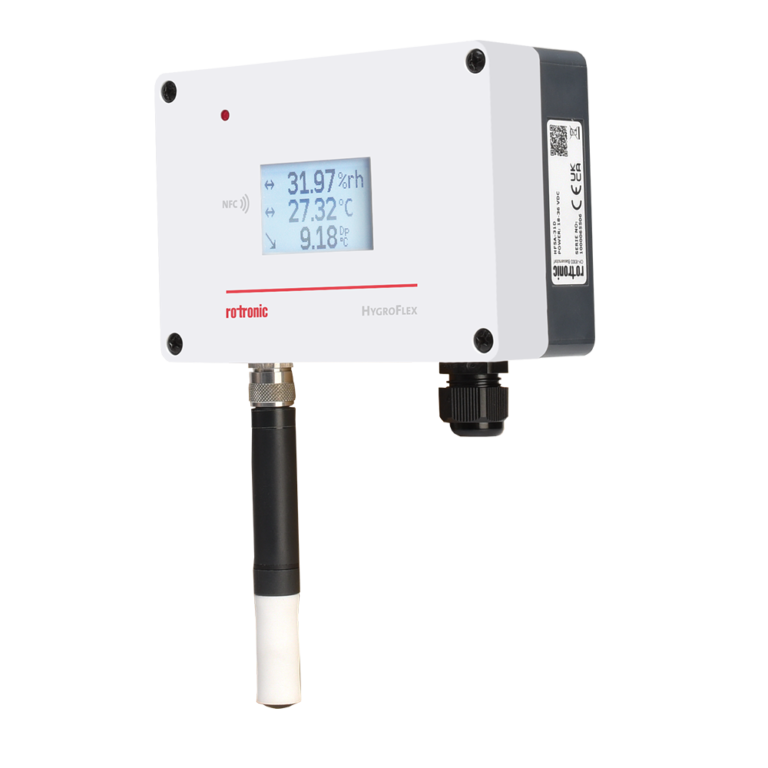

The HF5A-series is the latest development in advanced measurement transmitters. Compatible with our range of digital (HC2, HC2A and RMS) probes for humidity and temperature, temperature only, and differential pressure. The HF5A can also provide all standard psychrometric outputs. Our advanced digital probes have integrated AirChip3000 technology – thanks to which the probes achieve an unparalleled degree of accuracy. For Humidity and Temperature measurements the HygroFlex5 Advanced HF5A-21, HF5A-31 and HF5A-D1 transmitters combined with a HC2A-S advanced probe provide superb precision and state-of-the-art functionality, taking humidity and temperature measurement to a whole new level of accuracy < 0.8 %rh and < 0.1 K at 23 °C. HygroFlex5 outputs include mA, voltage and modbus RTU via RS485.
New housing
Outputs
Power supply
Flexible choice of probes
Applications
| Model | HF5A-21
2-wire |
HF5A-31/ HF5A-D1
¾-wire |
| Humidity Probe | HygroClip2, HC2 Probes, various types | |
| Accuracy at 23 ± 5 °C | Probe dependent | |
| Initialization time | Typically, > 30 sec. | Typically, 3 sec. |
| Measurement range | Probe dependent | |
| Range of applications | -10…60 °C with display / -40…70 °C without display / humidity 0…100 %rH (non-condensing) | |
| Trend indicator | Yes | |
| Display resolution | Resolution up to 2 decimal places (0.01) | |
| Output signals analog | 4…20 mA | Freely scalable 0…5, 0…10 V, 0…20 mA, 14…20 mA |
| Resolution Analog output | ≥ 15 bit | |
| Output signals digital | – | RS485 signals on screw terminal |
| Cable connections | 1 x M16 x 1.5, screw terminals | |
| Psychrometric calculations | All | |
| Power supply | 18…36 VDC (Vmin =
12 VDC + 6 VDC) |
18…36 VDC |
| Circuit Type | 2-wire | 3- wire with mounted Jumper J1 (default)
4- wire galvanically separated with unmounted J1 |
| Current consumption | 50 mA
(when both outputs are connected) |
< 100 mA (when both outputs are connected) |
| Load per analog output | Max. 500 Ω | Current: Max. 500 Ω Voltage : Min. 10 kΩ |
| Interface | NFC Interface and Rotronic Software | |
| Software | Accessoire NFC-USB-READER: NFC to USB Reader or with the HygroSoft software mobile App and a mobile phone with an integrated NFC-Reader. | |
| Housing Material | Top: PMMA, Bottom: ABS | |
| Standards | CE Conformity 2014/30/EU | |
| GMP/ FDA Compliance | Conforms to FDA 21 CFR Part 11 and GAMP5 | |
| Dimensions | 134 × 94 × 52 mm | |
| Weight | Display version 277g, Others 270g | |
| IP-protection | IP65 | |
| Fire protection class | Corresponds to UL94-HB | |
| Soldering material | Lead free (RoHS-Directive 2011/65/ EU) | |
Conventional probes
| Order Code | Type | Accuracy @ 23 °C | Application Range | Sensor Element | Long-Term Stability |
| Standard Precision probes are factory-adjusted at 23 °C and 10, 35 and 80 %RH | |||||
| HC2A-S | Standard, black |
±0.8 %RH / ±0.1 K |
-50…100 °C /
0…100 %RH |
HYGROMER HT-1 |
< 1 %RH per year with clean air |
| HC2A-S3 | Meteo, white | ||||
| HC2A-SM | Standard, steel | ||||
| HC2A-S(M)-HH | Standard, for rough environ- ment, black | ±1.0 %RH / ±0.1 K | 0…60 °C / 0…100 %RH | HYGROMER-HH1-SK | – |
| High Precision probes are factory-adjusted at 23 °C and 10, 20, 30, 40, 50, 60, 70, 80 and 90 %RH, then calibrated at 20, 50 and 80 %RH | |||||
| HC2A-SH | High precision, black | ±0.5 %RH / ±0.1 K | -50…100 °C / 0…100 %RH | HYGROMER HT-1 | < 1 %RH per year with clean air |
| HC2A-S3H | Meteo High precision, white | ||||
| Industrial probes are factory-adjusted at 23 °C and 10, 35 and 80 %RH | |||||
| HC2A-ICXXX | Industrial, black |
±0.8 %RH / ±0.1 K |
-100…200 °C / 0…100 %RH |
HYGROMER HT-1 |
< 1 %RH per year with clean air |
| HC2A-IMXXX-M | Industrial, steel | ||||
| HC2A-ICXXX-A | Industrial, black | ||||
| HC2A-IE02-XXX | Industrial, steel | ||||
RMS probes
| Order Code | Type | Accuracy @ 23 °C | Application Range | Sensor Element | Long-Term Stability |
| Digital Standard Precision probes are factory-adjusted at 23 °C and 10, 35 and 80 %RH | |||||
| RMS-HCD-S | Digital Standard, black | ±0.8 %RH / ±0.1 K | -40…85 °C / 0…100 %RH | HYGROMER HT-1 | < 1 %RH per year with clean air |
| RMS-HCD-S3 | Digital Standard, white | ||||
| Digital Industrial probes are factory-adjusted at 23 °C and 10, 35 and 80 %RH | |||||
| RMS-HCD-IC102 | Digital Industrial, black | ±0.8 %RH / ±0.1 K | -100…200 °C / 0…100 %RH | HYGROMER HT-1 | < 1 %RH per year with clean air |

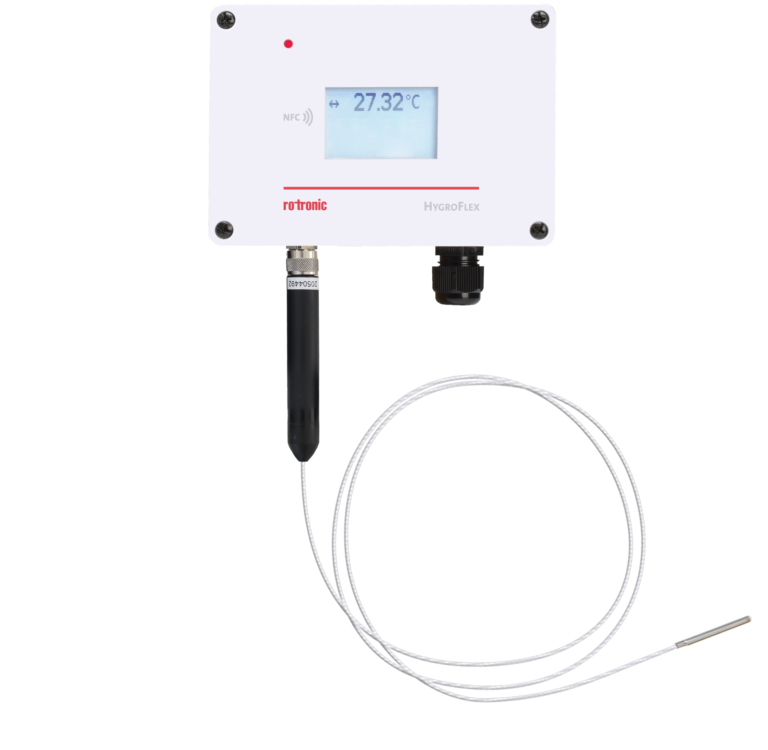

| Digital Temperature probe | |||||
| RMS-TCD-S-001 | Digital Temperature, steel | ±0.25 °C (-50…85 °C) | -190…200 °C | PT100 | ±0.5 °C per year with clean air |
Compatibility: HF5A all versions
| Order Code | Type | Accuracy @ 23 °C | Application Range | Sensor Element | Long-Term Stability |

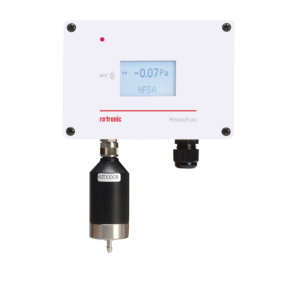

| Digital Differential Pressure probe, 5-point calibration | |||||
| PCD-S-XX | Digital Differential Pressure, black | ±0.1 %FS | -500…500 Pa | Flow or Membrane | ±0.1 %FSS per year |
Compatibility: Only HF5A-31 & HF5A-D1 versions (3/4 wire Transmitter)
