Laboratory Benchtop to connect up to 4 HC2-AW probes
Made in Swiss. brand Rotronic, model HygroLab
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $6 449
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

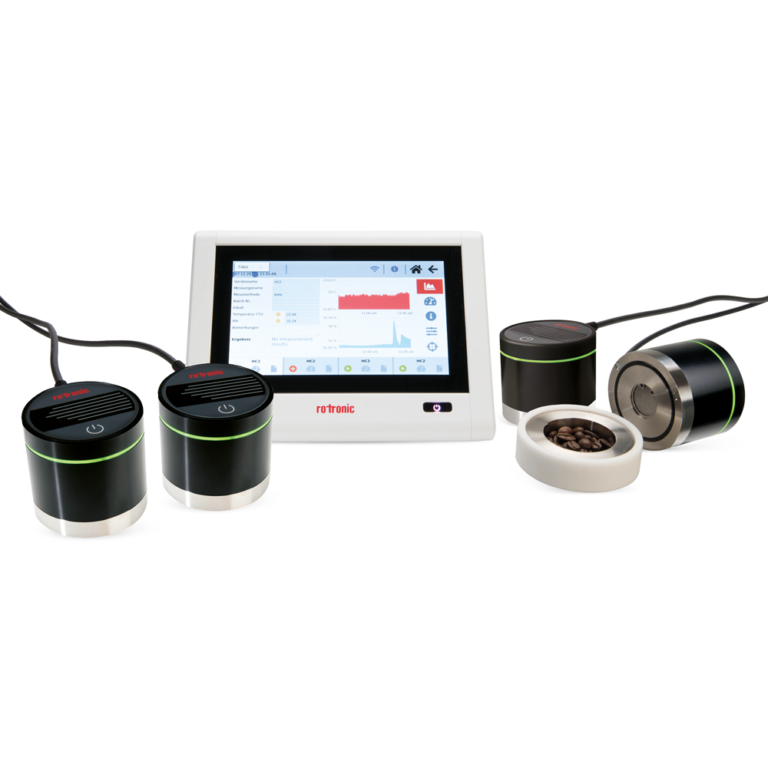

The Rotronic HygroLab is an innovative high-end laboratory analyzer for water activity measurements with up to four measurement probe inputs. Simultaneous or asynchronous measurement with the tried-and-tested AW Quick measuring function for pharmaceutical products, tobacco, coffee, food and many more.

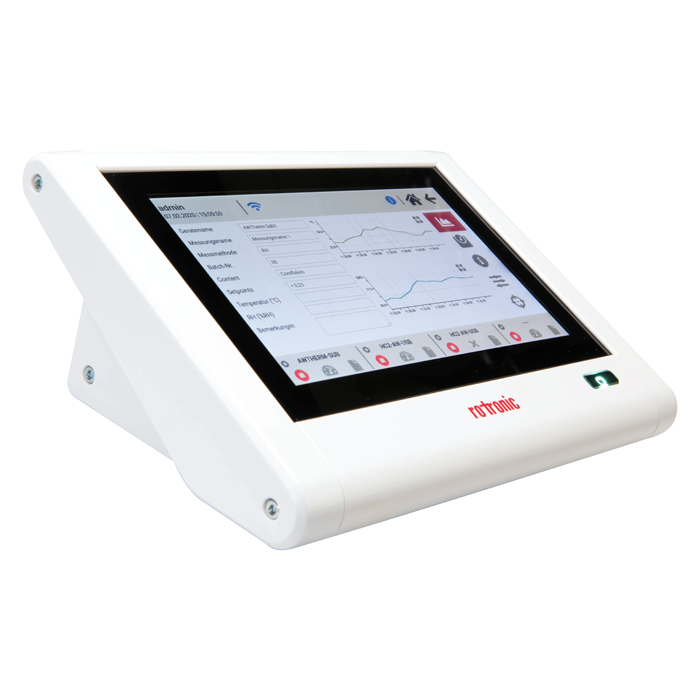

Innovative and stand-alone user interface
The HygroLab has a modern interface for clear and simple measurement of water activity. It is operated using a touch screen interface. The water activity meter can also be connected to the internet for remote control or for free available software updates with many new functionalities. The measurements can thus be observed and the measurement reports downloaded from anywhere at any time. Documents (IQ/OQ) for the vaildation are also additionaly available for the HygroLab.
Applications
Find out how easy it is to calibrate our water activity probes
| General specifications | |
| Order code | HygroLab |
| Operating range | 0…40 °C (32…104 °F) / 0…80 %RH |
| Parameters shown | AW, %RH, °C, °F, Dp |
| Dimensions | 215×146×79 mm |
| Accuracy @ 23 °C ± 5 % (HC2A-AW) | ± 0.008 AW / 0.8 %rh / ±0.1 K |
| Long-term stability (HC2A-AW) | < 1 %rh / year (Normal conditions) |
| AW Quick Mode | Yes |
| Display | 7 ” LCD capacitive touch screen |
| Power button | Push button (with RGB light indicator) |
| Trend display | Yes |
| Clock | Real time clock provides a time stamp for every measurement |
| Storage capacity | 16 GB |
| Power supply | 12 VDC 2.0 A 24 W Max (AC adapter) |
| Power supply plugs | CH (EU & UK) / US |
| Probe connections | 4 x HC2 station probe (HC2A-S or HC2A-AW) |
| USB (A) types | 2 x 2.0 and 2 x 3.0 |
| USB power supply | 5 V / 500 mA |
| Measurement interval | 15 s for AW measurement or 5 s for data logging |
| Start-up time | 30 s |
| Software update | Over internet or USB |
| Protocols (values) | Date, time, AW / RH, °C / °F, Dp, AW setpoint, Serial No., etc. |
| HygroSoft compatible | No |
| Acoustic alarm | No |
| Calculations | Dew Point |
| Delivery package | • HygroLab
• Power adapter • Pen • Short instruction manual |
| Housing / Mechanics | |
| Housing material | Aluminum, ABS, stainless steel |
| Weight | 1.02 kg (2.25 lbs) |
| Conformity with standards | |
| CE conform | CE 2014/30/EU |
| FDA compliant | FDA 21 CFR Part 11 compliant
with optional validation document (IQ/OQ) |
| Conformity Declaration | CE and UKCA |
| IP protection rating | IP30 |
Sample holders and sample containers
The sample holders provide excellent sample containment and optimum temperature stability. The WP-40TH can be attached to a water bath for additional temperature control.
The disposable sample containers ensure the optimum sample volume is introduced into the sample holders. They prevent the sample holders from coming into direct contact with the product being tested, thereby preventing soiling or cross contamination. The sample containers also provide a convenient means of collecting and storing samples.
| Order code | WP-14-S | WP-40 | WP-40TH |
| Type | Sample holder | ||
| Use with | PS-14 | PS-14 / PS-40 | |
| Height | 14 mm | 40 mm | |
| Material | V2A steel | Brass, nickel-plated | |
| Weight | 350 g | 1250 g | 1550 g |
| Order code | PS-14 | PS-40 |
| Type | Sample container | |
| Use with | WP-14-S / WP-40 / WP-40TH | WP-40 / WP-40TH |
| Height | 14 mm | 40 mm |
| Packaging unit | 100 pc. | |
| Order code | PS-14 | PS-40 |
| Type | Sample container | |
| Use with | WP-14-S / WP-40 / WP-40TH | WP-40 / WP-40TH |
| Height | 14 mm | 40 mm |
| Packaging unit | 100 pc. | |
Clamp sealing mechanism
In the case of very dry or very moist samples additional mechanical sealing of the AW measurement probe and sample holder may be necessary to prevent external conditions influencing the sample.
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HygroLab using the special form.
You can buy Rotronic HygroLab in UAE at a price starting from 6449 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic HygroLab price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
