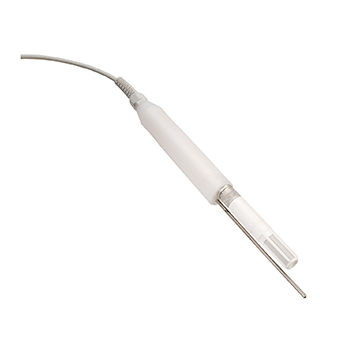

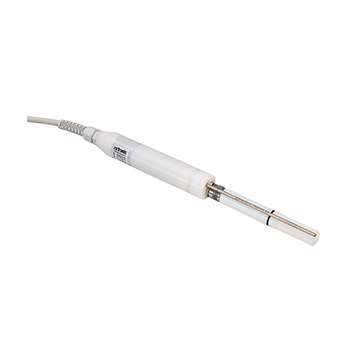

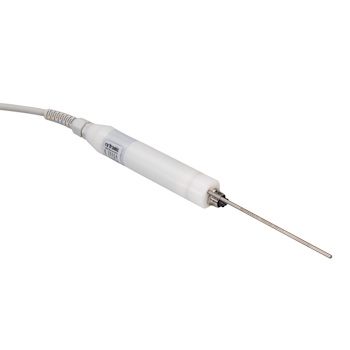

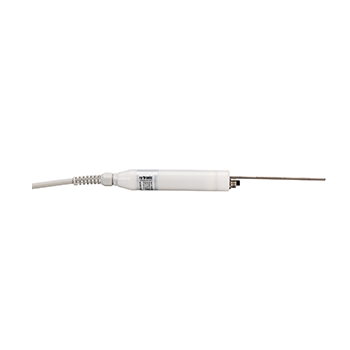

Meteorological probes with integrated electronics for two active outputs (current or voltage) and equipped with a RS485 interface. Humidity and temperature are measured with the plug-in HygroClip HC2-S3 sensor module. In addition the MP102H/MP402H can be equipped with a signal conditioned Pt100 temperature probe in various accuracy classes.
Applications
| Supply voltage | 3,3…5 VDC |
| Current consumption | Approx. 5 mA (Adjusted at 3.3 VDC) |
| Load | > 10 kW |
| Protection rating | IP65 (except the sensor area) |
| Digital Interface | UART (19200 baud fixed) |
| Protocols | • RoASCII (Default)
• MODBUS (setting with HW4) |
| Analog outputs | 2x 0…1 V |
| Analog outputs Parameters | • Humidity (default)
• Temperature (default) • Dew point (setting with HW4) • Frost point (setting with HW4) |
| Analog output scaling | • Humidity (0…100 %rh = 0…1V)
• Temperature (-40…60 = 0…1V) • Freely settable with HW4 |
| Timing | 1st measurement after 1.5 s Measurement interval of 1 s |
High Precision probes are factory-adjusted at 23°C and 10, 20, 30, 40, 50, 60, 70, 80, 90 %rh, then calibrated at 20, 50, 80 %rh.
| Order Code | Type | Accuracy @ 23 °C | Application Range | Sensor Element | Long-term stability |
| HC2A-SH | High Precision | ±0.5 %rh±0.1 K | -50..100 °C0…100 %rh | HYGROMER HT-1 | <1 %rh per year with clean air |
| HC2A-S3H | Meteo 4 High Precision |
Standards Precision probes are factory-adjusted at 23°C and 10, 35, 80 %RH.
| Order Code | Type | Accuracy @ 23 °C | Application Range | Sensor Element | Long-term stability |
| HC2A-S | Standard | ±0.8 %rh±0.1 K | -50..100 °C0…100 %rh | HYGROMER HT-1 | <1 %rh per year with clean air |
| HC2A-S3 | Meteo4 Standard | ||||
| HC2A-SM | Steel Probe | ||||
| HC2A-S-HH | Standard Probe for Rough environment 5 | ±1.0 %rh±0.1 K | Hygromer HH-1 |
Computer Connection
The cable AC3001 allows direct connection to a computer via USB and, with use of the HW5 software to adjust the HC2A probe’s parameters such as
Possible Filters
| Order Code | Filter carrier | Filter Element | Pore size | Application Range |
| SPA-PCB-PE |
Polycarbonate, black |
Polyethylene, white | 40-50 μm |
-50…100 °C |
| SPA-PCB-PTFE | PTFE, white | 10 μm | ||
| SPA-PCB-WM | Wire mesh 1.4401 | |||
| SPA-PCW-PE |
Polycarbonate, white |
Polyethylene, white | 40-50 μm | |
| SPA-PCW-PTFE | PTFE, white | 10 μm | ||
| SPA-PCW-WM | Wire mesh 1.4401 | |||
| SPA-PE |
No filter carrier, only filter |
Polyethylene | 40-50 μm | |
| SPA-PTFE | PTFE, white |
10 μm |
-100…200 °C |
|
| SPA-WM | Wire mesh 1.4401 | |||
| SPA-SS-WM | 1,4301 | |||
| SPA-SSS | Sintered steel, 1.4404 (Carrier and filter) | 25 μm | ||
| SPA-SS-PFTE | Stainless steel, 1.4301 | Teflon | 10 μm | |
| SPA-SS | No filter | – | ||
Standard: HC2A-S + SPA-PCB-PE with filter (Polyethylene, white)
