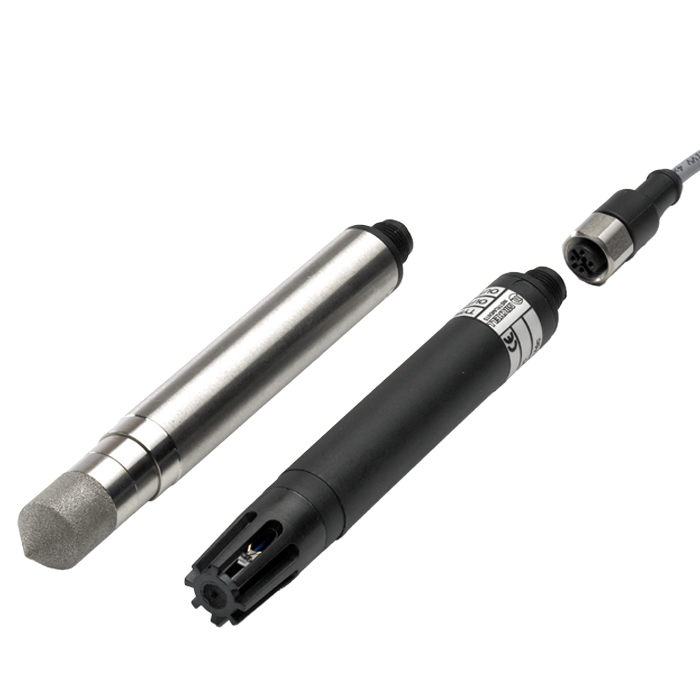

Rotronic PC33 & PC52, PC62 & PC62V, PCMini52
Photo Rotronic PC33 & PC52, PC62 & PC62V, PCMini52 Description Rotronic PC33 & PC52, PC62 & PC62V, PCMini52 Specifications Rotronic PC33 & PC52, PC62 & PC62V, PCMini52 Model Chart Rotronic PC33 & PC52, PC62 & PC62V, PCMini52 User Manual for Rotronic PC33 & PC52, PC62 & PC62V, PCMini52 Related instruments to Rotronic PC33 & PC52, PC62 & PC62V, PCMini52
Humidity and Temperature Measurement
Made in Swiss. brand Rotronic, model PC33 & PC52, PC62 & PC62V, PCMini52
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Rotronic PCMini52 – Excellent accuracy and performance in harsh conditions
Miniature rh and temperature probe with digital or analog outputs. Designed for environmental control applications.
Rotronic PC62 & PC62V – Reliable digital relative humidity and temperature probe
Highly accurate measurements in precision manufacturing applications.
Rotronic PC33 & PC52 – Stable measurements with analog output
Cost-effective probes designed for HVAC and controlled environment applications.
Applications:
| PC33 & PC52 | PC62 & PC62V | PCMini52 | |
| Probe type | Analog relative humidity and temperature | Digital relative humidity and temperature | Digital relative humidity and temperature |
| Measuring range | -20…80 °C / 0…100 %rh | ||
| Accuracy at 23 °C | PC33: ±3 %rh (30…80 %rh) / ±0.3 K PC52: ±2 %rh (10…90 %rh) / ±0.2 K | ±2 %rh (10…90 %rh) / ±0.2 K | ±2 %rh (10…90 %rh) / ±0.2 K |
| Long-term stability | <1 %rh / year | ||
| Probe housing | Molded polymer or stainless steel | Molded polymer or stainless steel | |
| IP Protection rating | IP65 | ||
| Power supply | 14…30 VDC (0…5 V/ 0…10 V output) 5…30 VDC (0…1 V & mA output) | 14…30 VDC (0…5 V/ 0…10 V out- put) 5…30 VDC (0…1 V) | 14…35 VDC (0…5 V/0…10 V
output) 6…35 VDC (0…1 V output) |
| Output signal | 4–20 mA, 0 to 1, 0 to 5, 0 to 10 V | 0–1, 0–5, 0–10 V, RS232, RS485 | Modbus RTU
0 to 1, 0 to 5, 0 to 10 V |
| Response time rh sensor | <10 sec typical (for 90% of the step change) | ||
| Electrical connections | M12 | 4 pin, M8 connector 4 pin, M12 connector | |
| Weight | 30 g (1.06 oz) without cable (molded polymer version) | 10 g (0.35 oz) | |
| Order Code | Compatibility | Product / Description |
| Protection cap | ||
| A000002 | PC62 & 62V, PC33 & PC52 | 19mm (0.75″) Slotted protection cap black |
| A000003 | PCMini52 | 12mm (0.47″) Slotted protection cap black |
| A000046 | PCMini52 | 13mm HDPE Protection cap |
| A000120 | PC62 & 62V, PCMini52, PC33 & PC52 | ø90mm (3.54″) WM weather protection cap (for ø19mm (0.75″) probes) |
| A000125 | PC62 & 62V, PCMini52, PC33 & PC52 | ø120mm (4.72″) WM weather protection cap (for ø19mm (0.75″) probes) |
| Filter | ||
| A000014 | PC62 & 62V, PC33 & PC52 | 19mm (0.75″) PVDF filter |
| A000015 | PC62 & 62V, PC33 & PC52 | 19mm (0.75″) PVDF filter w/ protection cap black |
| A000017 | PCMini52 | 12mm (0.47″) PVDF filter |
| A000018 | PCMini52 | 12mm (0.47″) PVDF filter w/ protection cap black |
| A000021 | PC62 & 62V, PC33 & PC52 | 19mm (0.75″) Mesh filter w/ protection cap black |
| A000022 | PCMini52 | 12mm (0.47″) Mesh filter w/ protection cap black |
| A000023 | PCMini52 | 12mm (0.47″) Flat SS sintered dust filter |
| A000025 | PC62 & 62V, PC33 & PC52 | 19mm (0.75″) Arrow 5μm SS sintered filter |
| A000027 | PC62 & 62V, PC33 & PC52 | 19mm (0.75″) connector, no cable, w/screw terminal |
| A000028 | PCMini52 | 12mm (0.47″) Arrow 20μm SS sintered filter |
| A000040 | PC62 & 62V, PC33 & PC52 | 19mm (0.75″) Foil filter 2μm w/protection cap black |
| A000042 | PC62 & 62V, PC33 & PC52 | 19mm (0.75″) Oleophobic foil filter 0.7μm (w/protection cap black) |
| K9 | PCMini52 | 12mm (0.47”) Mesh filter with protection cap, light brown, extra long (30mm) |
| K10 | PCMini52 | 12mm (0.47”) PTFE filter with peek protection cap |
| K11 | PCMini52 | 12mm (0.47”) Slotted protection cap, light brown, extra long (30mm) |
| Cable | ||
| A000030-xx
xx = total length i.e. A000030-20 |
PC62 & 62V, PC33 & PC52 | 19mm (0.75”) Connector – Connector
– Cable (price per meter) |
| A000031 | PC62 & 62V, PC33 & PC52 | 19mm (0.75″) connector with 2m (6.5′) cable |
| A000032 | PC62 & 62V, PC33 & PC52 | 19mm (0.75″) connector with 5m (16′) cable |
| A000033 | PCMini52 | 12mm (0.47″) connector with 2m (6.5′) cable |
| A000036 | PCMini52 | 12mm (0.47″) connector with 5m (16′) cable |
| A000037 | PCMini52 | 12mm (0.47″) connector with 10m (32.8′) cable |
| A000321 | PCMini52 | 12mm (0.47″) connector without cable (with solder terminal) |
| A000321-xx
xx = total length i.e. A000321-20 |
PCMini52 | 12mm (0.47”) connector
– Connector – Cable (price per meter) |
| A000322 | PCMini52 | 12mm (0.47″) Connector with 20m (25.6′) cable |
| Mounting | ||
| A000100 | PC62 & 62V, PC33 & PC52 | 3/4″ NPT SS adj. fitting for SS probes |
| A000101 | PCMini52 | 1/2″ NPT SS adj. fitting for SS probes |
| A000110 | PC62 & 62V, PC33 & PC52 | Al mounting flange for ø19mm (0.75″) SS probes (outside ø80mm (3.15″)) |
| A000111 | PCMini52 | Al mounting flange for ø12mm (0.47″) SS probes (outside ø40mm (1.57″)) |
| A000150 | PC62 & 62V, PC33 & PC52 | Mini flange for ø19mm (0.75″) polymer probe |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic PC33 & PC52, PC62 & PC62V, PCMini52 using the special form.
You can buy Rotronic PC33 & PC52, PC62 & PC62V, PCMini52 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic PC33 & PC52, PC62 & PC62V, PCMini52 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
