Measuring and Monitoring differential Pressure in Clean Rooms, Food and Pharma
Made in Swiss. brand Rotronic, model PF4/5
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $731
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Choice of two different sensor technologies (thermal measuring method and diaphragm sensor)
The new differential pressure transmitters PF4 and PF5 with two different sensor technologies (thermal measuring method in PF4 and diaphragm sensor in PF5) consistently produce perfect measurement results thanks to an integrated ambient pressure sensor. Both sensors are equipped with automatic zero point compensation
PF4
The thermal measurement technique of the PF4 transmitter allows exact measurements in the smallest of ranges. The differential pressure transmitter enables Rotronic customers to measure a further important parameter in addition to humidity, temperature, low dew point and CO2.

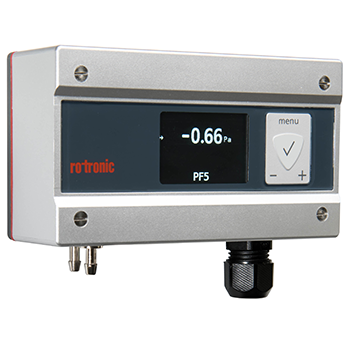

PF5
The membrane measurement technique of the PF5 transmitter allows exact measurements in the smallest of ranges. The differential pressure transmitter enables Rotronic customers to measure a further important parameter in addition to humidity, temperature, low dew point and CO2.
Applications
| General specifications | |
| Housing material | ABS |
| IP protection class | IP65 (without Ethernet) / IP40 (with Ethernet) |
| Mounting position | Wall mount |
| Display | Color TFT display (27 x 40 mm) |
| Dimensions | 129 mm x 72 mm x 45 mm |
| Weight | 243 g with display & Ethernet |
| Altitude | Up to 2000 m ASL |
| Application range | -5…60 °C / 0…100 %RH, non-condensing |
| Electrical connections | Screw terminals in housing |
| Power supply | 18…48 VDC / 16…35 VAC
(galvanically isolated) Optional: Power over Ethernet |
| Rated current consump- tion | <300 mA @ 24 VDC |
| Digital communication | Ethernet (TCP) / RS-485 (Modbus RTU) |
| Software compatibility | HygroSoft |
| Fire protection class | Corresponds to UL94-HB |
| Analog outputs | |
| Analog outputs | Min. 1, max. 3, freely configurable |
| Analog output type | 0 to 1 V
0 to 5 V 0 to 10 V 0 to 20 mA 4 to 20 mA |
| Analog output accuracy (@ 23 °C) | Voltage output: ±1 mV/V Current output: ±20 μA |
| Maximum load | > 1 kΩ/V (voltage output) |
| Maximum load | < 500 Ω (current output) |
| Resolution | 0 to 1 V 13 bit, otherwise 16 bit |
| Relays / Switch outputs | |
| Switch outputs | 1 relay potential-free change-over switch (NC – COM – NO) |
| Switching capacity | 30 VDC/1 A or 35 VAC/1 A |

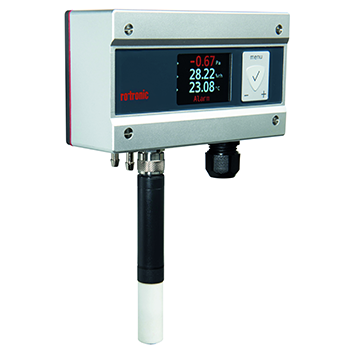

Standard humidity / Temperature probe
HygroClip2 probe: HC2A-S
Accuracy: ±0.8 %RH, ±0.1 K, at 23 °C ±5 K
Range of application: -50…100 °C / 0…100 %RH
| Analog input | ||
| Analog input | 1, freely configurable | |
| Analog input type | 0…10 V, input resistance >50 k
0…24 mA, measurement resistance 412.5 Ω |
|
| Accuracy offset | 0.5 % of current measured value | |
| Differential pressure | PF4 | PF5 |
| Sensor type | Flow sensor | Diaphragm sensor |
| Zero point compensation 2 | Automatic, every 5 ms in the sensor | Automatic, configu- rable via HygroSoft |
| Measurement ranges | ±10 Pa / ±25 Pa /
±50 Pa / ±100 Pa / ±250 Pa / ±500 Pa |
±25 Pa / ±50 Pa /
±100 Pa / ±250 Pa / ±500 Pa |
| Leak rate | 180 µ l/min | 0 µ l/min |
| Accuracy 1 | ±1.0 %FSS | |
| Response time T63 | < 1 s, typical | |
| Ambient pressure dependence | Compensated | None |
| Pressure resistance | 5 bar | 0.7 bar |
| Resolution | 0.01 Pa | |
| Long-term stability 1 | PF4: ±0.05 % FSS/year (typ.) /
±0.1 % FSS/year (max.) |
|
| PF5: ±0.25 % FSS (typ.) per year @ ±250 and ±500 Pa measurement range
±0.3125 % FSS (typ.) per year @ ±100 Pa measurement range ±0.625 % FSS (typ.) per year @ ±50 Pa measurement range ±1.25 % FSS (typ.) per year @ ±25 Pa measurement range |
||
| Ambient pressure sensor | ||
| Absolute accuracy | ±1 hPa (0…65 °C; 950…1100 hPa) max. | |
| Working range – pressure | 300…1100 hPa | |
| Working range – tempera- ture | -5…65 °C | |
1 For maximum accuracy, Rotronic recommends you carry out a zero point compensation after installation and commissioning and repeat this every year. Zero point compensation should be carried out more often in aggressive environments/gas media. See the device manual for more detailed information.
2 Zero point compensation is recommended after every change in position and installation (PF5).Model Chart of Rotronic PF4/5
You can request the necessary certificates, documentation, instructions and user guide for Rotronic PF4/5 using the special form.
You can buy Rotronic PF4/5 in UAE at a price starting from 731 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic PF4/5 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
