Analog probe with NDIR technology for measurement of carbon dioxide (CO2)
Made in Swiss. brand Rotronic, model RMS CCA-S-20X-SET
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

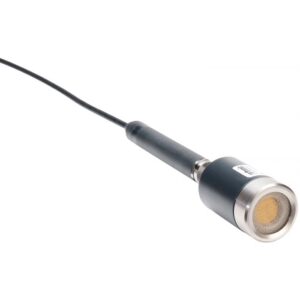

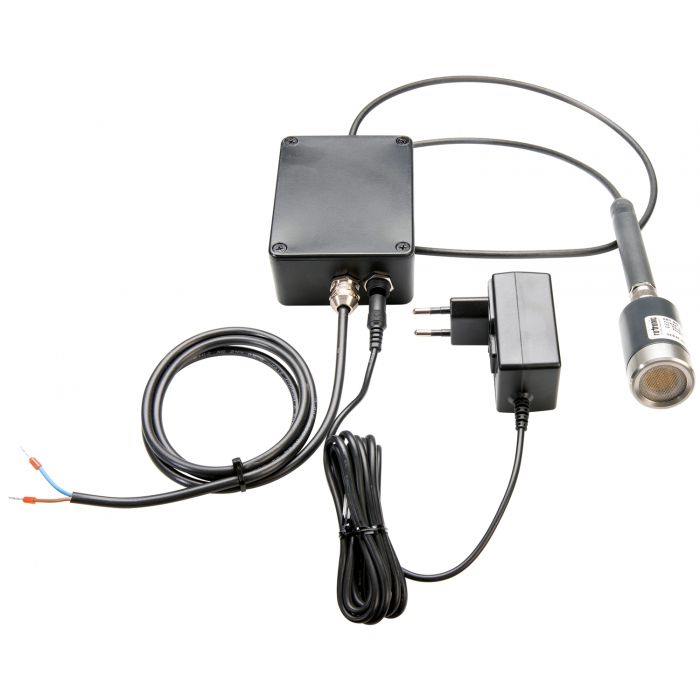

The CCA-S-20X is an analog probe with NDIR technology for measurement of carbon dioxide (CO2) for incubators. Developed with a pyroelectric infrared detector with dual temperature compensation and an integrated semiconductor temperature sensor to maximize accuracy and minimize drift. The signal is converted to 4…20 mA by the converter with power supply (CCA-S-20X-SET).
Compatible with:
Delivery Package
Applications
| Measurement principle | Infrared (NDIR) |
| Measured parameter | Carbon dioxide concentration (%) |
| Accuracy | At 5 % vol. CO2 ±0.15 % CO2 0 … 8 % vol. CO2 ±0.15 % CO2
0 … 20 % vol. CO2 ±0.2 % CO2 |
| Medium | Air & non-aggressive gases |
| Long-term stability | ±0.24 %CO2/year |
| Temperature dependence | ±10 % of measured value |
| Pressure dependence | ±0.15 % of measured value/hPa |
| Measurement range | 0…20 %CO2 |
| Application range | -20…50 °C / 0…100 %RH, 700…1200 hPa |
| Storage conditions | -20…30 °C / 0…95 %RH |
| Startup time | 60 s |
| Power supply | CCA-S-20X: 3…5 VDC / 80 mA
CCA-S-20X-Set: 12 VDC / 0,5 A |
| AC adapter requirements | 100…240 VAC / 50…60 Hz / 0.3 A |
| Output signal | 4…20 mA (CCA-S-20X-SET)
0.4.. 2.0 V (CCA-S-20X only sensor) |
| FDA / GAMP directives | FDA CFR21 Part 11 / GAMP 5 |
| Enclosure material | Polycarbonate (housing) Stainless steel DIN 1.4305 (nut) |
| Fire protection class | Corresponds to UL94-HB |

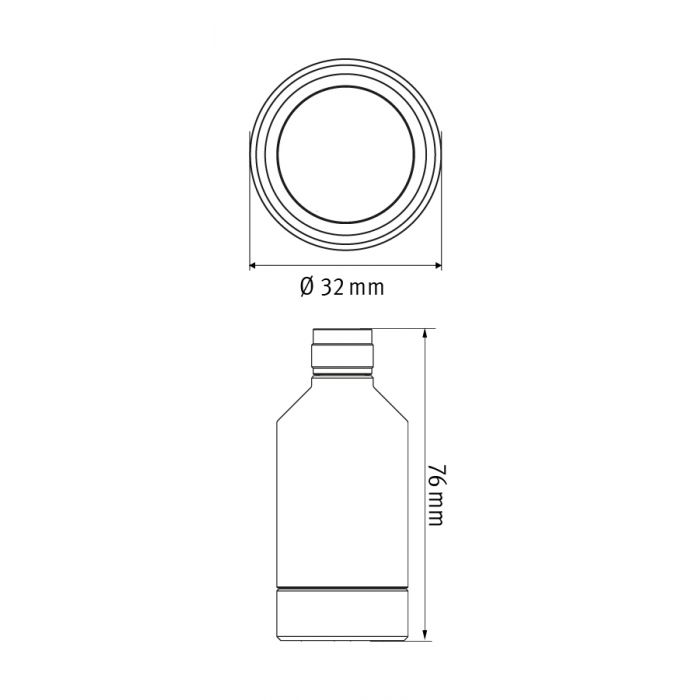

| Dimensions | Sensor: 32 mm x 87 mm
Converter box: 100 mm x 77 mm x 40 mm (LxWxH) |
| IP protection class | IP40 |
| Weight | 55 g sensor
200 g converter box |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS CCA-S-20X-SET using the special form.
You can buy Rotronic RMS CCA-S-20X-SET in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS CCA-S-20X-SET price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Rotronic Monitoring System RMS
