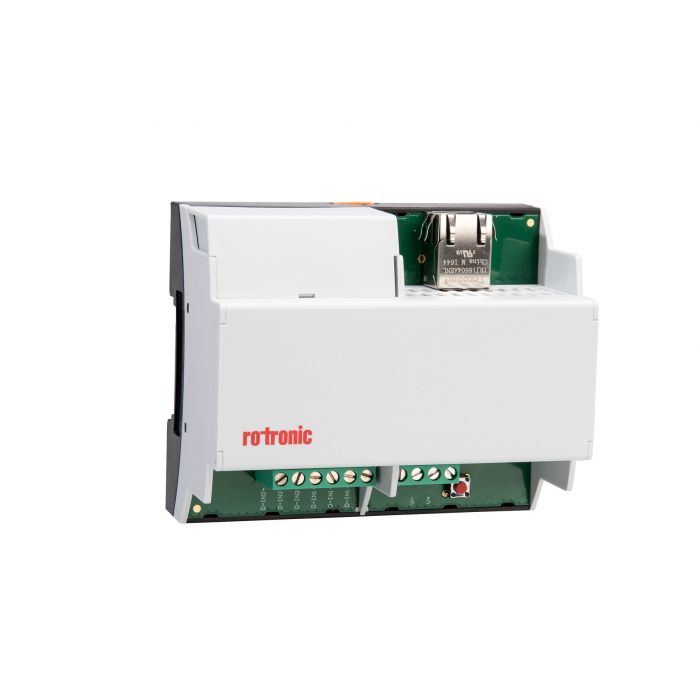

The digital input module stores all measured data on an event basis and sends it to the database via Ethernet.
Made in Swiss. brand Rotronic, model RMS-DI-L-R
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $615
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The digital input module stores all measured data on an event basis and sends it to the database via Ethernet. The minimum pulse time is 100 ms. Should the connection be lost, the module stores the data intermediately to protect data integrity and fills up the data gaps when the connection has been restored. The device has a battery so that logging of measured data is also ensured in the event of a failure in the external power supply.
Compatible with:
Applications
| General specifications | |
| Device type | RMS-DI-L-R |
| Number of inputs | 2 independent digital inputs |
| Range of application | -40..70 °C / 0..100 %RH non-condensing |
| Storage conditions | -40..30 °C / 0..95 %RH |
| Maximum altitude | 2000 m ASL |
| Power supply | 24 VDC ±10 % / <100 mA / PoE: 802.3
af-2003, Class 1 |
| AC adapter requirements | 24 VDC ±10 % / 4 W nominal /<15 W power-limited |
| Battery type | RMS-BAT |
| Battery life | 3 years at 23 °C |
| Device data | |
| Input frequency | Max. 0.833 Hz or 1.2 s |
| Pulse recognition | >100 ms (periodically > 1.2 s) |
| Input circuit | Logic level: 0 V / 5-24 V |
| Trigger threshold: ~3.77 V | |
| Current consumption: <1 mA | |
| Reed circuit | Max. load at input 100 kW |
| Max. cable length at input | <3 m |
| Measurement interval | Event-based & interval (10 s to 15 min.) |
| Storage capacity | 75,000 data points |
| Interface | Ethernet |
| Protocols | HTTP |
| Conformity with standards | |
| FDA / GAMP directives | FDA CFR21 Part 11 / GAMP 5 |
| Housing / Mechanical parts | |
| Housing material | Polycarbonate (PC) |
| Fire protection class | UL94-V0 |

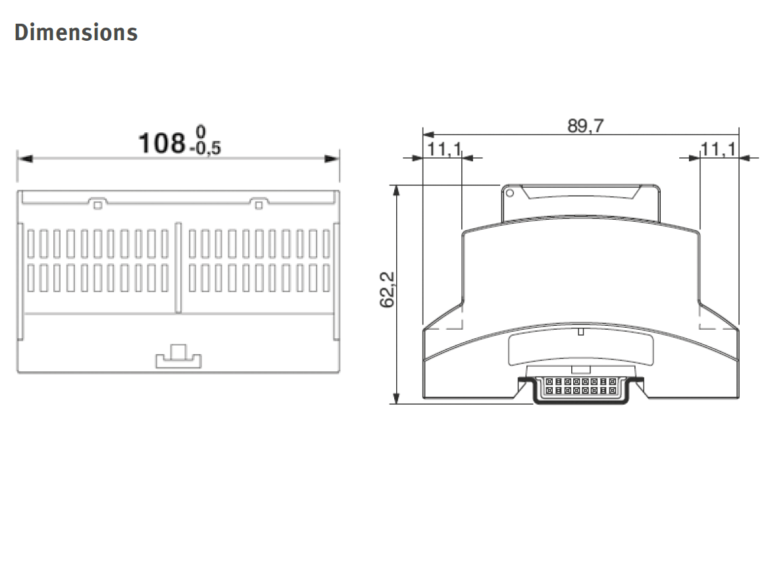

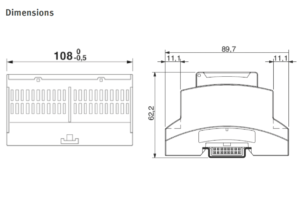

| Dimensions | 89.7 x 62.2 x 108 mm |
| IP protection class | IP20 |
| Weight | 206 g |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS-DI-L-R using the special form.
You can buy Rotronic RMS-DI-L-R in UAE at a price starting from 615 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS-DI-L-R price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Rotronic Monitoring System RMS
