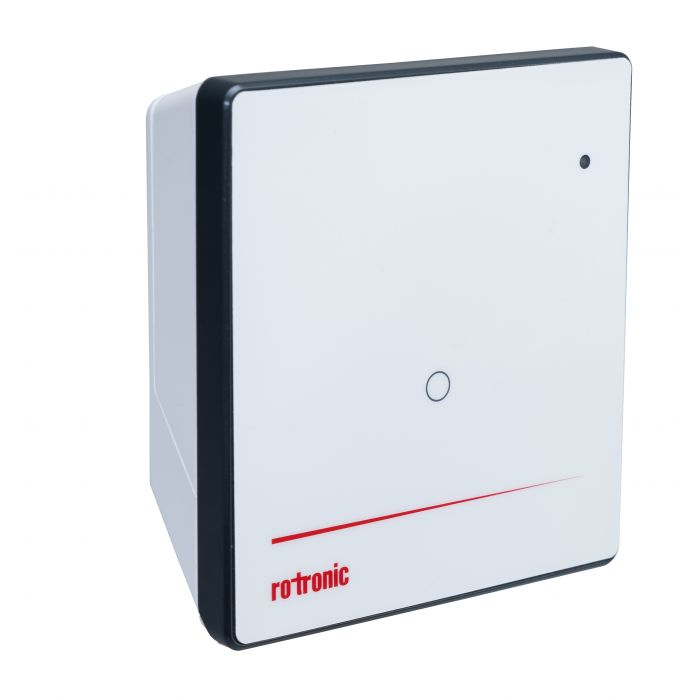

The Gateway is the interface between the wireless data logger and the server software.
Made in Swiss. brand Rotronic, model RMS-GW-868
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $592
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The wireless mini data logger is the low-cost data logger in the Rotronic Monitoring System. Its small housing and wireless interface make it a really flexible data logger. The mini logger is available in various sensor variants: temperature sensor (NTC), external temperature sensor (NTC) & light, voltage measurement, current measurement, or digital switch contact. With this versatility, it can monitor refrigerators and incubators, as well as door contacts and OEM analog devices.
Compatible with:
Applications
| General specifications | ||
| Range of application | -40..70 °C, 0..100 %RH | |
| Storage conditions | -40..30 °C, 0..95 %RH | |
| Maximum altitude | 2000 m ASL | |
| Power supply | 24 VDC ±10 % / <100 mA / PoE: 802.3
af-2003, Class 1 |
|
| AC adapter requirements | 24 VDC ±10 % / 4 W nominal / <15 W power-limited | |
| Device data | ||
| Measurement interval | 10 s to 15 min. | |
| Startup time | < 10 s | |
| Order code | RMS-GW-868 | RMS-GW-915 |
| Interfaces | Ethernet & ISM868 MHz | Ethernet & ISM 915 MHz |
| Indoor wireless range | 20..50 meters | 15..25 meters |
| Protocols | HTTP | |
| Ethernet cable requirement | Min. Cat. 5, SFTP, max. 30 m | |
| Conformity with standards | ||
| FDA / GAMP directives | FDA CFR21 Part 11 / GAMP 5 | |
| Housing / Mechanics | ||
| Housing material | ABS | |
| Fire protection class | UL94 –V2 | |
| Dimensions | 105 x 113 x 38 mm | |
| IP protection class | IP65 | |
| Weight | 200 g | |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS-GW-868 using the special form.
You can buy Rotronic RMS-GW-868 in UAE at a price starting from 592 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS-GW-868 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
