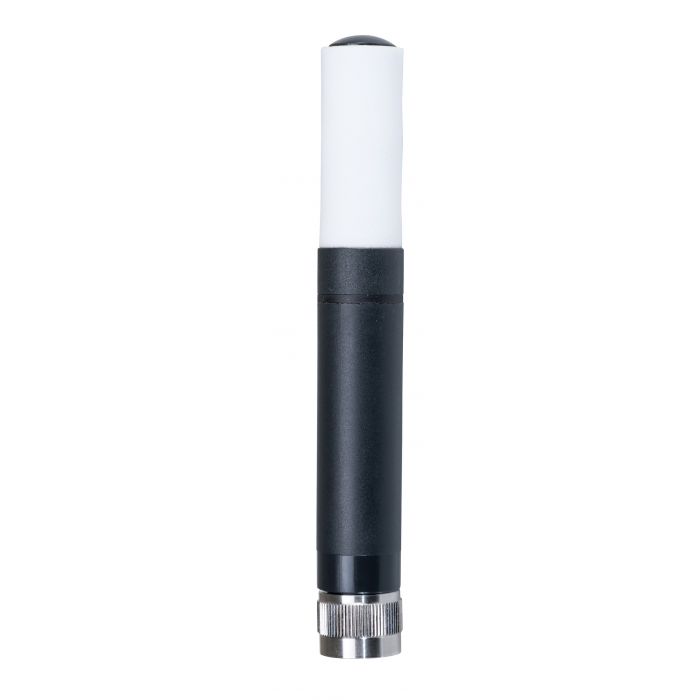

The RMS-HCD-S digital probe is characterized by its high performance. Very low current consumption, the highest accuracy, and measurement results within 50 ms (electronics) are its outstanding features. This is due to the new AirChip4000, which together with the new HYGROMER® HT-1 sensor forms a powerful combination.
Applications
| Humidity sensor | HYGROMER HT-1 |
| Temperature sensor | PT 1000, Class 1/3 B (RMS-HCD-S) PT 100, Class 1/3 B (RMS-HCD-IC) |
| Operating humidity | 0…100 %RH |
| Operating temperature | -40…+85 °C RMS-HCD-S
-40…+85 °C RMS-HCD-IC Electronics -100…200 °C 1 RMS-HCD-IC Sensor head |
| Accuracy @ 23 °C | ±0.8 %RH ±0.1 K |
| Long-term stability | 1 %RH / year |
| Startup time | 50 ms (RMS-HCD-S)
90 ms (RMS-HCD-IC) |
| Measurement interval | 500 ms |
| Response time sensor | t63: <15 s without filter, (temperature and humidity) |
| Maximum wind velocity | 3.5 m/s without filter |
| Supply voltage | 2.8.. 5.5 VDC (RMS-HCD-S)
3.3. 5.5 VDC (RMS-HCD-IC) |
| Current consumption | 0.5 mA (RMS-HCD-S)
<3 mA (RMS-HCD-IC) |
| Protection rating | IP65 (except sensor area) |
| Material | PC, PPS, stainless steel 1.4301 (HCD-SX) PC, PPS, stainless steel 1.4301 (HCD-IC) |
| Digital interface | UART |
| Protocol | Modbus RTU |
| Compatible devices | RMS-LOG-L RMS-LOG-868 RMS-LOG-915 |
| Compliance | GAMP5
FDA 21 CFR Part 11 |
| Order code | Type |
| RMS-HCD-S | Standard probe, black |
| RMS-HCD-S3 | Standard probe, white |
| RMS-HCD-IC102 | Industrial probe, 2 m cable |
Possible filters
| Order code | Filter carrier | Filter element | Pore size | Application range |
| SPA-PCB-PE |
Polycarbonate, black |
Polyethylene, white | 40-50 μm |
-50…100 °C |
| SPA-PCB-PTFE | PTFE, white | 10 μm | ||
| SPA-PCB-WM | Wire mesh 1.4401 | |||
| SPA-PCW-PE |
Polycarbonate, white |
Polyethylene, white | 40-50 μm | |
| SPA-PCW-PTFE | PTFE, white | 10 μm | ||
| SPA-PCW-WM | Wire mesh 1.4401 | |||
| SPA-PE | No filter carrier, only filter | Polyethylene | 40-50 μm | |
| SPA-PTFE | PTFE, white | 10 μm | -100…200 °C |
| Order code | Cable length | Color |
| E2-01A | 1 m | Black |
| E2-02A | 2 m | |
| E3-01A | 1 m | White |
| E3-02A | 2 m |
