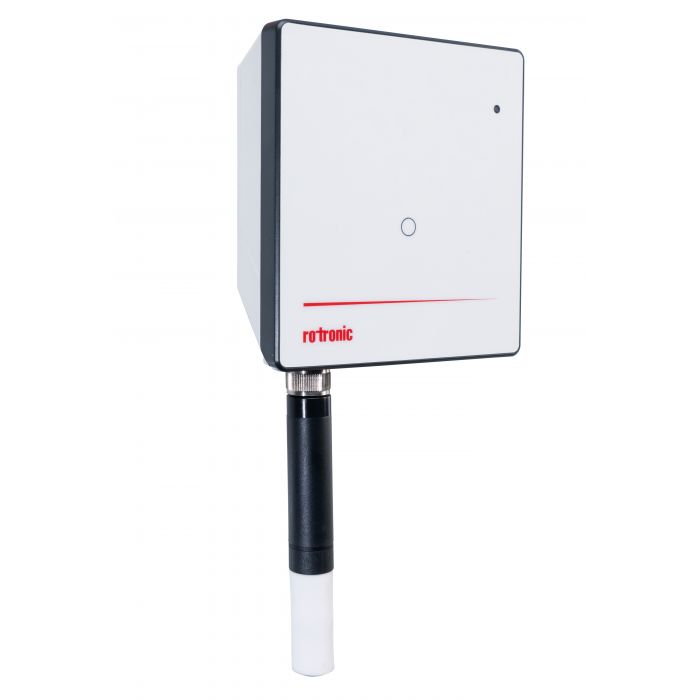

The data logger is the flexible component between the probe and the database in the Rotronic Monitoring System. It stores 44,000 pairs of measured values from the exchangeable HygroClip probe, and transmits them to the RMS database via LAN or wireless link. It guarantees absolute data protection, even if power supply and communications should temporarily break down.
Compatible with:
Applications
| General specifications | |||
| Measured parameters | Humidity & temperature, CO2, differential pressure, LDP | ||
| Range of application | -40..70 °C / 0..100 %RH | ||
| Storage conditions | -40..30 °C / 0..95 %RH | ||
| Maximum altitude | 2000 m ASL | ||
| Power supply | 24 VDC ±10 % / <100 mA / Battery: RMS-BAT
(2xAA, LiSocl2) / PoE: 802.3af-2003, Class 1 |
||
| AC adapter requirements | 24 VDC ±10 % / 4 W nominal /
<15 W power-limited |
||
| Battery life | 3 years (at 23 °C, measurement interval 1 min., HCD-S probe) | ||
| Device data | |||
| Measurement interval | 10 s to 15 min. | ||
| Startup time | < 10 s | ||
| Order code | RMS-LOG-L | RMS-LOG-868 | RMS-LOG-915 |
| Interfaces | Ethernet | ISM 868 MHz | ISM 915 MHz |
| Indoor wireless range | – | 20..50 meters | 15..25 meters |
| Protocols | HTTP / MODBUS TCP | ||
| Ethernet cable requirement | Min. Cat. 5, SFTP, max. 30 m | ||
| Conformity with standards | |||
| FDA / GAMP directives | FDA CFR21 Part 11 / GAMP 5 | ||
| Housing / Mechanics | |||
| Housing material | ABS | ||
| Fire protection class | UL94 –V2 | ||
| Dimensions | 105 x 113 x 38 mm | ||
| IP protection class | IP65 | ||
| Weight | 200 g | ||
