Data logger with two integrated analog-to-digital converters
Made in Swiss. brand Rotronic, model RMS-MADC-868-V
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $301
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

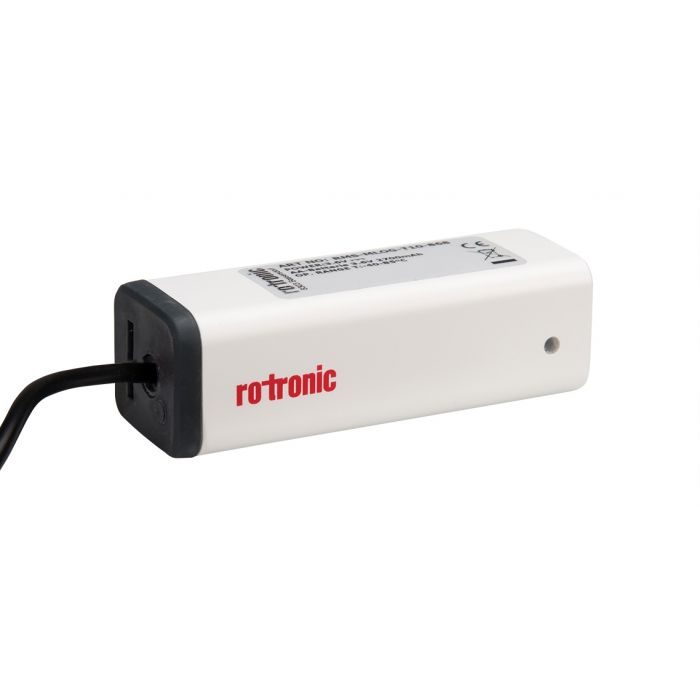

The wireless mini data logger is the low-cost data logger in the Rotronic Monitoring System. Its small housing and wireless interface make it a really flexible data logger. The mini logger is available in various sensor variants: temperature sensor (NTC), external temperature sensor (NTC) & light, voltage measurement, current measurement, or digital switch contact. With this versatility, it can monitor refrigerators and incubators, as well as door contacts and OEM analog devices.
Compatible with
Applications
| General specifications | ||
| Device type | MS-MLOG-XXX-XXX RMS-MDI-XXX
RMS-MADC-XXX-X |
RMS-MLOG-BT-XXX RMS-MLOG-B-XXX |
| Memory size | 10,000 measured values | 13,000 data points |
| Range of application (electronics) | -30…85 °C /
0…100 %RH |
-40…85 °C / 0…100 %RH |
| Battery life @23°C, 1 minute interval | 2.2 years | 2.5 years |
| IP protection class | IP65 | IP30 (B), IP65 (BT) |
| Working range pressure | 300…1100 hPa | |
| Storage conditions | -30…30 °C / 0…95 %RH | |
| Battery | 1x RMS-BAT | |
| Measurement interval | 10 s to 15 min (software dependant) | |
| Wireless specifications | ||
| Wireless interface | ISM 868 MHz | ISM 915 MHz |
| Indoor wireless range | 20…50 meters | 15…25 meters |
| Conformity with standards | ||
| FDA / GAMP directives | FDA 21 CFR Part 11 / GAMP5 | |
| Housing / Mechanics | ||
| Housing material | ABS | |
| Dimensions | 83 x 29 x 29 mm | |
| Fire protection class | UL94-V2 | |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS-MADC-868-V using the special form.
You can buy Rotronic RMS-MADC-868-V in UAE at a price starting from 301 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS-MADC-868-V price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
