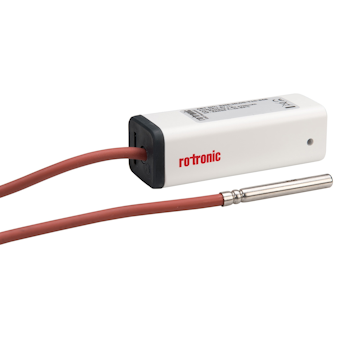

Rotronic T10 Monitoring System Temperature Probe

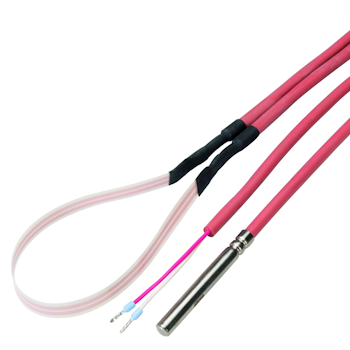

T10-XXXX NTC Temperature Probe

NTC Sensor
No influence from the lead
High temperature sensitivity

			int(21682)
NULL

Made in Swiss. brand Rotronic, model T10

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

Data Sheet Rotronic T10

price По запросу

Available

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of Rotronic T10

The T10 temperature sensors are NTC (Negative Temperature Coefficient) thermistors, meaning that the resistance of the NTC decreases with increasing temperature. The T10 temperature sensors are compatible with the RMS-MLOG-T10-868/915 data loggers. The data logger temperature range is limited to -35…80°C. The RMS temperature portfolio covers a wide range of applications, from the coldest such as liquid nitrogen tanks and cryogenic freezers, refrigerators and cold rooms to hotter ones such as water baths, incubators, ovens and autoclaves.

Applications

Dry ice
Freezers
Water baths

Technical specifications of Rotronic T10

Stored in RMS software as:	T10-001	T10-002/6	T10-003/4	T10-003/4	T10-005	T10-002/6
Application	Cryotechnology	Freezers, dry ice…	Standard	Piping	Freezers, dry ice…	Standard
Cable material	PTFE	Silicone	Silicone	Silicone	PTFE	Silicone
Sensor application range	-196…-90 °C	-80…150 °C 1	-50…120 °C 1	-50…120 °C 1	-90…50 °C	-80…150 °C 1
Calibration range 2 (look up chart)	-200…-90 °C	-80…200 °C	-50…200 °C	-50…200 °C	-90…50 °C	-80…200 °C
Cable application range	-190…260 °C	-50…200 °C 1	-50…200 °C 1, 3	-50…200 °C 1	-190…260 °C	-50…200 °C 1
IP protection	IP65	IP65	IP65	IP65	IP68	IP65
Cable length (mm)	2000	2000	2000	2000	4000	4000
Cable diameter (mm)	4	6	6	6	4	6
Probe head material	SS 316	VA4 1.4571	VA4 1.4571	Brass	VA4 1.4571	VA4 1.4571
Probe length (mm)	50	50	50	50	50	50
Probe diameter (mm)	6 – 6.15	6 – 6.15	6 – 6.15	Duct wrap	6 – 6.15	6 – 6.15
Sensor	NTC1k	NTC10K	NTC10K	NTC10K	NTC1k	NTC10K
Accuracy 2
-196…-90 °C	±10 °C
25 °C		±0,2 °C	±0,4 °C	±0,4 °C		±0,2 °C
-80…-30 °C		±1 °C				±1 °C
-30…40 °C		±0,5 °C				±0,5 °C
40…70 °C		±1 °C				±1 °C
70…150 °C		±3 °C				±3 °C
-50…0 °C			±1 °C	±1 °C
0…30 °C			±0,5 °C	±0,5 °C
30…60 °C			±1 °C	±1 °C
60…90 °C			±1,5 °C	±1,5 °C
90…120 °C			±3,2 °C	±3,2 °C
-80…50 °C					±1 °C
-90…-80 °C					±1.5 °C
R25 & B: -200…-165 °C	54 & 666
R25 & B: -185…-145 °C	26 & 776
R25 & B: -145…-90 °C	8 & 1045
R25 & B: -200…-120 °C	21 & 787
R25 & B: -80…-40 °C		13000 & 3500				13000 & 3500
R25 & B: -40…-30 °C		9950 & 3800				9950 & 3800
R25 & B: -10…150 °C		10100 & 4030				10100 & 4030
R25 & B: -50…-10 °C			11100 & 3610	11100 & 3610
R25 & B: -10…-50 °C			9800 & 3890	9800 & 3890
R25 & B: 50…120 °C			10300 & 4065	10300 & 4065
R25 & B: -90…-40 °C					1500 & 2900
R25 & B: -60…0 °C					1100 &3170
R25 & B: -20…50 °C					100 & 3400

Expand Table

Down to -80 °C possible, but the cable could break on movement.
Accuracy is only guaranteed in the sensor application range, applications outside the range can cause drift or damage. To improve the accuracy, it is possible to carry out an adjustment to improve the measurement accuracy when using the data logger and NTC.
Ribbon cable application range / dimensions: -60…105 °C / 200 x 15 mm (L x W)
