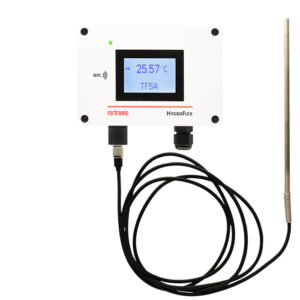

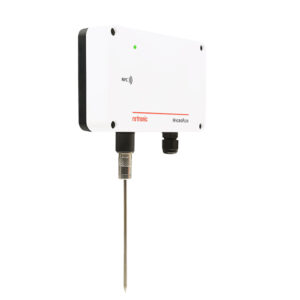

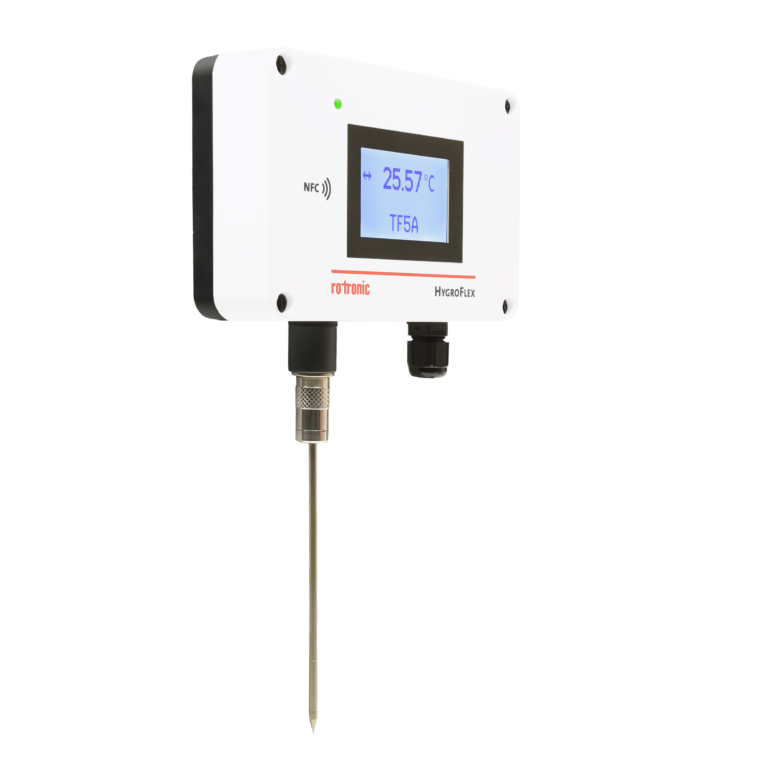

The advanced HygroFlex5 temperature series is compatible with all Rotronic and third-party PT100 probes featuring a binder 4-pole connector, providing a broad range of temperature options and high accuracy. The TF5A temperature transmitters are available in wall-mounted versions, with or without a display, and offer a wide range of adjustable temperature scaling via NFC.
Applications
Monitoring storage temperature of pharmaceutical drugs and vaccinations
Pharmaceutical and industrial manufacturing
Production, storage and drying processes
Features
| TF5A-2 2-wire |
TF5A-3 / TF5A-D 3/4-wire |
|
| Temperature probe | PT100 Class A probes, various types | |
| Accuracy @ 23°C | ± 0.1°C | |
| Initialization time | Typically, 5 sec. | |
| Measurement interval | 1 sec. | |
| Measurement range | -200…600 °C (probe dependent) | |
| Range of applications | -10…60 °C with display -40…80 °C without display |
|
| Display | Resolution to 2 decimal places | |
| Output signals analog | 4…20 mA | Freely scalable 0…1/5/10 V, 0…20, 4…20 mA |
| Resolution analog output | 15 Bit | |
| Output signal digital | – | RS-485 signals on screw terminal |
| Cable connections 1 x M12, screw terminals | ||
| Power supply | 10…28 VDC | 18…36 VDC |
| Circuit type | 2-wire | 3 /4 wire |
| Current consumption | 2x23mA | max.80 mA (when both outputs are connected) |
| Load per analog output | Max. 500 Ω | |
| Interface | UART, NFC and USB | |
| Software | HygroSoft | |
| Housing material | PC-ABS | |

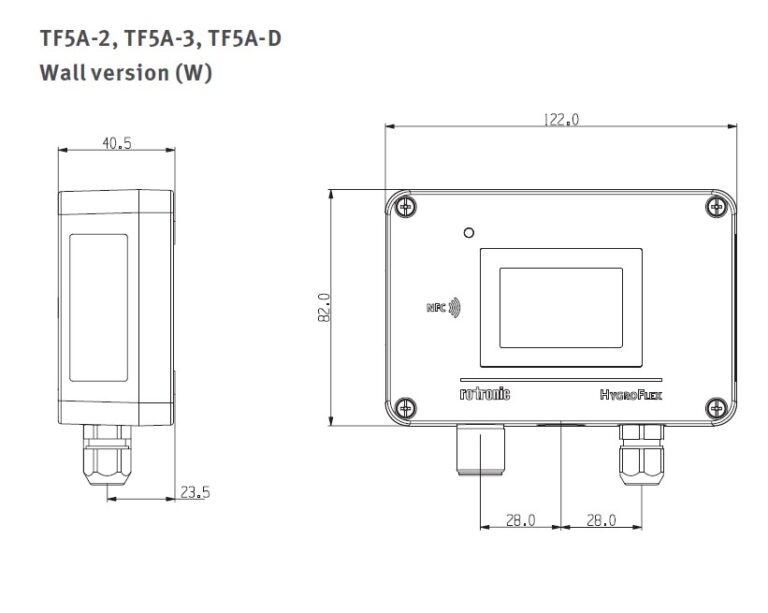

| Dimensions | 122 x 82 x 40.5 mm | |
| Weight | 204 g | |
| IP-Protection | IP65 | |
| Soldering material | Lead free (RoHS-Directive 2011/65/ EU) | |
| Standards | CE Conformity 2014/30/EU | |
| Conformity | GAMP5 | |
Accuracy of the measurement system
| Transmitter: TF5A Temperature dependence of the transmitter electronics with a PT100 probe measuring 100°C | |
| Accuracy at -40°C ambient temperature | ± 0.3 °C |
| Accuracy at -20°C ambient temperature | ± 0.2 °C |
| Accuracy at 0°C ambient temperature | ± 0.1 °C |
| Accuracy at 23°C ambient temperature | ± 0.05 °C |
| Accuracy at 40°C ambient temperature | ± 0.15 °C |
| Accuracy at 60°C ambient temperature | ± 0.25 °C |
| Accuracy at 80°C ambient temperature | ± 0.3 °C |
| PT100 temperature probes: AC1900 / AC1903 / AC1904 / AC1909 /AC1913-A / AC1916-AT | |
| PT100 temperature probes accuarcy | PT100 Class A (DIN EN 60751) |
Example at different temperatures
| Use of AC1900 at 0 °C and TF5A at 23 °C | |
| AC1900 accuracy at 0 °C | ± 0.15 °C |
| TF5A electronic measurement accuracy at 23 °C | ± 0.01 °C |
| Total accuracy at 23 °C | ± 0.16 °C¹ |
| Use of AC1900 at 23 °C and TF5A at 40°C | |
| AC1900 accuracy at 23 °C | ± 0.2 °C |
| TF5A electronic measurement accuracy at 40 °C | ± 0.08 °C |
| Total accuracy at 40 °C | ± 0.28 °C¹ |
| Use of AC1900 at -50 °C and TF5A at 0°C | |
| AC1900 accuracy at -50 °C | ± 0.25 °C |
| TF5A electronic accuracy at 0 °C | ± 0.06 °C |
| Total accuracy at 0 °C | ± 0.31 °C¹ |
¹ To calculate the overall accuracy of the transmitter, all variables must be added together.
Note: To improve the total measuerement accuracy of the transmitter and PT100 probes, it possible to carry out an customer adjustment.
Probes for temperature transmitters
| Order Code | Type | Accuracy | Application Range | Cable / Operating range at connector |
|---|---|---|---|---|
| AC1900 | Fixed probe, 100 mm x 3 mm | PT100 Class A (DIN EN 60751) | -50…300 °C | -40…105 °C without cable |
| AC1903 | Cable probe, 200 x 6 mm, not waterproof | -50…350 °C | -40…105 °C 2 m, thermoplastic cable | |
| AC1904 | Cable probe, 50 mm x 6 mm, waterproof | -50…105 °C | -40…105 °C 2 m, thermoplastic cable | |
| AC1909 | Fixed probe, 100 mm x 4.5mm, air measurement | -50…150 °C | -40…105 °C without cable | |
| AC1913-A | Kapton foil probe, 20 x 15 x 2 mm | -50…200 °C | -40…105 °C 1 m, four PFA wires | |
| AC1916-A-T | Cable probe, 60 mm x 6 mm, waterproof high temperature | -100…250 °C | -40…85 °C 2 m PTFE cable |
| Photo | Model | Description |
|---|---|---|
|
NFC-USB-READER | The Temperature Transmitter TF5A devices are equipped with an NFC-interface1 through which the device can be configured. The NFC-interface can be accessed by means of a mobile phone or a computer equipped with an NFC reader. The NFC-USB-READER has an USB plug to connect the Reader with a Computer and requires no further configuration. The transmitter is compatible with HygroSoft software only. |
