The Radar Level Meters of CW COMPACT/REMOTE WAVE 26 GHz series are excellent devices for no contact level measurement. The microwave impulses, emitted by the radar’s antenna, travel at speed of light and a part of their energy, reflected by the surface of the medium to be measured, is received by the same antenna. The period of time (flying time) between the emission and the arrival of the impulses, is proportional to the existing distance between the antenna and the surface of the medium to be measured.

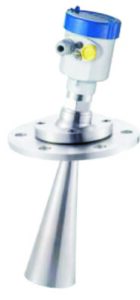

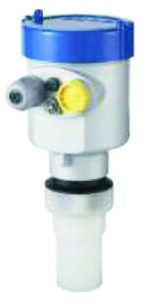

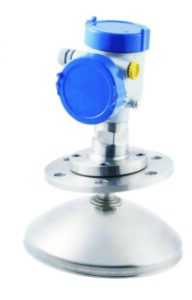

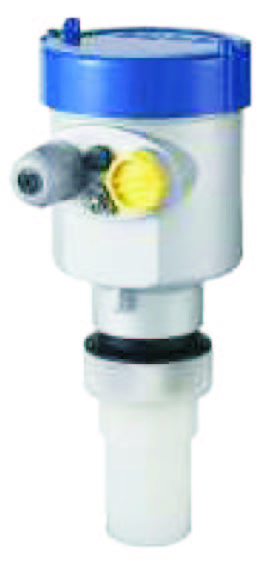

Made in India. brand Spink Controls, model SC/L-1101
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The electromagnetic wave travels at a very high speed (nanosecond), so it is difficult to identify it: CW COMPACT/REMOTE WAVE 26 GHz Radar Level Meters, thanks to their integrated management system, use a suitable demodulation technology that allows them to identify the period of time between the emission of the impulses and their corrected reception and, consequently, determine and measure the level. The Alphanumeric Display allows the user not just to enter the data for the level measurement, but even to display and isolate false echoes.
CW_WARE is a software for the configuration and calibration of the units with a PC is available too, it has HART communication protocol and it is used with a standard HART MODEM (mandatory).
An advanced microprocessor and the “EchoDiscovery” technology make the device suitable for measurements in critical areas with hard conditions, such as high temperatures and high pressure. The function “False Echo Storage” identifies the correct echo, even if there is a false echo: in this way a correct measurement is gained. An integrated temperature sensor compensates the temperature in real time. The Radar Level Meters can be installed both in metallic or non metallic tanks; their use is not harmful to humans or environment.
Remote Electronics RU: Housings:
 |
 |
 |
 |
 |
 |
 |
 |
|
| Type | E1 | E2 | F | G | H | I | J | K |
| Material | SS 316L | PTFE | PP | SS 316L | ||||
| Pressure | -1…40 bar | -1…3 bar | Normal Pressure | -1…40 bar | -1…5 bar | -1…40 bar | -1…40 bar | |
| TEMP in °C | -60..+130 | -60..+250 | -40..+130 | -40..+80 | -60..+150 | -60..+130 | -60..+250 | -60..+400 |
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/L-1101 using the special form.
