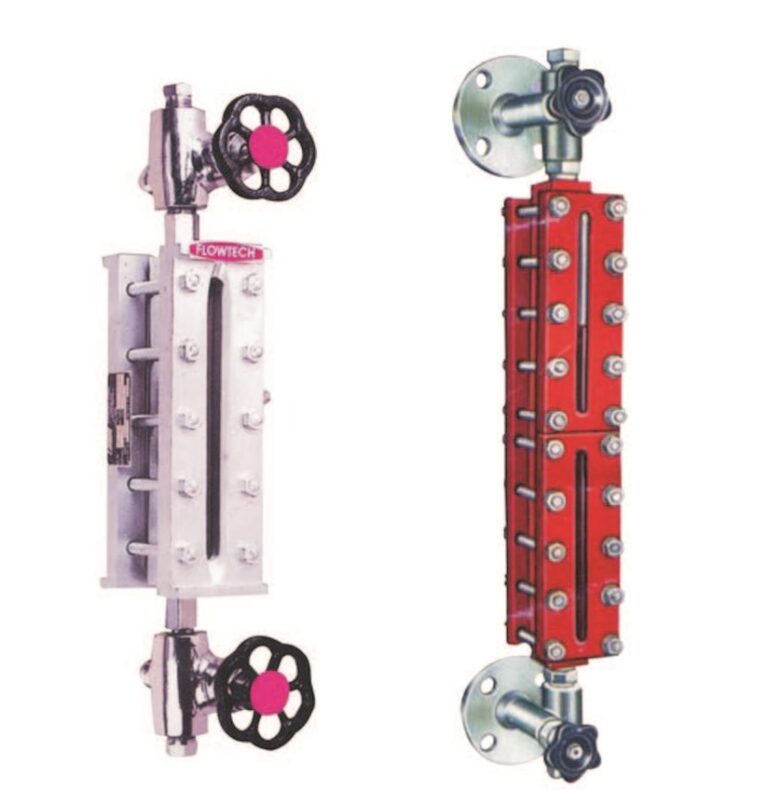

Reflex level gauges are designed to detect the difference in refractive index of vapor and liquid and level detection and can be used in a number of process applications. This glass is flat on the outside and on the inside has a series of prism grooves that face the vapor and liquid space.
Made in India. brand Spink Controls, model SC/RLG/401
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Gauge glass | Toughened borosilicate (30W) or (34W) |
| Liquid chamber | CS / MS / SS 304 / SS 316 |
| Cover plate | CS / MS / SS 304 / SS 316 |
| Process connection MOC | CS / CS A105 / SS 304 / SS 316 |
| Process connection size | ¾” or 1″ x ASME 150#, 300#, 600# RF |
| Process connection orientation | Rear-rear |
| Isolation valve | CS A105 or SS316 x offset needle valve |
| Vent | ½” NPT |
| Plug drain | ½” NPT globe, gate, or needle valve |
| CC distance | Up to 1000 mm (otders on request) |
| Calibrated scale | Aluminum / SS304 |
| Max. operating temperature | 243°C |
| Operating pressure | Up to 32 kg/cm² |
| Test pressure | Up to 64 kg/cm² |
| Gasket | CAF / Graphoil reinforced SS 304 / 316 |
| Bolts & nuts | A193, Gr. B7, A194 Gr. 2H |
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/RLG/401 using the special form.
You can buy Spink Controls SC/RLG/401 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Spink Controls SC/RLG/401 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
