The S335 IoT Gateway is the central hub for your compressed air monitoring system. Designed to bridge the gap between field sensors and advanced monitoring software, it ensures seamless data collection and distribution. The S335 supports multiple sensors, allowing up to 16 Modbus/RTU connections, making it ideal for monitoring small and large systems alike.
Made in Germany. brand SUTO, model S335
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $708
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The S335 IoT Gateway is the central unit of your compressed air monitoring system. Designed to bridge the gap between field sensors and advanced monitoring software, it ensures seamless data collection and distribution. The S335 supports multiple sensors, allowing up to 16 devices to be connected via Modbus/RTU, making it ideal for monitoring both small and large systems.
Thanks to the built‑in web server and remote access via 4G, users can monitor and configure system parameters from anywhere. The gateway’s powerful power supply allows connected devices to be powered directly, simplifying installation. The S335 is a versatile solution for optimising compressed air systems.
By connecting a 4G/LTE modem to the designated M12 port, sensor data from the S335 can be monitored remotely via SUTO S4M‑SaaS.

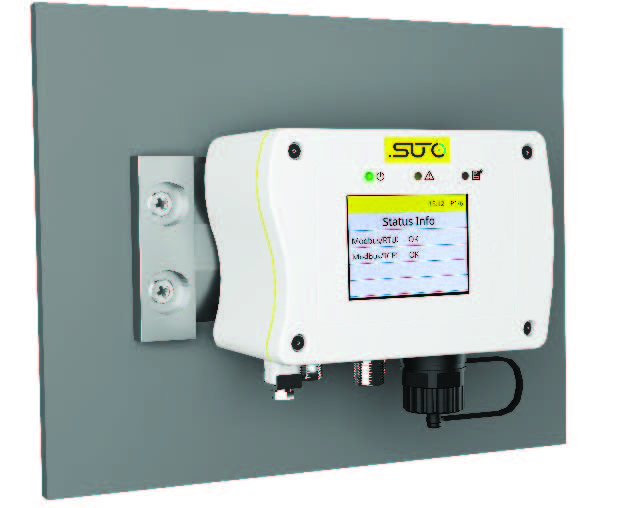

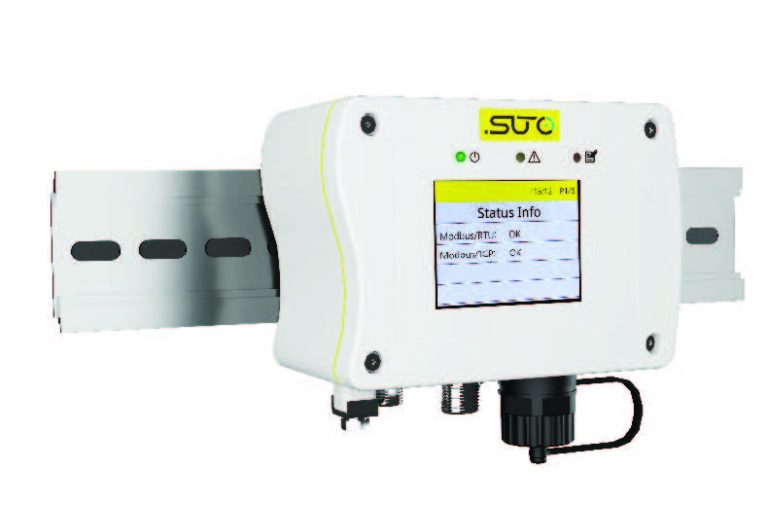

The S335 features a compact design that allows the device to be mounted on a wall or on a 35 mm DIN hat rail.
Connect all your compressed air devices
SUTO Modbus/RTU Sensor Input
The S335 supports input from Modbus/RTU sensors. To properly connect Modbus/RTU sensors to an RS‑485 bus system, it is recommended to daisy‑chain the sensors to one of the inputs. For this purpose, SUTO offers an RS‑485 splitter to simplify the wiring. Using this method, users can connect up to 16 sensors to the master input, making it highly versatile and allowing entire plants to be monitored (additional power supplies for field devices may be necessary).
Power your sensors directly with the S335 Gateway
The S335 Gateway offers seamless integration with external power sources, allowing you to power connected sensors directly without the need for separate power supplies for each device. This streamlined approach significantly reduces installation complexity and increases the flexibility of your setup.
With support for up to 72 Watts of external power, the S335 delivers a robust 65 Watts to connected sensors to ensure optimal performance. Meanwhile, the gateway itself consumes minimal power – just 7 Watts – making it an energy‑efficient choice for your system.
Third‑Party Sensor and Field Device Support
By relying on the industry standard Modbus/RTU protocol, the S335 supports third‑party sensors to be easily integrated into the monitoring system. Field devices can be easily set up using the web browser‑based S4C‑Web, allowing third‑party sensors to be added within seconds.
Benefits
Features
| GENERAL DATA | |
| Data Logger | |
| Operating temperature | 0 … +50°C |
| Housing material | PC+ABS |
| Protection class | IP65 |

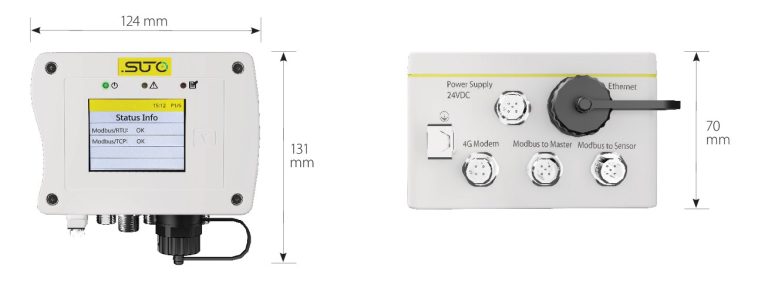

| Dimensions | 124 x 102 x 70 mm |
| Display | 2.4″ color (640 x 480) graphic display, 1 touch button |
| Weight | 0.4 kg |
| Electrical data | |
| Power supply | 24 VDC, 72 W |
| Sensor supply | 24 VDC, 65 W |
| Input signals | |
| Digital input | Mobus/TCP 16 x RS-485 Modbus RTU Sensors |
| Output signals | |
| Interface | Ethernet (Modbus/TCP), RS-485 (Modbus/RTU), USB-C port |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| D500 0336 | S335 IoT Gateway with display, 16x Modbus/RTU input, Ethernet, RS-485, USB-C, M12 connector for 4G modem, M12 connectors for Sensors. Supply voltage 24 VDC min.7 W / max. 72 W (Power supply not included) | Delivery time from 12 weeks | from 708$ |
-
+
|
|
| A4602 | Option: No mounting | Delivery time from 12 weeks | On request |
-
+
|
|
| A4604 | 35 mm DIN rail mounting plate | Delivery time from 12 weeks | from 12$ |
-
+
|
|
| A553 0104 | Sensor cable 5m with M12 connector, open wires, AWG24 (0.2 mm2) | Delivery time from 12 weeks | from 35$ |
-
+
|
|
| A553 0105 | Sensor cable 10m with M12 connector, open wires, AWG24 (0.2 mm2) | Delivery time from 12 weeks | from 58$ |
-
+
|
|
| A553 0165 | Sensor cable, 5 pole, AWG24 (0.2 mm2), 50 m | Delivery time from 12 weeks | from 81$ |
-
+
|
|
| A553 0166 | Sensor cable, 5 pole, AWG24 (0.2 mm2), 100 m | Delivery time from 12 weeks | from 151$ |
-
+
|
|
| A553 0167 | RS-485 cable, 4 pole twisted pairs, AWG24 (0.2 mm2), 50 m | Delivery time from 12 weeks | from 104$ |
-
+
|
|
| A553 0168 | RS-485 cable, 4 pole twisted pairs, AWG24 (0.2 mm2), 100 m | Delivery time from 12 weeks | from 197$ |
-
+
|
|
| A554 3310 | RS-485 splitter T, with 3 x M12 connectors to connect RS-485 devices to a bus | Delivery time from 12 weeks | from 81$ |
-
+
|
|
| C219 0055 | M12 connector with RS-485 termination resistor, 120 Ω, for Modbus daisy chain termination | Delivery time from 12 weeks | from 23$ |
-
+
|
|
| A554 0011 | RS-485 Repeater | Delivery time from 12 weeks | from 568$ |
-
+
|
|
| A554 0331 | RS-485/USB converter | Delivery time from 12 weeks | from 348$ |
-
+
|
|
| A1670 | USB 4G dongle, including S4A software | Delivery time from 12 weeks | from 93$ |
-
+
|
|
| A554 0131 | "USB 4G Dongle protection case, with extension cable 2m And M12 Connector" | Delivery time from 12 weeks | from 46$ |
-
+
|
