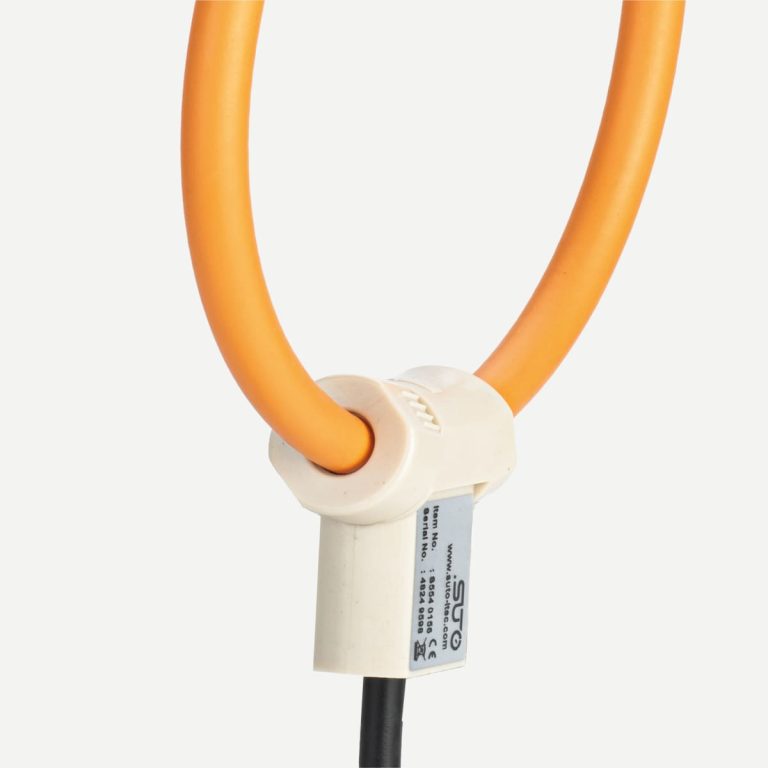

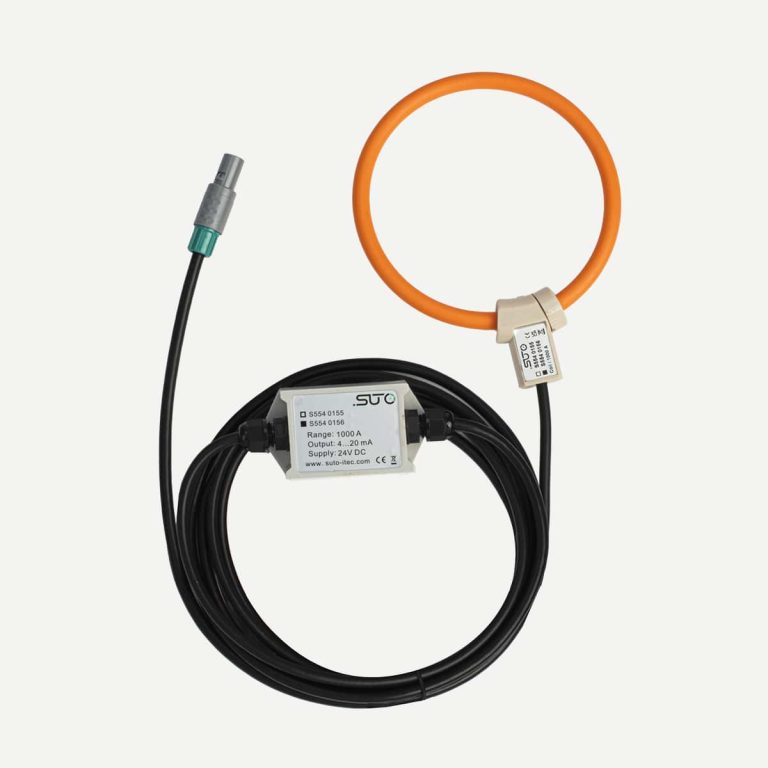

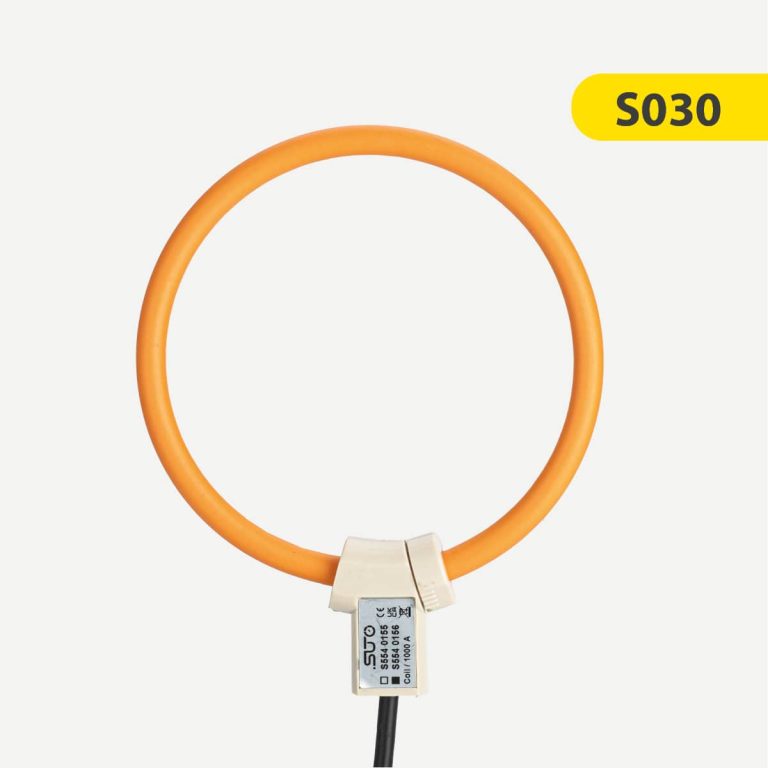

The SUTO current clamp sensor is an AC RMS current sensor composed of a flexible active part (Rogowski coil model) connected to a compact digital converter, capable of measuring the current carried on a power conductor up to a value of 1000 A AC.
The digital converter supplies an output of 4 … 20 mA DC in linear proportion to the measured current. It comes with a wide measuring range and high accuracy.
Made in Germany. brand SUTO, model S030
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $244
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The SUTO current clamp sensor is an AC RMS current sensor composed of a flexible active part (Rogowski coil model) connected to a compact digital converter, capable of measuring the current carried on a power conductor up to a value of 1000 A AC.
The digital converter supplies an output of 4 … 20 mA DC in linear proportion to the measured current. It comes with a wide measuring range and high accuracy.
Applications
By measuring the current of a symmetric power consumer on one phase, compressed air experts can calculate the power consumption of the compressors without the need of measuring voltage additionally.This offers an analysis of the compressor and allows judging the efficiency of the system.
Features
| MEASUREMENT | |
| Current | |
| Accuracy | 0.5% of reading + 0.2% of range |
| SIGNAL INTERFACE & SUPPLY | |
| Analog output | |
| Signal | 4 … 20 mA 3-wire |
| Scaling | 4 mA = 0A AC, 20 mA = 1000A / 3000 A AC |
| Load | Max. 300 Ohm |
| Supply | |
| Voltage supply | 10 – 32 VDC |
| Current consumption | Max. 30 mA |
| Data interface | |
| Connection | open wire ends / ODU connector |
| GENERAL DATA | |
| Miscellaneous | |
| Protection class | IP67 |
| Approvals | CE |
| Operating conditions | |
| Ambient temperature | 0 … +80 °C |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| S554 0155 | S030 Electrical Current Transmitter, 10...1000 A, 100 mm diameter, 4 … 20 mA output, 2 m cable, open wire ends | Delivery time from 12 weeks | from 244$ |
-
+
|
|
| S554 0156 | S030 Electrical Current Transmitter, 10...1000 A, 100 mm diameter, 4 … 20 mA output, 2 m cable, including connector to S551-P6 | Delivery time from 12 weeks | from 244$ |
-
+
|
|

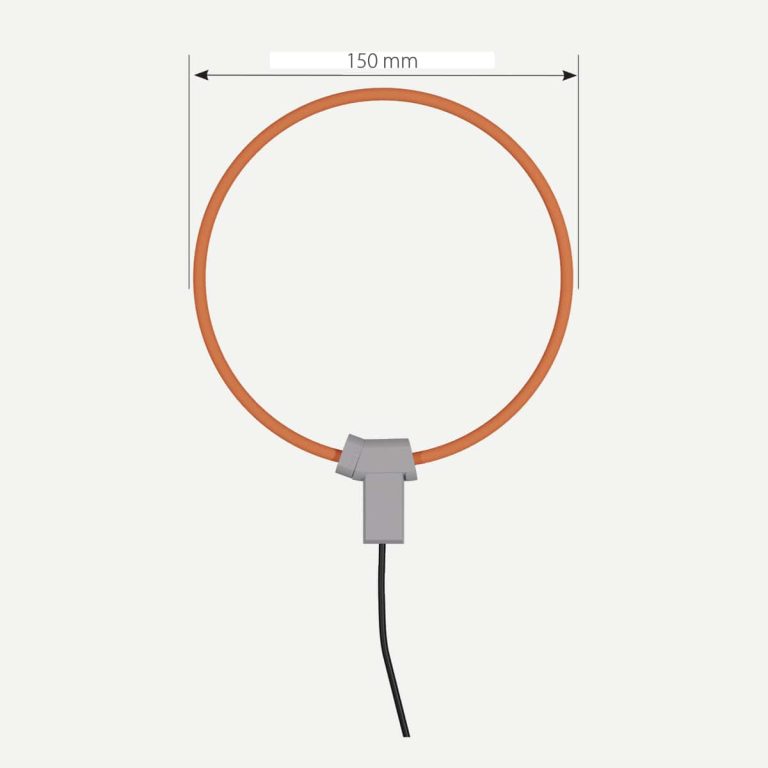

| S554 0157 | S030 Electrical Current Transmitter, 30...3000 A, 150 mm diameter, 4 … 20 mA output, 2 m cable, including connector to S551-P6 | Delivery time from 12 weeks | from 255$ |
-
+
|
|
| S554 0158 | S030 Electrical Current Transmitter,30...3000 A, 150 mm diameter, 4 … 20 mA output, 2 m cable, open wire ends | Delivery time from 12 weeks | from 255$ |
-
+
|
|
| S604 0102 | Temperature probe Pt 100 class A with cable 5 m, tube 300 mm | Delivery time from 12 weeks | from 174$ |
-
+
|
|
| S604 0105 | Temperature probe Pt 100 class A with cable 5 m, tube 150 mm | Delivery time from 12 weeks | from 151$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S030 using the special form.
