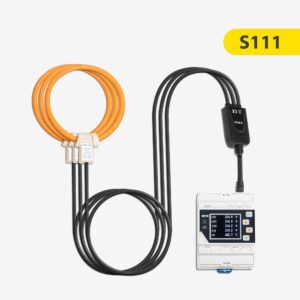

The S111 Three-Phase Multi-Functional Smart Meter ensures accurate and reliable power and energy monitoring in industrial environments. Traditional power meters often rely on estimations, but the S111 takes a different approach by measuring voltage and current on all three phases in real time. This results in highly precise readings and more reliable data.
This level of precision allows businesses to monitor and optimize their power consumption more effectively, reducing waste and improving overall energy efficiency.
Made in Germany. brand SUTO, model S111
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $232
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The S111 three-phase multifunctional smart meter provides reliable and highly accurate monitoring of power and energy consumption for industrial applications. It is precisely this level of accuracy that enables businesses to more effectively monitor and optimize energy consumption, reducing losses and improving overall energy efficiency.
The S111 connects effortlessly to existing industrial networks via Modbus/RTU, ensuring compatibility with a wide range of monitoring and control systems. This ensures compatibility with a wide range of industrial monitoring and control systems, enabling real-time tracking and analysis of power usage.
The device is particularly well-suited for industries that rely on consistent and efficient energy management, such as manufacturing, HVAC, and renewable energy applications.

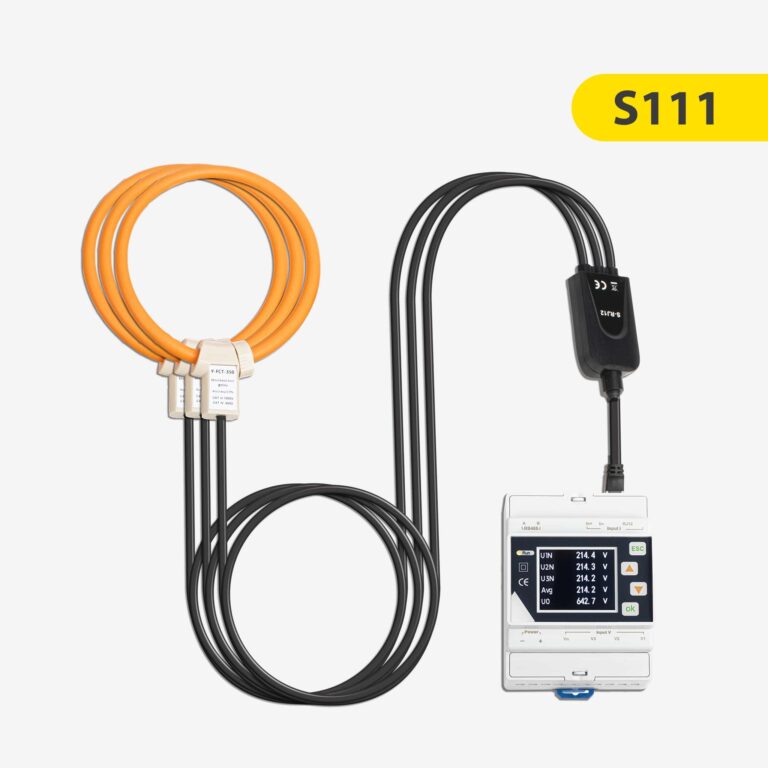

Built for easy installation, the S111 fits neatly onto DIN rails in control cabinets, saving space while maintaining robust performance. The inclusion of Rogowski coil technology simplifies the current measurement process, ensuring high accuracy without requiring complex wiring setups. Additionally, the device’s robust construction and IP20 protection class guarantee long-term reliability even in demanding industrial conditions.
Paired with the S551 Portable Data Logger and the S430 Pitot-Tube Flow Meter, it offers a compact and flexible way to measure power and flow on-site.
The S111 Smart Meter is a versatile solution for energy monitoring across multiple industries:
Features
| Signal / Interface & Supply | |
| Electrical Data | |
| Power supply | 18 – 36 VDC, 3.5 VA |
| Input Signals | |
| Phase voltage | L1, L2, L3, N, max 720 VAC |
| Current sensor | 3 x Rogowsky coils, integrated type, RJ12 |
| Output Signals | |
| Interface | Modbus/RTU RS 485 |
| General data | |
| Miscellaneous | |
| Protection class | IP20 |

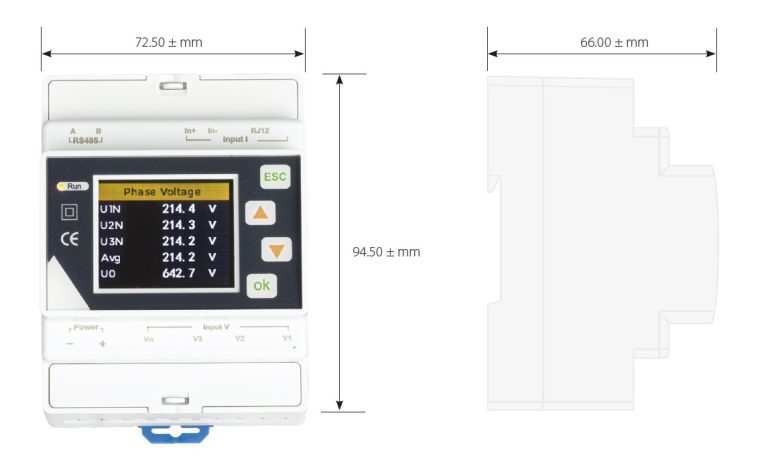

| Dimensions | 95 x 73 x 66 mm |

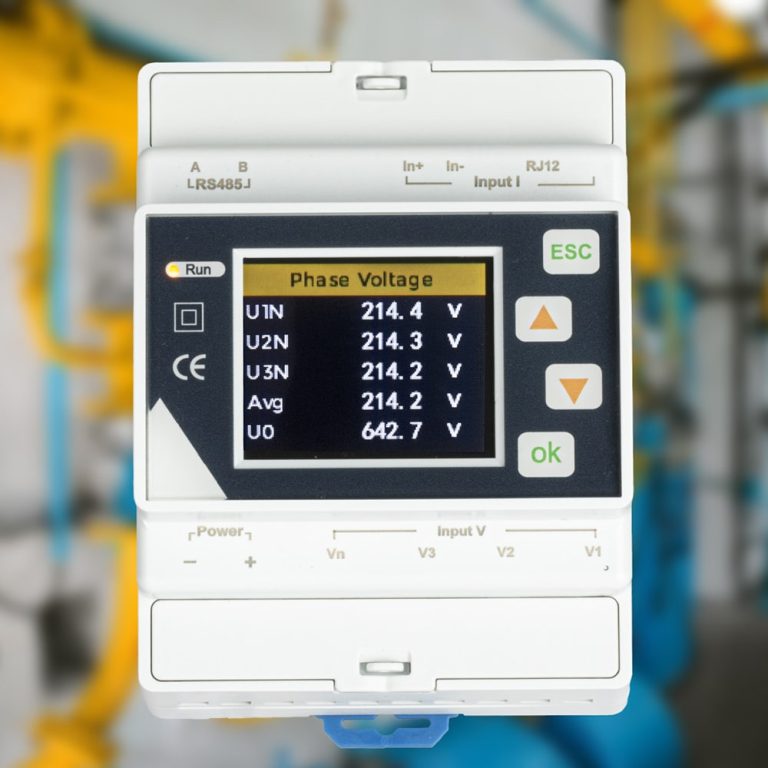

| Display | 1.77″ color (TFT screen display) |
| Weight | 0.260 kg |
| Operating conditions | |
| Operating temperature | -25°C … +60°C |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| D554 0131 | S111: Power and Energy Meter, DIN rail, Modbus/RTU, 18...36 VDC supply | Delivery time from 12 weeks | from 232$ |
-
+
|
|
| S554 0143 | S111: Set of 3 x Electrical Current Transmitter, Rating: 100 AAC, Diameter: 30 mm, Cable: 2 m with RJ12 connector to S111 | Delivery time from 12 weeks | from 220$ |
-
+
|
|
| S554 0144 | S111: Set of 3 x Electrical Current Transmitter, Rating: 1000 AAC, Diameter: 100 mm, Cable: 2 m with RJ12 connector to S111 | Delivery time from 12 weeks | from 360$ |
-
+
|
|
| S554 0145 | S111: Set of 3 x Electrical Current Transmitter, Rating: 3000 AAC, Diameter: 150 mm Cable: 2 m with RJ12 connector to S111 | Delivery time from 12 weeks | from 418$ |
-
+
|
|
| A554 0135 | S111: Adapter for Power and Energy Meter to connect open end Rogowski coils (S554 0140, S554 0141, S554 0142) 6-pin terminal to RJ12 | Delivery time from 12 weeks | from 12$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S111 using the special form.
