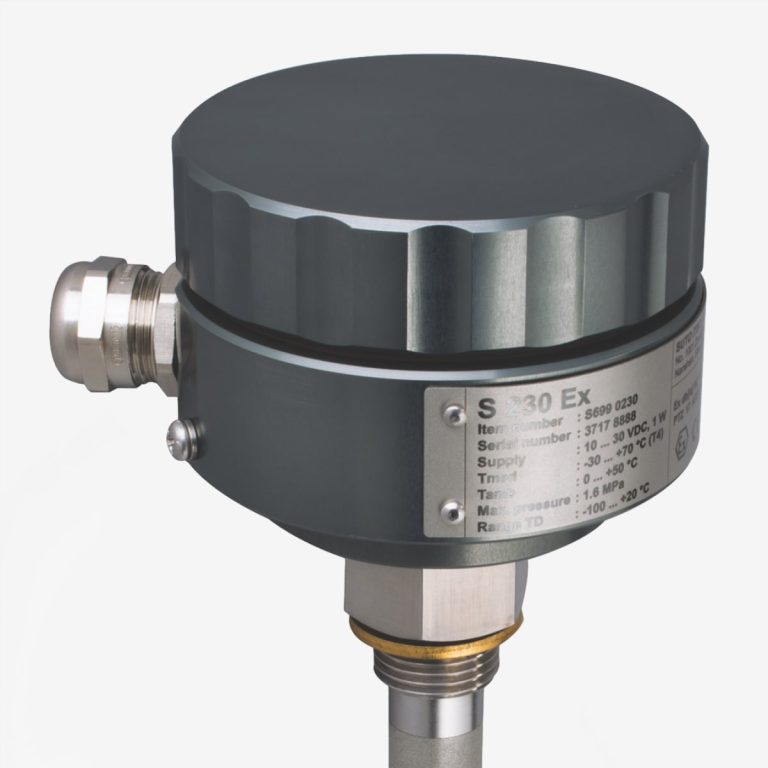

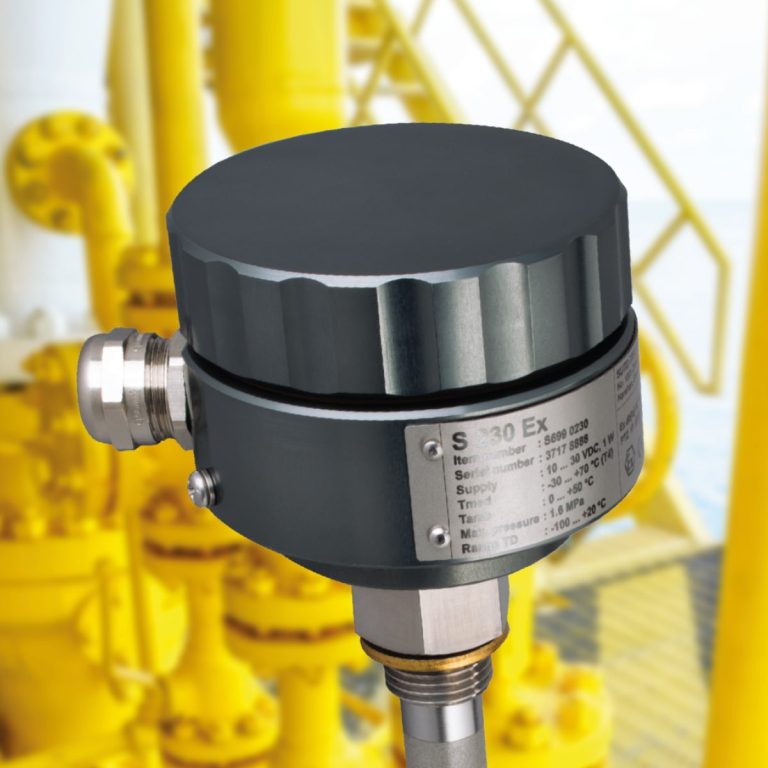

The SUTO S230 / S231 Heavy-Duty Dew Point Transmitters provide reliable, long-term stable dew point monitoring for compressed air and gases in harsh and hazardous applications. The fast response time ensures safe and reliable indication whenever dew points are out of valid ranges
Made in Germany. brand SUTO, model S230 / S231
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $2 102
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The SUTO S230 / S231 industrial dew point sensors deliver reliable, customer-focused measuring technology in a robust and compact housing, ensuring easy integration into existing processes. They provide long-term, stable monitoring of the dew point of compressed air and gases in harsh and explosive operating conditions. Fast response times ensure safe and reliable indication whenever dew point values exceed permissible limits.
The S230 model is designed for low dew point measurements and delivers accurate results in the range down to -100 °C Td, making it the ideal choice for specialized applications requiring deep dew point measurement. The S231 model covers the standard range from -50 to +50 °C Td, making it suitable for a wide range of compressed air and gas dew point monitoring tasks. Both models are factory-calibrated and ready for immediate use.
Optional IECEx approval is available for hazardous areas. The unique dual-sensor system combines two measurement methods in a single sensor: intelligent measurement technology automatically selects the optimal sensor type depending on the situation, ensuring the highest accuracy and reliability of results.
The transmitters are available with a choice of 4–20 mA or Modbus RTU (RS485) outputs. Parameters can be configured by the manufacturer for your specific application, or you have full access to all settings via the SUTO service kit. The devices can also be connected to SUTO S331 (stationary) or S551 (portable) data loggers for subsequent data analysis.
SUTO’s calibration service helps eliminate downtime and ensures continuous dew point measurement logging.
Application
Features
Benefits
| MEASUREMENT | |
| Dew Point | |
| Accuracy | ± 1 °C Td (0 … 20 °C Td) ± 2 °C Td (-60 … 0 °C Td) ± 3 °C (-100 … -60 °C Td) |
| Selectable units | °C, °F, bar(g), MPa(g), psi(g), % rH, g/m³, mg/m³, G/m³ atm., mg/m³ atm., ppm(v), g/kg, °C Td atm. |
| Measuring range (model depending) | S230: -100 … +20 °C Td S231: -50 … +20 °C Td |
| Sensor | Polymer + QCM |
| Response time t90 (@ 4l/min) | -20 °C Td -> -60 °C Td = < 240 s -60 °C Td -> -20 °C Td = < 30 s |
| Temperature | |
| Accuracy | 0.3 °C |
| Measuring range | -30 … +70 °C |
| Sensor | NTC |
| Reference conditions | |
| Selectable conditions | Pressure Dew Point, Atmospheric Dew Point |
| SIGNAL INTERFACE & SUPPLY | |
| Analog output | |
| Signal | 4 … 20 mA (isolated) Modbus/RTU |
| Scaling | S230: 4 mA = -100 °C Td; 20 mA = +20 °C Td S231: 4 mA = -50 °C Td; 20 mA = +20 °C Td |
| Load | 250R |
| Update rate | 3 / sec |
| Fieldbus | |
| Protocol | Modbus/RTU |
| Update rate | 1/s |
| Supply | |
| Voltage supply | 15 … 30 VDC |
| Current consumption | 40 mA @ 24 VDC |
| GENERAL DATA | |
| Konfiguration | |
| PC Software | S4C-DP Application |
| Material | |
| Process connection | Stainless steel 1.4301 (SUS 304) |
| Housing | Aluminium alloy |
| Sensor | Polymer, Ceramic |
| Miscellaneous | |
| Electrical connection | Screw terminals |
| Protection class | IP67 |
| Approvals | II 2G Ex db ib IIC T4 Gb II 2D Ex ib tb IIIC T135°C Db CE |
| Process connection | G 1/2“ thread (ISO 228/1) |
| Weight | 728 g |
| Operating conditions | |
| Medium | Air, Argon, O₂, N₂, CO₂* |
| Medium quality | ISO 8573-1: 4.6.3 or better |
| Medium temperature | -30 … +70 °C |
| Medium humidity | ≤ 20 °C Td |
| Operating pressure (model depending) | -0.1 … 1.6 MPa (S230) -0.1 … 35 MPa (S231) |
| Ambient temperature | 0 … +50 °C |
| Ambient humidity | 0 … 100 % rH |
| Storage temperature | -20 … +50 °C |
| Transport temperature | -30 … +70 ºC |
Stated accuracy under following conditions:
You can request the necessary certificates, documentation, instructions and user guide for SUTO S230 / S231 using the special form.
