The S551 Portable Data Logger for compressed air efficiency monitoring is the ideal data logger for energy analysis (ISO 50001) and air audits (ISO 11011) on site.
Made in Germany. brand SUTO, model SUTO S551
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

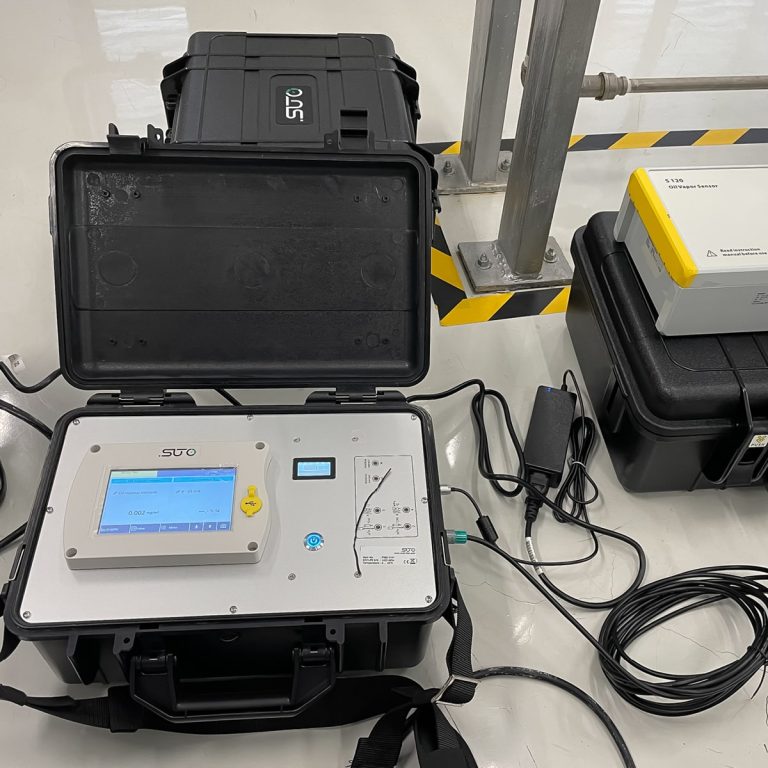

On-site Logging

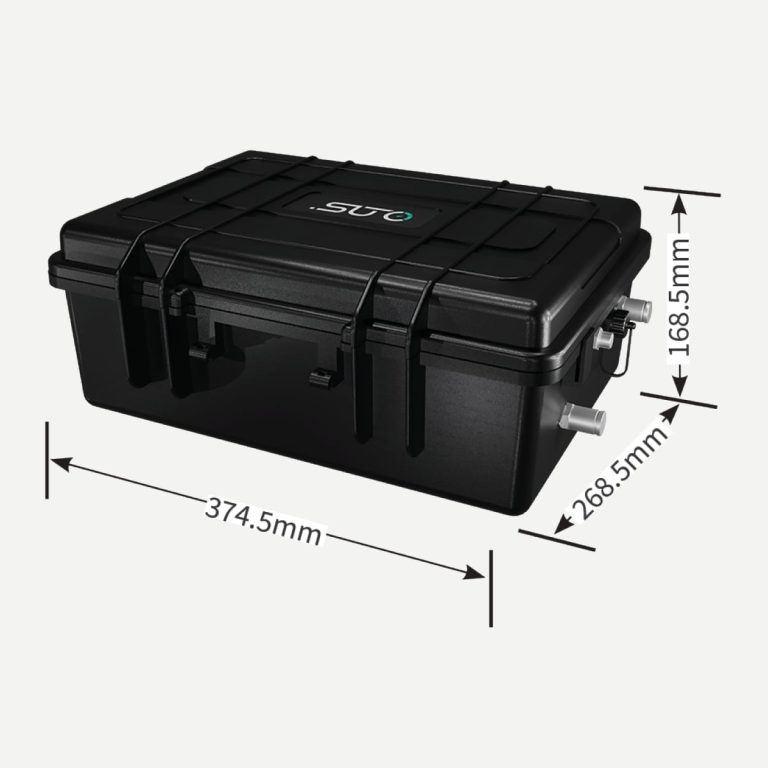

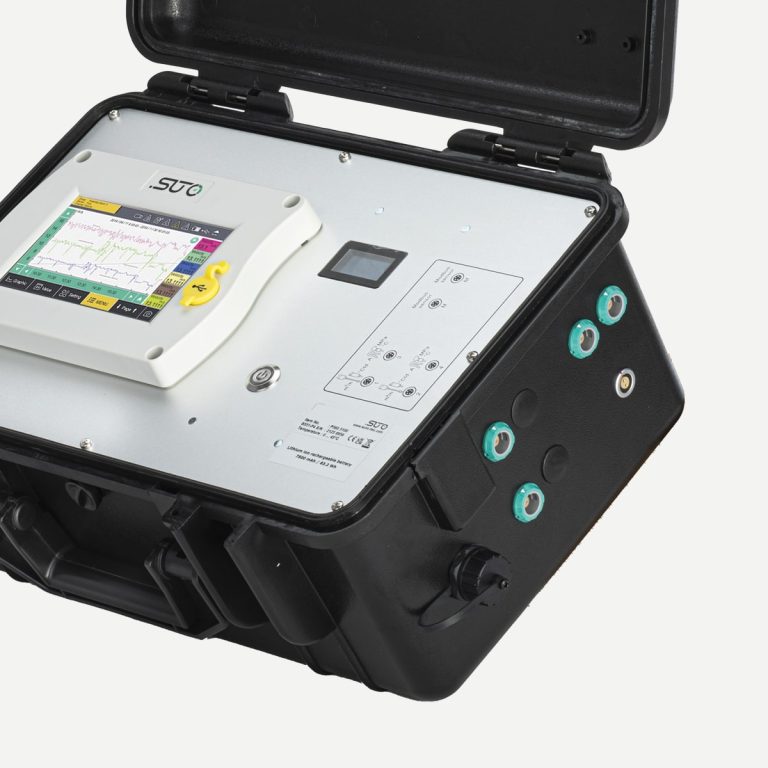

The ultraportable and robust design helps to perform measurement tasks and audits on site. The high resolution 5” color touch screen interface makes the operation as simple as possible. To prevent data loss during power glitches and cuts, the backup battery ensures continuous data logging at the point-of-use.
Plug & Play Solution
The S551 Portable Data Logger is an easy to use and time-effective solution. With a few settings, the data logger is ready for operations with virtually unlimited memory size. No time-consuming configuration and programming are required. Just connect the sensor and start the recording. SUTO intelligent sensors are detected automatically on power-up.
Versatile Connections and Sensor Inputs
All sensors for required measurement tasks (air flow, air consumption, power consumption, pressure, temperature and many more) can be easily connected. The S551 provides up to 24 inputs through extension boxes and Modbus. Third-party sensors can also be connected in a few minutes.
Optional 4G/LTE Remote Connection
By integrating a USB port for 4G dongle connection outside S551casing, the portable data logger can be easily connected to the S4A Software and monitored remotely. This eliminates the need for a Wi-Fi connection.
The USB 4G dongle is an optional feature. It can be ordered together with S551, but also upgraded later. To make use of this new feature, a SIM card is required.
Remote Data Analysis
The S551 is capable of sending measurement data and status information to a remote server through the Internet. This allows users to monitor the system remotely.
The full Software Packages
| SIGNAL INTERFACE & SUPPLY | |
| Data logger | |
| Storage | 4 GB, up to 100 million values |
| Sampling rate | The minimum time interval is 1 second |
| Digital input | |
| Interface | 2 x SDI connectors, 2 x Modbus/RTUconnectors |
| Update rate | Value updated every 1 sec |
| No. of connectable | 2 x SDI sensors |
| Sensors | 16 x Modbus/RTU sensor |
| Analog input | |
| Signal | Analog (0 … 20 mA, 4 … 20 mA, 0 … 1 V, 0 … 10 V), Pulse |
| Burden | Max. 250 Ohm |
| Update rate | Value updated every 1 sec |
| Fieldbus output | |
| Protocol | Modbus/RTU, Modbus/TCP |
| Update rate | Value updated every 1 sec |
| Other outputs | |
| Communication Interface | 4G/LTE (optional) |
| Purpose | View the online measurement values, read out the logging files remotely through S4A software and USB 4G dongle |
| Supply | |
| Main power supply | 100 … 240 VAC, 50/60 Hz, 1.4 A |
| Data interface | |
| Connection | USB micro, LAN (Ethernet) |
| Purpose | Read logger files & screenshots, show live data |
| Integrated web server | Remote monitoring (LAN) |
| GENERAL DATA | |
| Configuration | |
| PC Software | S4C-Display (via USB or LAN) |
| Display | |
| Integrated touch screen | 5” high resolution graphic display, 800 x 480 pixels with touch interface |
| Material | |
| Housing | PC + ABS |
| Miscellaneous | |
| Electrical connection | 2 x M12 (5 pole) for SDI; 2 x Optional M12 (5 pole) for analog and pulse;2 x M12 (5 pole) for Modbus/RTU; 1 x RJ45 Ethernet |
| Protection class | IP65 (only if the suitcase lid is closed and locked) |
| Weight | 4 kg |
| Operating conditions | |
| Operating temperature | 0 … +50 °C |
| Storage humidity | < 90 % |
| Storage temperature | -20 … 50 °C |
| Transport temperature | -20 … 50 °C |
You can request the necessary certificates, documentation, instructions and user guide for SUTO SUTO S551 using the special form.
