The S606 Stationary Breathing Air Quality Monitor offers the ultimate solution for 24/7 measurement of air quality at breathing air filling stations and compressed breathing air systems. With its advanced functionality and cutting-edge technology, this monitor ensures that the air being breathed is of the highest quality and meets stringent safety standards and regulations.
Made in Germany. brand SUTO, model S606
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $30 420
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The S606 stationary breathing air quality monitor is a comprehensive solution for 24/7 monitoring at filling stations and in compressed breathing air systems. The instrument guarantees compliance of the air with strict industry regulations and safety standards.
Multi‑parameter real‑time analysis
The S606 continuously monitors all critical parameters: oxygen (O₂), carbon monoxide (CO), carbon dioxide (CO₂), oil vapor, water vapor, and other impurities. Data is displayed on a clear screen, allowing the operator to instantly assess the situation and maintain optimal safety conditions.
Ease of operation and safety
The instrument is equipped with a configurable alarm system: when predefined thresholds for any parameter are exceeded, visual and audible alarms are activated. The intuitive menu and controls simplify configuration, and access to measurement history and parameters is achieved with a few touches.
Data logging and digital integration
The built‑in data logger records readings over long periods for subsequent analysis. Data can be easily exported as reports for auditing and compliance verification. Thanks to Modbus/RTU and Modbus/TCP interfaces, the monitor seamlessly integrates into existing SCADA systems and centralized monitoring systems.

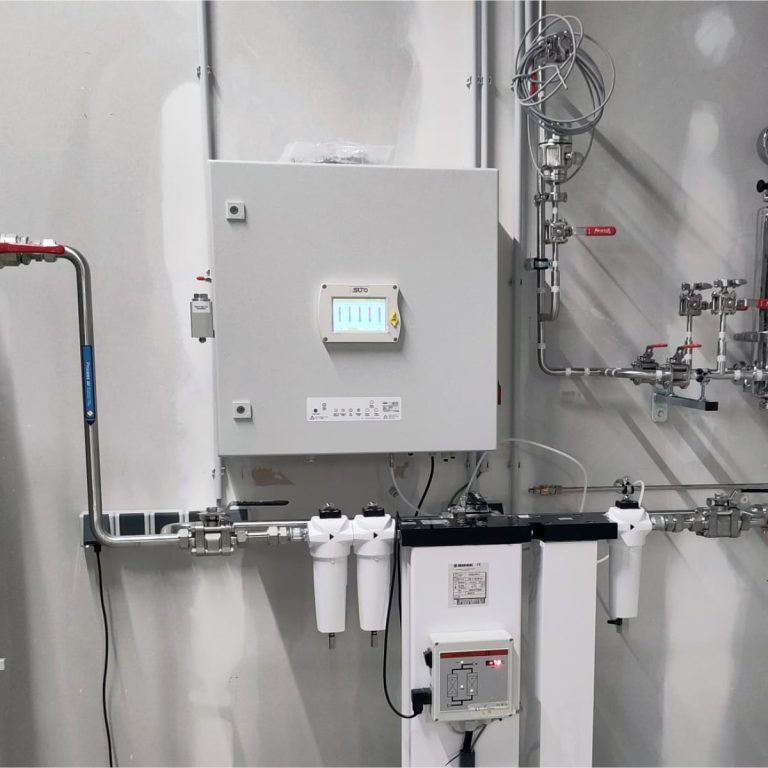

Simple installation and reliability
The solution is implemented on a plug‑and‑play principle: only one gas inlet is required to connect all system parameters, eliminating complex piping. The robust housing, made of high‑quality materials, is designed for operation in harsh conditions at filling stations and industrial facilities.
Applications
Indispensable for organizations where breathing safety is a priority: fire departments, diving centers, chemical industry, paint shops, offshore platforms, and high‑tech manufacturing.
Features
The video demonstrates the capabilities of the S606 stationary breathing air analyzer for spot checks and round-the-clock (24/7) air quality monitoring at gas stations.
| MEASUREMENT | |
| Oxygen O2 | |
| Accuracy | ± 1 % of reading ± 0.05 % |
| Measuring range | 0 … 25 % |
| Resolution | 0.1 % |
| Sensor | Optical oxygen senor |
| Carbon Dioxide CO2 | |
| Accuracy | ± 1 % of reading ± 25 ppm |
| Measuring range | 0 … 1000 ppm |
| Resolution | 1 ppm |
| Sensor | NDIR sensor |
| Carbon Monoxide CO | |
| Accuracy | ± 5 % of reading ± 1 ppm |
| Measuring range | 0 … 20 ppm |
| Resolution | 0.1 ppm |
| Sensor | Electrochemical sensor |
| Humidity H2O | |
| Accuracy | ± 2 °C Td |
| Measuring range | – 100 … + 20 °C Td / 0 … 17458.6 mg/m³ |
| Resolution | 0,1 mg/m3 |
| Sensor | QCM + Polymer |
| Oil Vapor | |
| Accuracy | 5 % of reading ± 0.003 mg/m³ |
| Measuring range | 0.001 … 5.000 mg/m³ (Based on 1000 hPa(a), 20 °C, 0 % relative humidity) |
| Resolution | 0,001 mg/m³ |
| Sensor | Photo ionization detector |
| UV lamp lifetime | 9000 working hours |
| Oil Mist and Particlel | |
| Accuracy | 15 % of reading ± 0.1 mg/m³ |
| Measuring range | 0.0 … 10.0 mg/m³ (Based on 1000 hPa(a), 20 °C, 0 % relative humidity) |
| Resolution | 0,1 mg/m³ |
| Sensor | Oil mist and particle sensor |
| Pressure | |
| Accuracy | 0.5 % FS |
| Measuring range | 0 … 16 bar(g) |
| Resolution | 0.01 bar |
| Sensor | Piezo resistive pressure sensor |
| SIGNAL INTERFACE & SUPPLY | |
| Feldbus | |
| Protokoll | Modbus/RTU (RS485) Modbus/TCP (Ethernet) |
| Power supply | |
| Voltage supply | 18-32 VDC, 20 W Battery |
| Interface | |
| USB | USB Micro with OTG support |
| M12 | 4G/LTE Modem |
| GENERAL DATA | |
| Configuration | |
| Others | Device comes pre-configured Configuration can be done via on-screen touch |
| Display | |

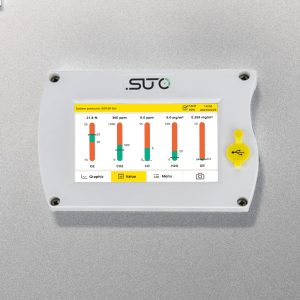

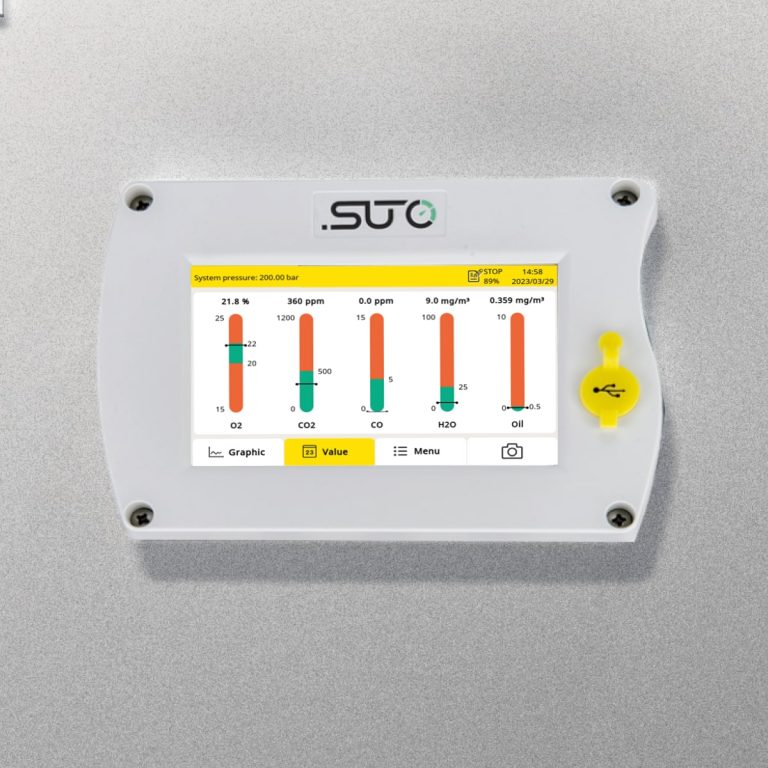

| Integrated | 5” color touch screen |
| Data Logger | |
| Storage | Up to 3 million recorded data sets (10 channels each) |
| Report | Integrated report generator for PDF export |
| Material | |
| Process connection | 6 mm quick connector |
| Housing | Sheet steel, powder-coated on the outside (Stainless steel on request) |
| Miscellaneous | |
| Electrical connection | M12, PG plug, RJ45 |
| Protection class | IP55 (cover lid closed) |
| Water Inlet | G1 connector |
| Water Outlet | G1/8 connector |

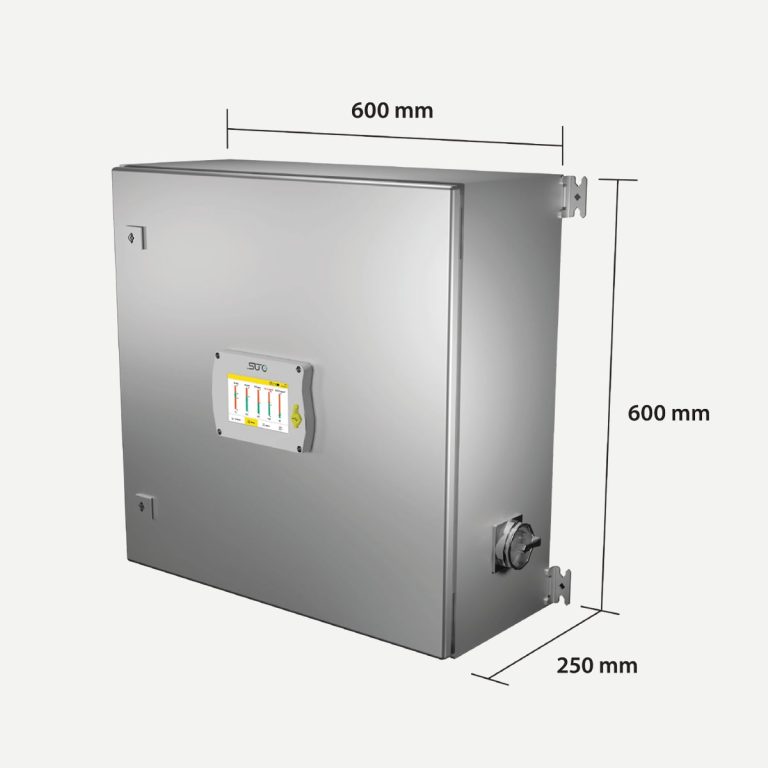

| Dimensions | 600 x 600 x 250 mm |
| Weight | 34 kg |
| Approvals | |
| EMC | FCC, CE |
| Operating conditions | |
| Measuring Medium | Compressed breathing air |
| Sample Flow Rate | 6 LPM@4 MPa(g), depends on input pressure |
| Sample rate | 1 sample/sec |
| Medium temperature | 0 … +45 °C |
| Medium humidity | Medium humidity < 40 % rH, no condensation |
| Inlet Pressure | 0.4 … 1.5 MPa(g), External pressure reducer allow up to 35 MPa process pressure |
| Ambient temperature | 0 … +50 °C |
| Ambient humidity | 0 … 90 % rH |
| Storage temperature | -10 … +50 °C |
| Transport temperature | -10 … +50 °C |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| D500 0606 | S606-I, Stationary Breathing Air Quality Analyzer, Touch screen interface, data logger, Metal cabinet for wall mounting (International version with oil vapor sensor) | Delivery time from 12 weeks | On request |
-
+
|
|
| A604 0001 | Zero filter for oil vapor/oil mist and dew point sensor | Delivery time from 12 weeks | On request |
-
+
|
|
| A604 0004 | Pressure reducer, inlet pressure 0-30MPa(g), outlet pressure 0.6MPa(g)，incl. transport case | Delivery time from 12 weeks | On request |
-
+
|
|
| A1670 | USB 4G dongle, including S4A software | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0131 | USB 4G Dongle protection case, with extension cable 2m And M12 Connector | Delivery time from 12 weeks | On request |
-
+
|
|
| A1510 | 8-ch relay module with Modbus | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0602 | Purity test kit consisting of zero filters for oil vapor, particles, and a desiccant cartridge for low dew point creation | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1203 | Oil vapor zero filter, 1.5 MPa(g) max, with quick connectors at both ends | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1204 | Particle zero filter, 1.5 MPa(g) max, with quick connectors at both ends | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1205 | Dew point test kit for low dew point generation, with quick connectors at both sides | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S606 using the special form.
You can buy SUTO S606 in UAE at a price starting from 30420 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. SUTO S606 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
