Exchangeable PT100 Probes for Temperature Measurement
Made in Swiss. brand Rotronic, model TF5
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

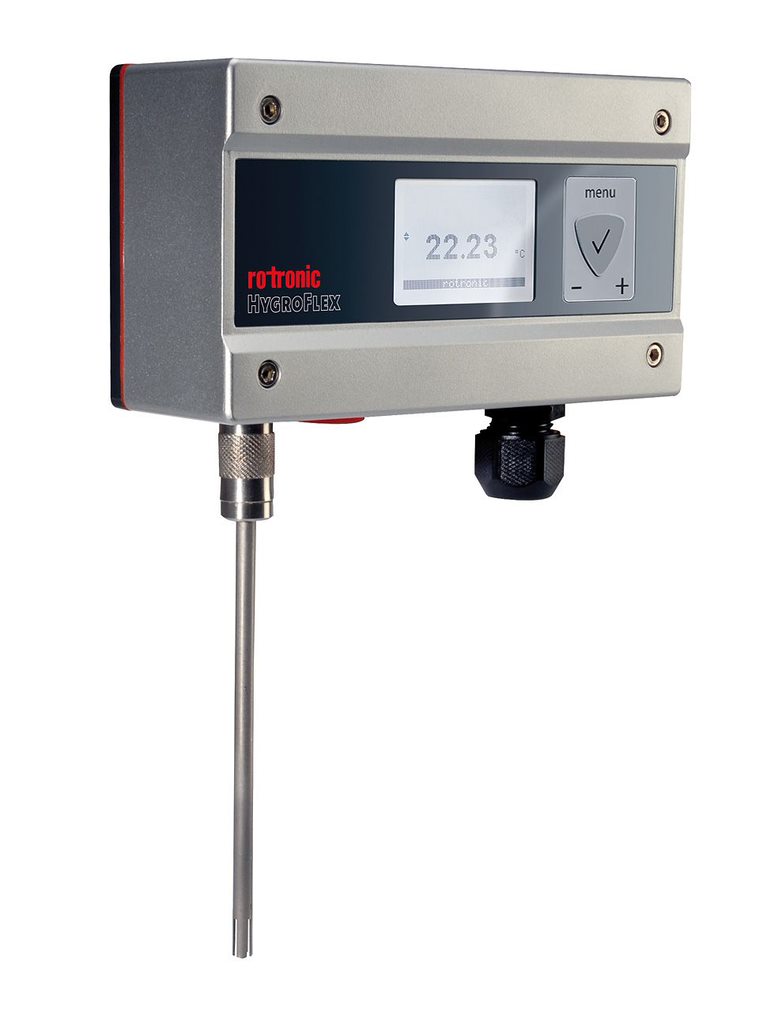

The HygroFlex5 Temperature series is compatible with all PT100 probes of Rotronic, which offers a high variety in temperature ranges and accuracy and is also compatible with third-party PT100 with B4 pol connector. The TF5 Temperature Transmitters are available as wall mount with or without Display.
Proven housing
Power supply
Outputs
Flexible choice of probes
Applications
| TF520
2-wire |
TF532 / TF535
3/4-wire |
|
| Temperature Probe | PT100 Class A probes, various types | |
| Initialization time | Typically > 4 sec. | Typically > 2 sec. |
| Measurement range | Probe dependent -100…600 °C | |
| Range of applications | -10…60 °C with display
-40…60 °C without display |
|
| Trend indicator | Yes | |
| Display resolution | Resolution to 2 decimal places | |
| Output signals analog | 4…20 mA | Freely scalable by user 0…1/5/10 V, 0(4)…20 m A (TF532: 4…20 mA
per default) (TF535: 0…10 V per default) |
| Cable connections | 1 x M16 x 1.5, screw terminals | |
| Power supply | 12…28 VDC | 15…40 VAC
12…28 VDC |
| Circuit Type | 2-wire | 3/4-wire |
| Current consumption | 20 mA | < 30 mA |
| Load per analog output | Max. 500 Ω | Current: Max. 500 Ω Voltage : Min. 10 kΩ |
| Interface | UART | |
| Customer specific settings | HygroSoft free Software | |
| Data processing | HygroSoft Configuration Software | |
| Housing Material | Top: ABS Bottom: ABS | |
| Standards | CE Conformity 2014/30/EU | |
| GMP/ FDA Compliance | Conforms to FDA 21 CFR Part 11 and GAMP5 | |
| Order Code | Type |
| AC1900 | Rod |
| AC1902 | Insertion |
| AC1903 |
Cable |
| AC1904 | |
| AC1916-A-T | |
| AC1909 | Measurement in air |
| AC1913-A | Foil |
| Order Code | Type |
| AC1607/02 | Extension cable for PT100, 2 m |
| AC1607/05 | Extension cable for PT100, 5 m |
| AC1607/10 | Extension cable for PT100, 10 m |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic TF5 using the special form.
You can buy Rotronic TF5 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic TF5 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
