Remote aspirating head made of AISI 316 steel is designed for microbiological air sampling with minimal operator intervention. Control is performed through external unit (TRIO.BAS, AIRBIO or MULTIFLEX), and culture media plate insertion occurs in separate aspiration chamber.
Made in Italy. brand TRIO.BAS, model AHS TRI CLAMP
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $2 849
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Material | Completely fabricated in AISI 316 stainless steel |
| Sampling control | Sampling programmed through control unit (TRIO.BAS, AIRBIO, MULTIFLEX) located outside isolator/RABS or inside/outside cleanroom |
| Loading procedure | Operator must insert culture media plate into separate aspiration chamber |
| Connection type | TRI-CLAMP device simplifies cleaning/sterilization |
| Operation safety | Reduced contamination risk from operator activities |
| Chamber design | Aspirating chamber has multi-axis adjustment for positioning in unidirectional airflow |
| System processing | System is fully sterilizable |
System belongs to peripheral modules for stationary samplers. Various configurations of stainless steel systems designed for use in confined spaces.

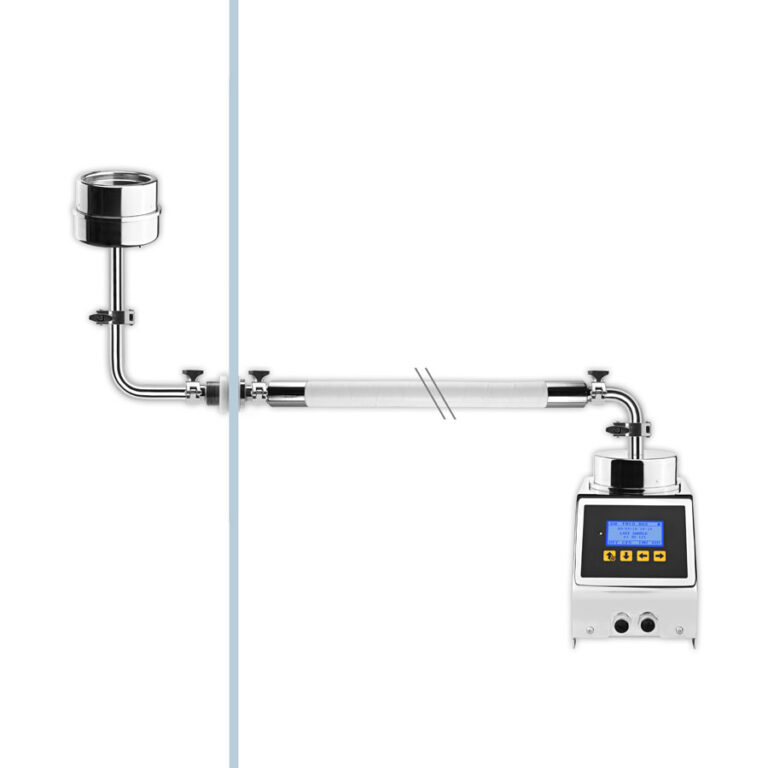

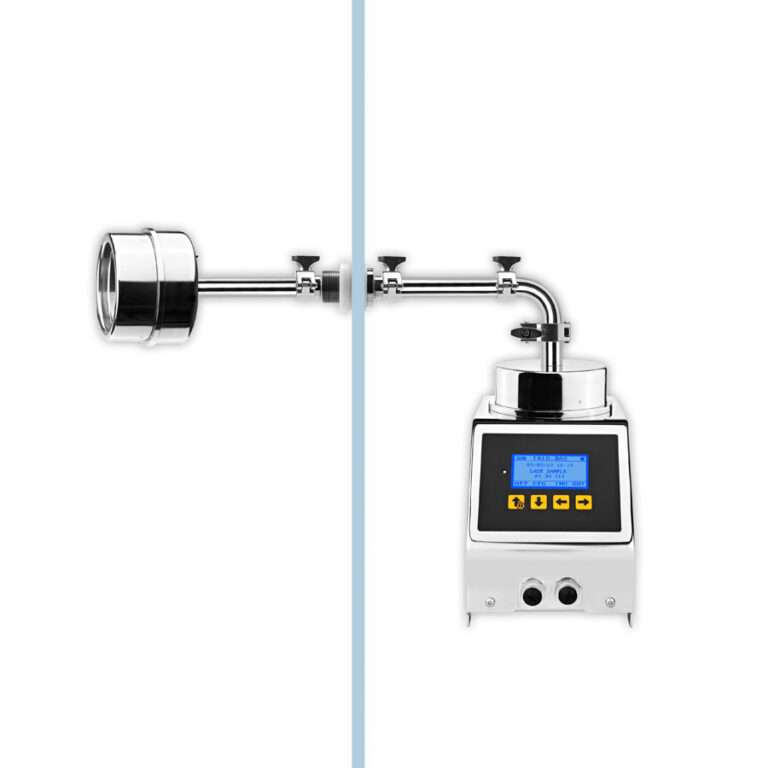

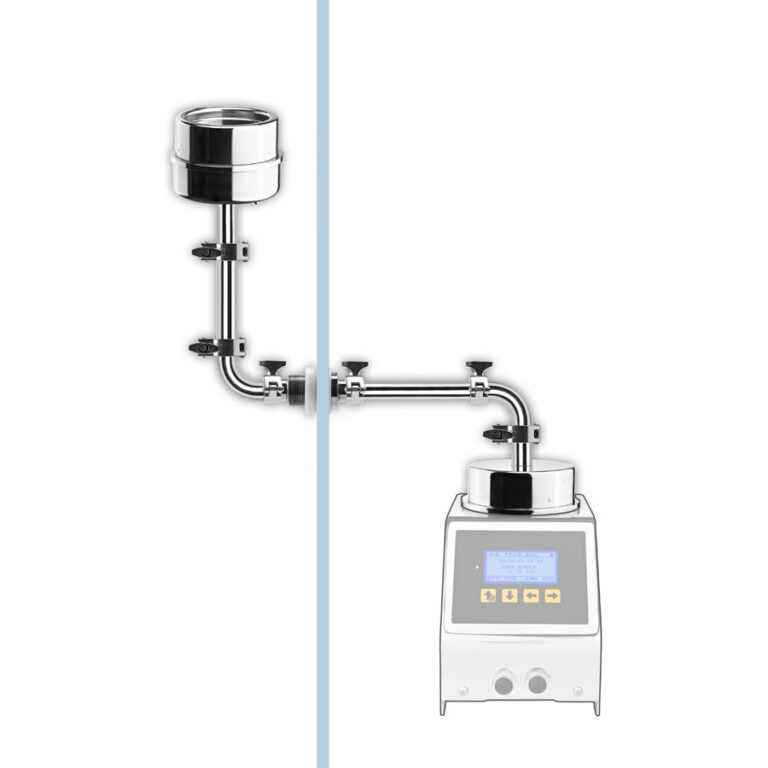

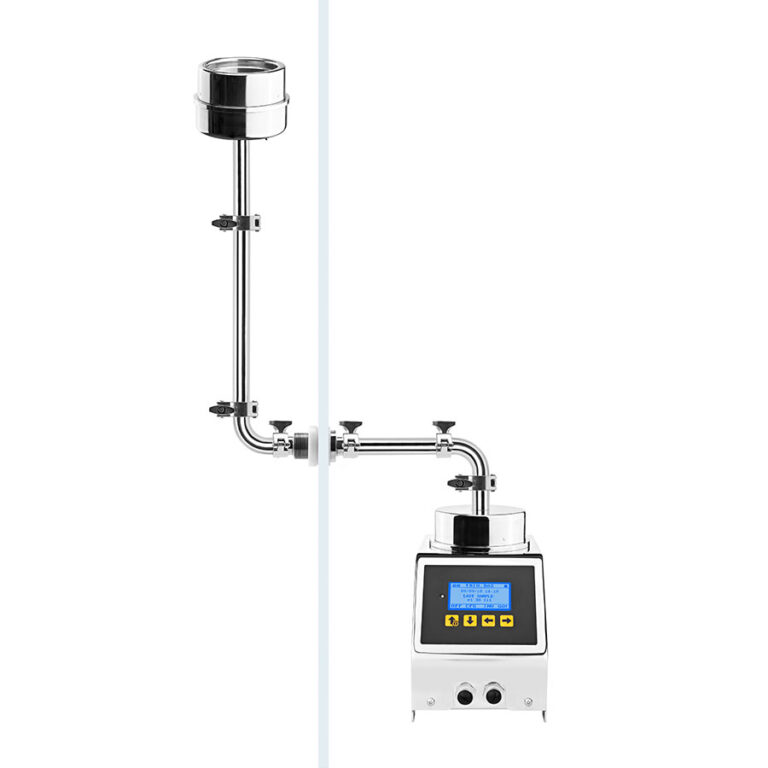

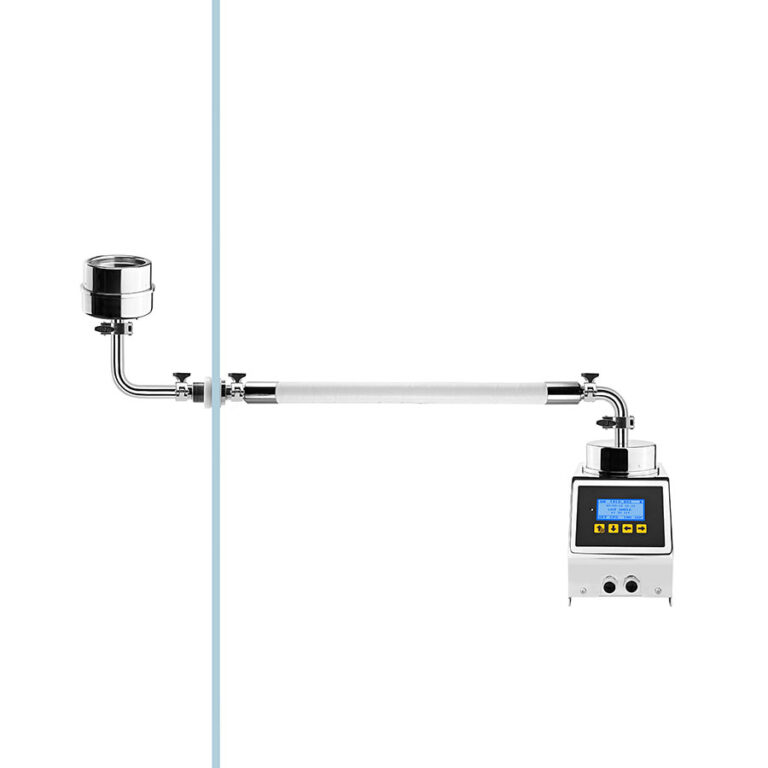

Remote head is used in combination with MULTIFLEX sampler and is typically placed in RABS or isolator systems. Connecting tubes can be rigid (stainless steel) or flexible (silicone material). All components are sterilizable.
Application: Pharmaceuticals, Cleanrooms, Biotechnology, Fermentation, Medical Devices, Stem Cells
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| 184 | silicone tube with 2 camps ends - 50 cm lenght | Delivery time from 12 weeks | from 440$ |
-
+
|
|
| 185 | silicone tube with 2 camps ends - 100 cm lenght | Delivery time from 12 weeks | from 680$ |
-
+
|
|
| 186 | silicone gasket for tri clamp | Delivery time from 12 weeks | from 2$ |
-
+
|
|
| 187 | s/s cap clamps | Delivery time from 12 weeks | from 10$ |
-
+
|
|
| 188 | s/s 90° elbow short tube with 2 clamps end - wheelbase 40 mm | Delivery time from 12 weeks | from 109$ |
-
+
|
|
| 189 | s/s wall connection with 2 clams end (wall < 5mm) | Delivery time from 12 weeks | from 230$ |
-
+
|
|
| 190 | s/s tube with 2 clamps end - 20 cm length | Delivery time from 12 weeks | On request |
-
+
|
|
| 191 | REMOTE Contact plate HEAD SYSTEM in s/s AISI316 with tri clamps connection | Delivery time from 12 weeks | from 2 849$ |
-
+
|
|
| 192 | REMOTE Petri 90 plate HEAD SYSTEM in s/s AISI316 with tri clamps connection | Delivery time from 12 weeks | from 2 849$ |
-
+
|
|
| 193 | s/s tri clamps with silicone gasket | Delivery time from 12 weeks | from 30$ |
-
+
|
|
| 194 | s/s tube with 2 clamps end - 100 mm lenght | Delivery time from 12 weeks | from 267$ |
-
+
|
|
| 194/1 | s/s tube with 2 clamps end - 200 mm lenght | Delivery time from 12 weeks | from 290$ |
-
+
|
|
| 194/2 | s/s tube with 2 clamps end - 500 mm lenght | Delivery time from 12 weeks | from 375$ |
-
+
|
|
| 195 | s/s 90° elbow long tube with 2 clamps end - wheelbase 89 mm | Delivery time from 12 weeks | from 164$ |
-
+
|
|
| 197 | s/s hexagonal pipe hook with inserts - 100 mm | Delivery time from 12 weeks | from 183$ |
-
+
|
|
| 198 | s/s wall connection with 2 clams end - size 80 mm lenght (wall > 5mm) | Delivery time from 12 weeks | from 316$ |
-
+
|
|

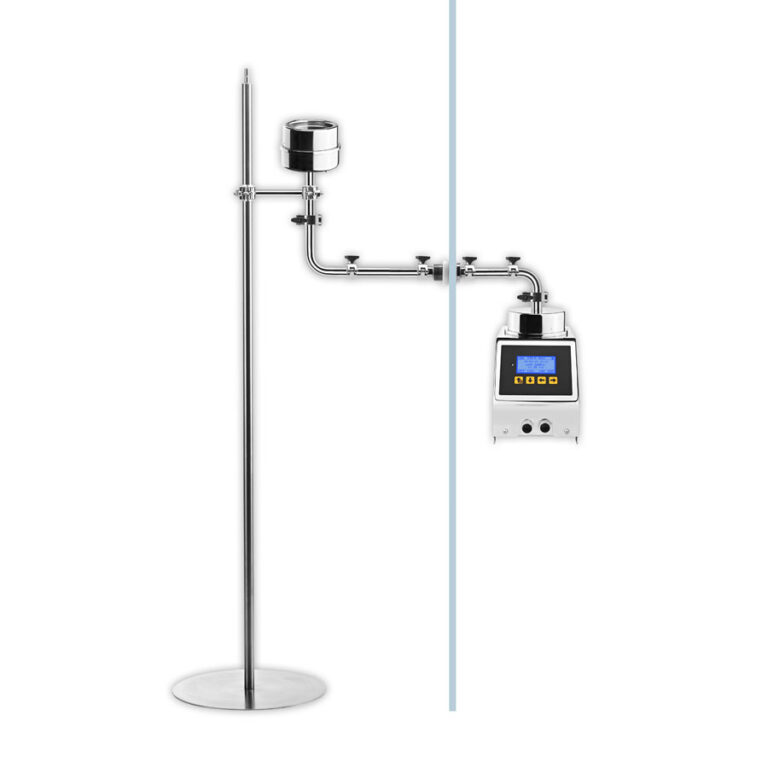

| 199 | s/s floor pole - base diameter 250 mm - lenght 1 mt | Delivery time from 12 weeks | from 245$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for TRIO.BAS AHS TRI CLAMP using the special form.
You can buy TRIO.BAS AHS TRI CLAMP in UAE at a price starting from 2849 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. TRIO.BAS AHS TRI CLAMP price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Accessories for Samplers
