One external command unit, completely fabricated in stainless steel, connects to 1, 2 or 3 satellites with Bluetooth support and cable charging. Supports battery charging via cable (110/240 V) and data transfer via Bluetooth. Air flow rate: 100 or 200 l/min
Made in Italy. brand TRIO.BAS, model ISOLATOR RABS
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $4 529
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

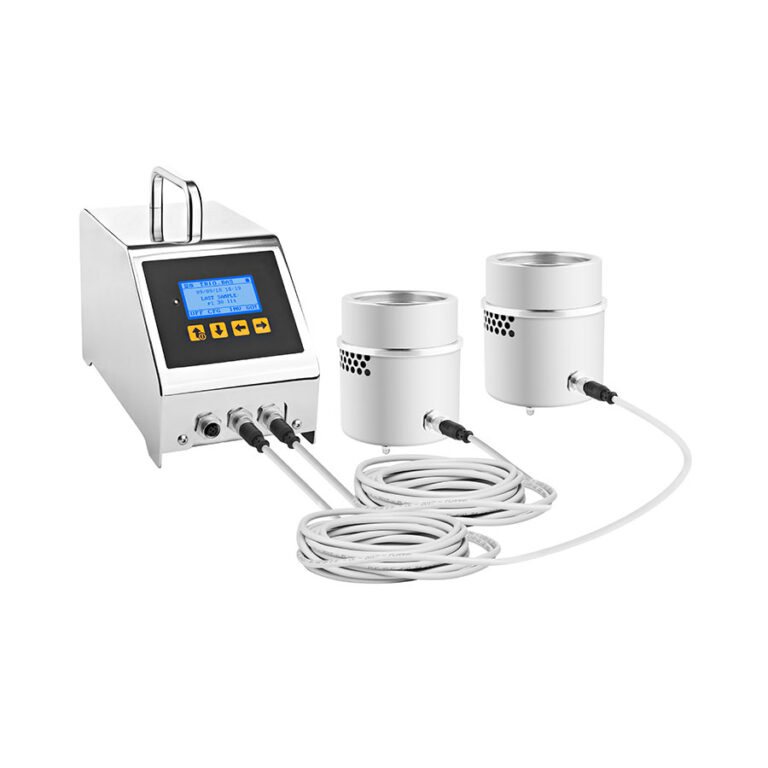

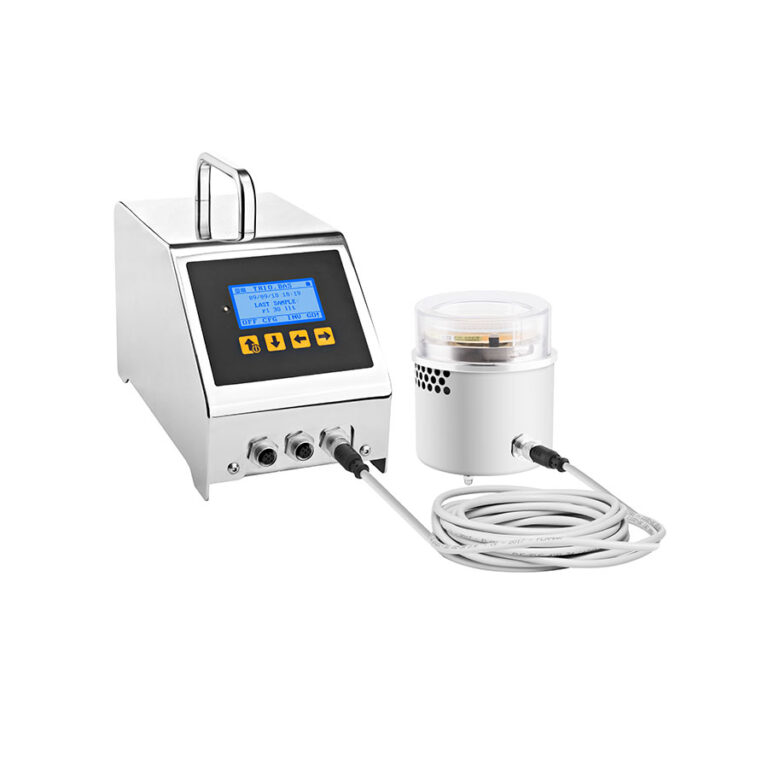

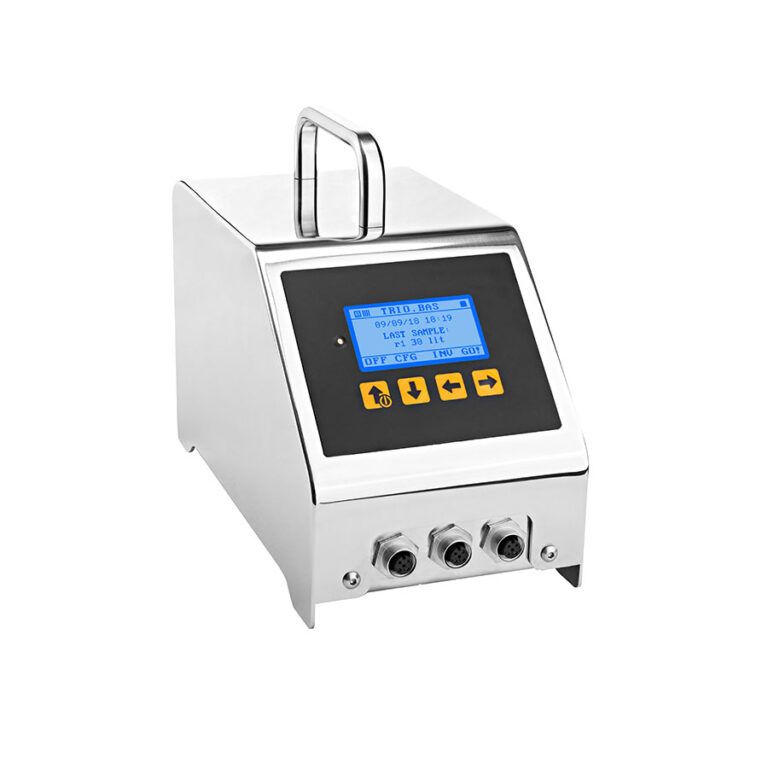

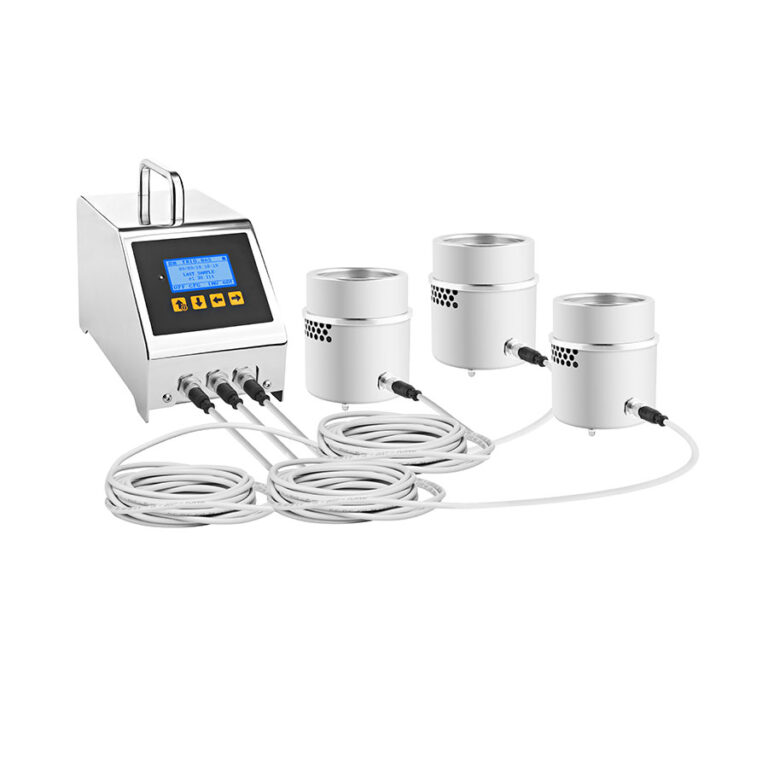

RABS ISOLATOR is a command unit, completely fabricated in stainless steel, designed to control external satellites. Up to three independent satellites can be connected.

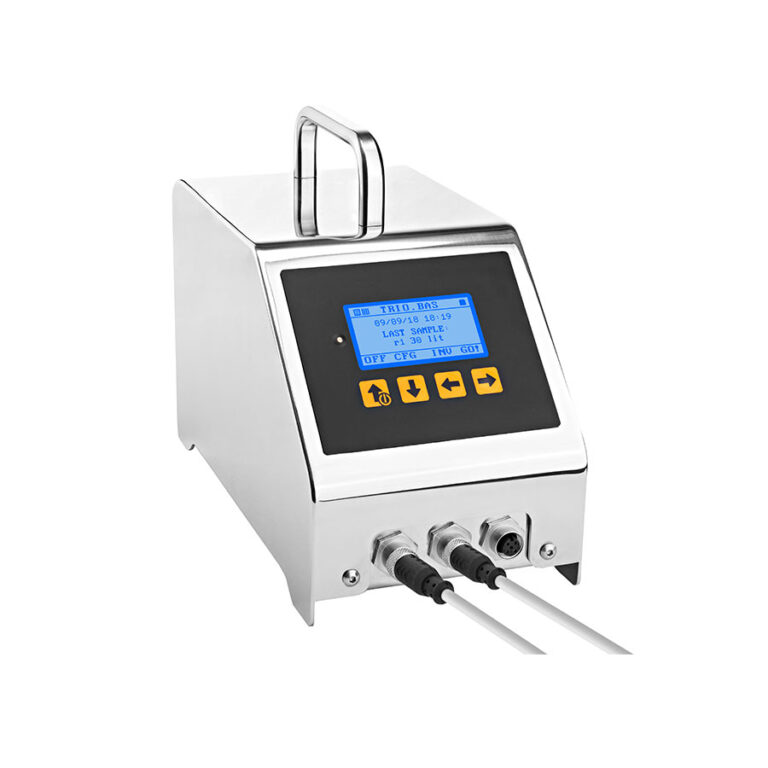

Each satellite is connected to the command unit via electronic cable (up to 20 meters), ensuring system flexibility.

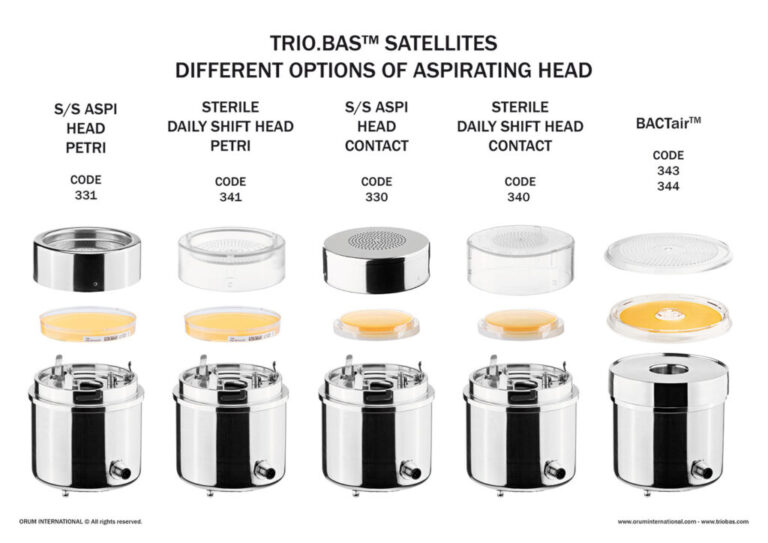

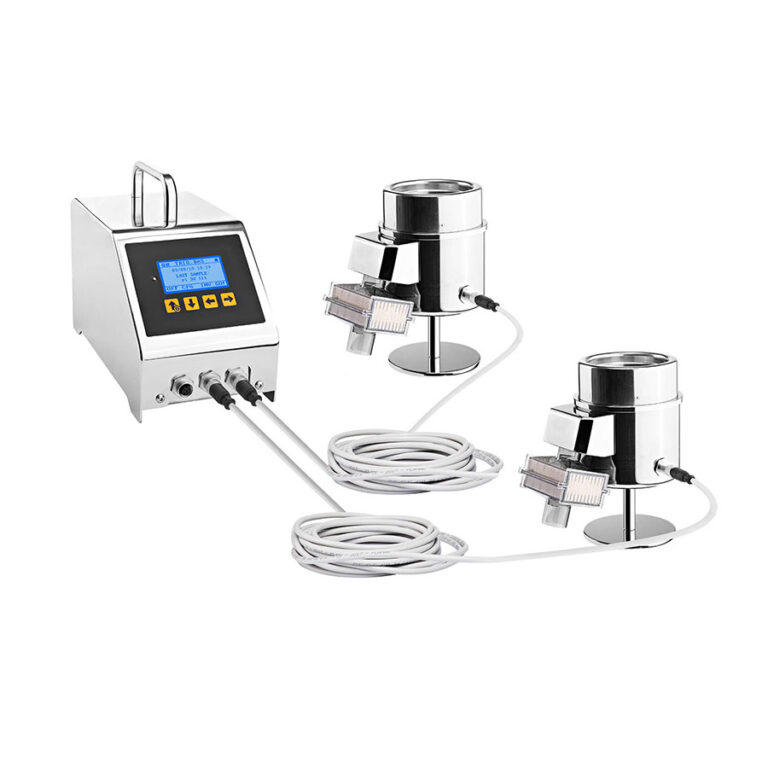

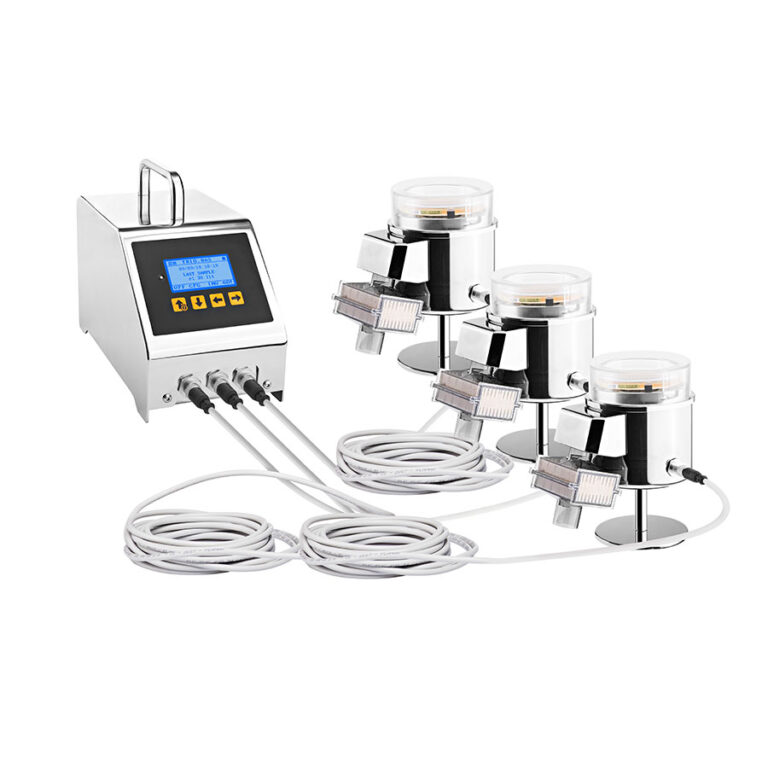

The variety of satellites (standard, with TRI CLAMPS connection, or with HEPA filter) allows meeting various customer requirements. These instruments are designed for pharmaceutical facilities where RABS or isolators are used, and where limited space does not allow placement of a full-size air sampler. The presence of multiple heads ensures continuous microbiological environmental monitoring in compliance with regulatory requirements. Sampling data can be exported for subsequent analysis or inspector oversight.
Satellite — remote unit for air sampling for microbial cleanliness. Housing is fabricated from polished AISI 316 stainless steel. Each aspirating head is equipped with individual identification number. Designed for use with standard 90 mm Petri dishes. Equipped with adjustable holders and electrical connector for connection to command unit.
TRIO.BAS stainless steel satellites represent an ideal solution for operation in RABS and isolators, as the sampled air remains inside the closed cabinet volume and does not require additional exhaust.
Satellite versions:
Satellite connection to command unit
Satellites can be connected to the command unit in two ways:

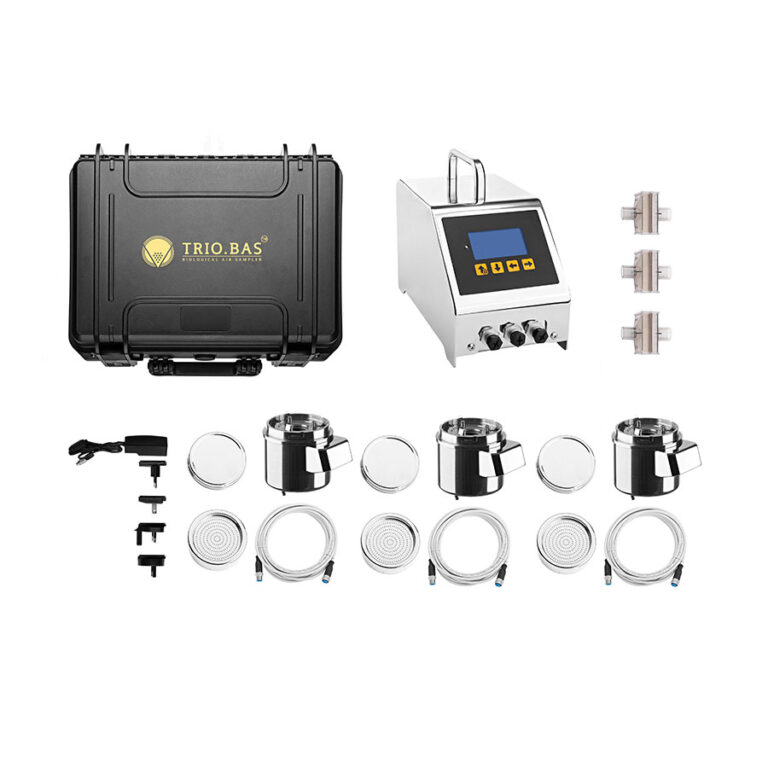

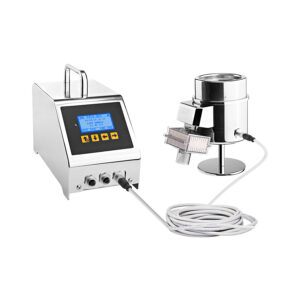

TRI CLAMP connection: remote funnel system in stainless steel AISI 316 with bell — carrying case included.
TRI CLAMP connection: remote head system for Petri dishes 90 mm in stainless steel AISI 316 — carrying case included.
Features
Application:
Pharmaceuticals, cleanrooms, biotechnology, fermentation, medical devices, cell technologies
Satellite modules can be used with:
| Command unit and satellites material: | Stainless steel AISI 316 |
| Standards compliance: | ISO 14698-1, EN 17141, GMP and GAMP |
| Aspirating head: | Stainless steel with quick bayonet connection, identification number and stainless steel cover for contamination prevention |
| Aspirated air volume: | 100 or 200 l/min |
| Selectable volumes: | From 30 to 6,000 liters and 17 preset programs |
| Aspiration chamber: | Suitable for 55 mm Contact plates or 90 mm Petri dishes |
| Auto-calibration: | Electronic power/flow control in real time |
| Power system: | Continuous charging from mains 110/240 V 50/60 Hz or from batteries (inside sampler) |
| Battery cycle autonomy: | 70,000 liters |
| Interface language: | English, French, German, Spanish, Italian |
| Operating aspiration cycles: | Manual and automatic |
| Stored data: | Up to 1,000 samples |
| Configuration: | 100 users and 100 sampling locations |
| Parameters: | Delay time, fraction time, fraction number |
| Sampling start modes: | Delayed start, remote start, simultaneous or interval sampling |
| Data transfer: | Bluetooth or cable |
| Supports: | Automatic reminder for next calibration |
| Data integrity: | CFR 21 Part 11 and GAMP5 |
| Marking: | CE |
| Continuous/trend analysis: | According to USP (United States Pharmacopeia) |
| Dimensions: | 25×13×18 cm |
| Weight: | 3,150 g |
| Manufactured at facilities compliant with: | ISO 9001 |
| Photo | Model | Description |
|---|---|---|
|

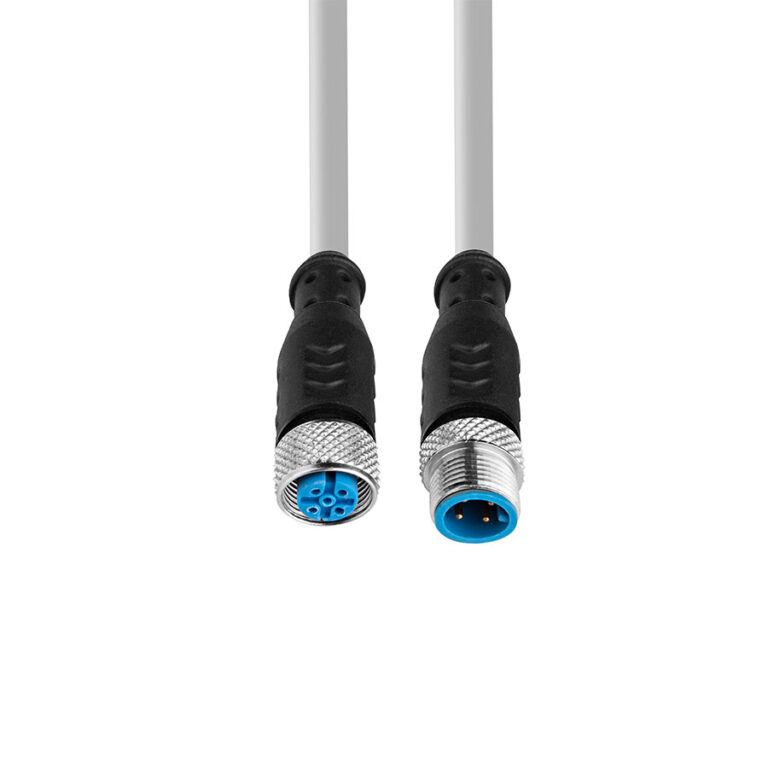

265 | Cable connection between the satellite and the command unit - 1 set of 5 meters |
|
267 | s/s WALL connection for satellite |
|
260 | s/s satellite Contact plate without aspirating head, cover and cable |
|
|
261 | s/s satellite Petri 90 plate without aspirating head, cover and cable |
|
262 | s/s satellite with HEPA FILTER Contact plate without aspirating head, cover and cable |
|
|
263 | s/s satellite with HEPA FILTER Petri 90 plate without aspirating head, cover and cable |
|
371 | Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use. |
|
381 | Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room |
|
180 | IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device's aspiration heads. |
|
175 | Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP. |
|
520 | Ultra-lightweight and compact portable Bluetooth printer with high printing autonomy. Equipped with a paper end sensor and supports printing of the most common barcodes. |
|
394 | Case with high performance characteristics. Ensures safe transportation of devices. |
|
341 | Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs |
|
294 | Bluetooth barcode scanner — dimensions 60x35x15 mm (H), weight 45 g. 1D/2D barcode scanner module (optional, for use in GMP/GLP) |
|
291 | Barcode labels for identifying sampling locations, size 85x55 mm (10 pcs/pack) |
|
421 | TRIO printer paper roll, 57 mm (10 pcs/pack) |
|
|
423 | Thermal paper rolls, size 57 mm (10 pcs/pack). Indelible thermal paper for TRIO printers. |
|
502 | IQ (installation qualification) and OQ (operational qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO. |
|
|
507 | PQ (performance qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO. |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|

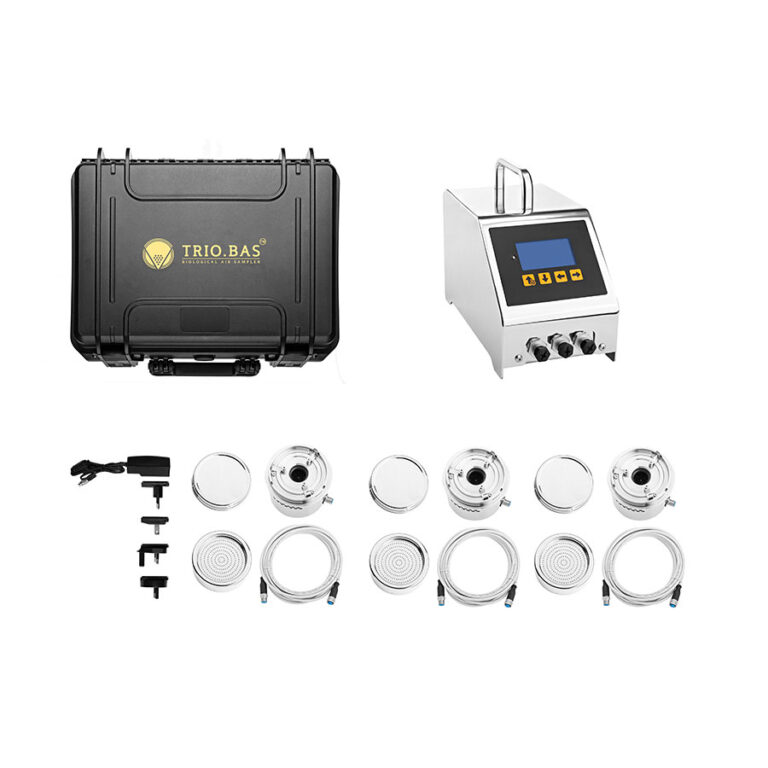

| 850K | Complete set: TRIO.BAS RABS ISOLATOR CM control unit air sampler with Bluetooth 850, 1x s/s satellite CM Petri 90 plate without aspirating head and cable 851, 1x s/s ASPI HEAD Petri CM 830, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x Cable connection between the Satellite and the command unit 265, 1x ROBUSTUS MEDIUM carrying case 394 | Delivery time from 12 weeks | from 7 575$ |
-
+
|
|
| 268K | Complete set: TRIO.BAS RABS ISOLATOR control unit air sampler with Bluetooth 268, 1x s/s Satellite Contact plate without aspirating head and cable 260, 1x s/s ASPI HEAD Contact plate 330, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x Cable connection between the Satellite and the command unit 265, 1x ROBUSTUS MEDIUM carrying case 394 | Delivery time from 12 weeks | from 7 108$ |
-
+
|
|
| 269K | Complete set: TRIO.BAS RABS ISOLATOR control unit air sampler with Bluetooth 269, 1x s/s Satellite Petri 90 plate without aspirating head and cable 261, 1x s/s ASPI HEAD Petri plate 331, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x Cable connection between the Satellite and the command unit 265, 1x ROBUSTUS MEDIUM carrying case 394 | Delivery time from 12 weeks | from 7 108$ |
-
+
|
|
| 270K | Complete set: TRIO.BAS RABS ISOLATOR control unit air sampler with Bluetooth 270, 1x s/s Satellite Contact plate without aspirating head and cable 260, 1x s/s ASPI HEAD Contact plate 330, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x Cable connection between the Satellite and the command unit 265, 1x ROBUSTUS MEDIUM carrying case 394 | Delivery time from 12 weeks | from 7 108$ |
-
+
|
|
| 271K | Complete set: TRIO.BAS RABS ISOLATOR control unit air sampler with Bluetooth 271, 1x s/s Satellite Petri 90 plate without aspirating head and cable 261, 1x s/s ASPI HEAD Petri plate 331, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x Cable connection between the Satellite and the command unit 265, 1x ROBUSTUS MEDIUM carrying case 394 | Delivery time from 12 weeks | from 7 108$ |
-
+
|
|
| 851K | Complete set: 1x s/s satellite CM Petri 90 plate without aspirating head and cable 851, 1x s/s ASPI HEAD Petri CM 830, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x Cable connection between the Satellite and the command unit 265 | Delivery time from 12 weeks | from 2 710$ |
-
+
|
|
| 260K | Complete set: 1x s/s Satellite Contact plate without aspirating head and cable (each) 260, 1x s/s ASPI HEAD Contact plate 330, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x Cable connection between the Satellite and the command unit 265 | Delivery time from 12 weeks | from 2 580$ |
-
+
|
|
| 261K | Complete set: 1x s/s Satellite Petri 90 plate without aspirating head and cable (each) 261, 1x s/s ASPI HEAD Petri plate 331, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x Cable connection between the Satellite and the command unit 265 | Delivery time from 12 weeks | from 2 580$ |
-
+
|
|
| 262K | Complete set: 1x s/s Satellite HEPA Filter Contact plate with 1 box HEPA Filter and without aspirating head and cable (each) 262, 1x s/s ASPI HEAD Contact plate 330, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x Cable connection between the Satellite and the command unit 265 | Delivery time from 12 weeks | from 3 443$ |
-
+
|
|
| 263K | Complete set: 1x s/s Satellite HEPA Filter Petri 90 plate with 1 box HEPA Filter and without aspirating head and cable (each) 263, 1x s/s ASPI HEAD Petri plate 331, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x Cable connection between the Satellite and the command unit 265 | Delivery time from 12 weeks | from 3 443$ |
-
+
|
|
| 268 | TRIO.BAS RABS ISOLATOR control unit air sampler with Bluetooth (100 lts/min) Contact plate with Battery charger 100/240VCA 18VDC 859 mA with adapter for plug SHUKO/UK/USA - and CABLE for transfer data and 1 calibration certificate | Delivery time from 12 weeks | from 4 529$ |
-
+
|
|
| 269 | TRIO.BAS RABS ISOLATOR control unit air sampler with Bluetooth (100 lts/min) Petri 90 plate with Battery charger 100/240VCA 18VDC 859 mA with adapter for plug SHUKO/UK/USA - and CABLE for transfer data and 1 calibration certificate | Delivery time from 12 weeks | from 4 529$ |
-
+
|
|
| 270 | TRIO.BAS RABS ISOLATOR control unit air sampler with Bluetooth (200 lts/min) Contact plate with Battery charger 100/240VCA 18VDC 859 mA with adapter for plug SHUKO/UK/USA - and CABLE for transfer data and 1 calibration certificate | Delivery time from 12 weeks | from 4 529$ |
-
+
|
|
| 271 | TRIO.BAS RABS ISOLATOR control unit air sampler with Bluetooth (200 lts/min) Petri 90 plate with Battery charger 100/240VCA 18VDC 859 mA with adapter for plug SHUKO/UK/USA - and CABLE for transfer data and 1 calibration certificate | Delivery time from 12 weeks | from 4 529$ |
-
+
|
|
| 260 | s/s satellite Contact plate without aspirating head, cover and cable | Delivery time from 12 weeks | from 2 097$ |
-
+
|
|
| 261 | s/s satellite Petri 90 plate without aspirating head, cover and cable | Delivery time from 12 weeks | from 2 097$ |
-
+
|
|
| 262 | s/s satellite with HEPA FILTER Contact plate without aspirating head, cover and cable | Delivery time from 12 weeks | from 2 960$ |
-
+
|
|
| 263 | s/s satellite with HEPA FILTER Petri 90 plate without aspirating head, cover and cable | Delivery time from 12 weeks | from 2 960$ |
-
+
|
|
| 265 | Cable connection between the satellite and the command unit - 1 set of 5 meters | Delivery time from 12 weeks | from 130$ |
-
+
|
|
| 272 | Cable connection between the satellite and the command unit - 1 set of 20 meters | Delivery time from 12 weeks | from 195$ |
-
+
|
|
| 371 | MULTI HOLDER MINI - s/s cart on wheels - 25x35x70h cm - for MONO, DUO, TRIO - stand up holder optional | Delivery time from 12 weeks | from 360$ |
-
+
|
|
| 381 | Cleanroom bag (5x150) - 750 bags | Delivery time from 12 weeks | from 288$ |
-
+
|
|
| 180 | s/s TRIO.BAS IN REST | Delivery time from 12 weeks | from 100$ |
-
+
|
|
| 175 | EASY RACK Contact/Petri | Delivery time from 12 weeks | from 288$ |
-
+
|
|
| 394 | ROBUSTUS MEDIUM carrying case for TRIO.BAS RABS ISOLATOR - 56x43x22h cm | Delivery time from 12 weeks | from 408$ |
-
+
|
|
| 520 | TRIO PRINTER BLUETOOTH - 11x8,5x4,5h cm | Delivery time from 12 weeks | from 612$ |
-
+
|
|
| 421 | Roll paper 57 mm for TRIO PRINTER (10x box) | Delivery time from 12 weeks | from 24$ |
-
+
|
|
| 423 | No erasable thermal paper for TRIO PRINTER (10x box) | Delivery time from 12 weeks | from 56$ |
-
+
|
|
| 294 | Barcode Reader Bluetooth Module 1D - 2D (Optional - APPLICATION FOR GMP/GLP) | Delivery time from 12 weeks | from 835$ |
-
+
|
|
| 291 | Location preset Barcode tag (10xbox) | Delivery time from 12 weeks | from 102$ |
-
+
|
|
| 341 | Daily shift Sterile Aspirating Head (DSHP) for Petri 90 plate - in double sterile bag (20xbox) minimum 4 box | Delivery time from 12 weeks | from 176$ |
-
+
|
|
| 502 | IQ, OQ, documents for DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO | Delivery time from 12 weeks | from 464$ |
-
+
|
|
| 507 | PQ documents for DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO | Delivery time from 12 weeks | from 232$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for TRIO.BAS ISOLATOR RABS using the special form.
You can buy TRIO.BAS ISOLATOR RABS in UAE at a price starting from 4529 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. TRIO.BAS ISOLATOR RABS price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
