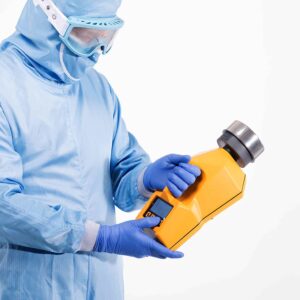

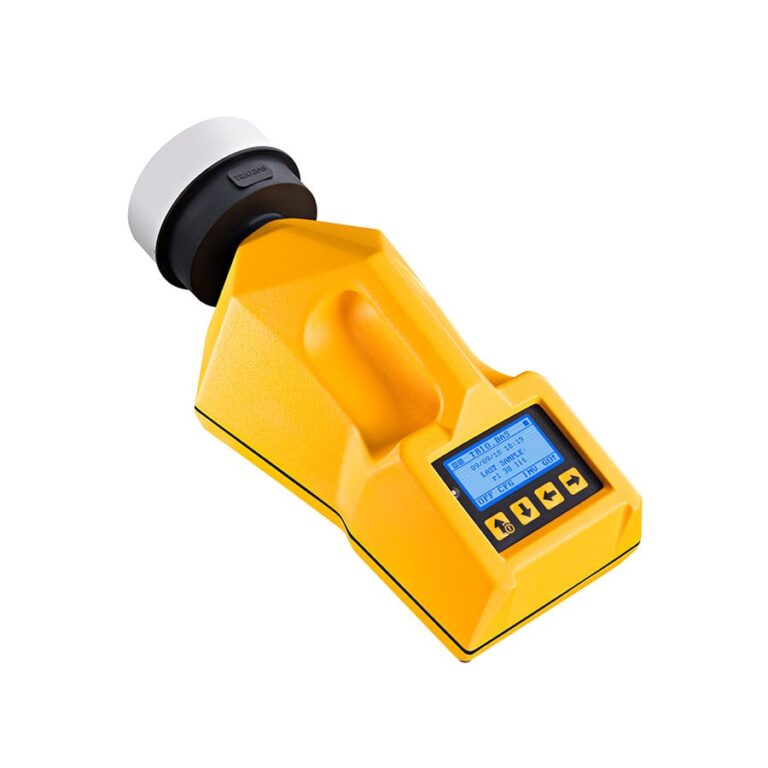

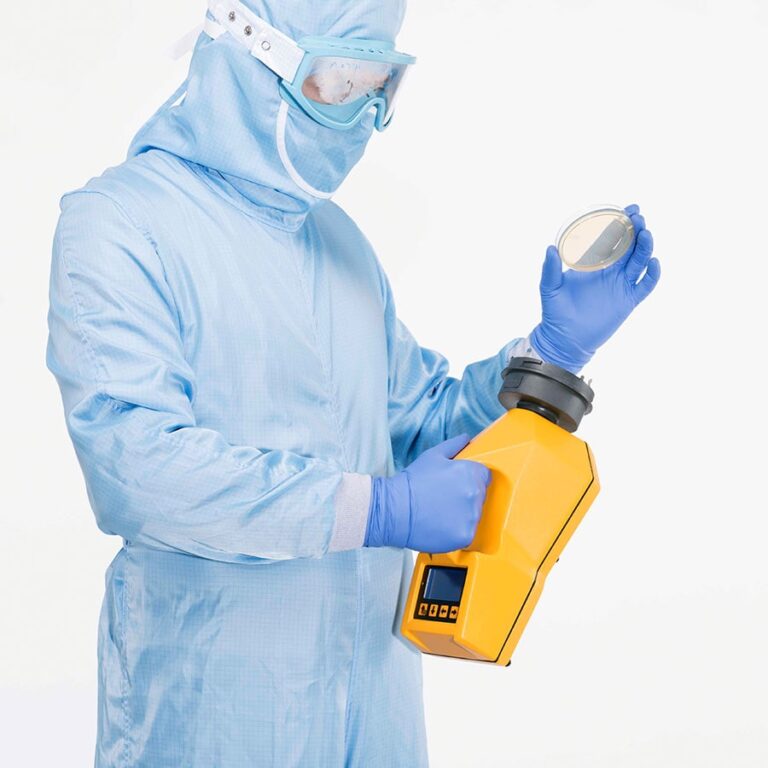

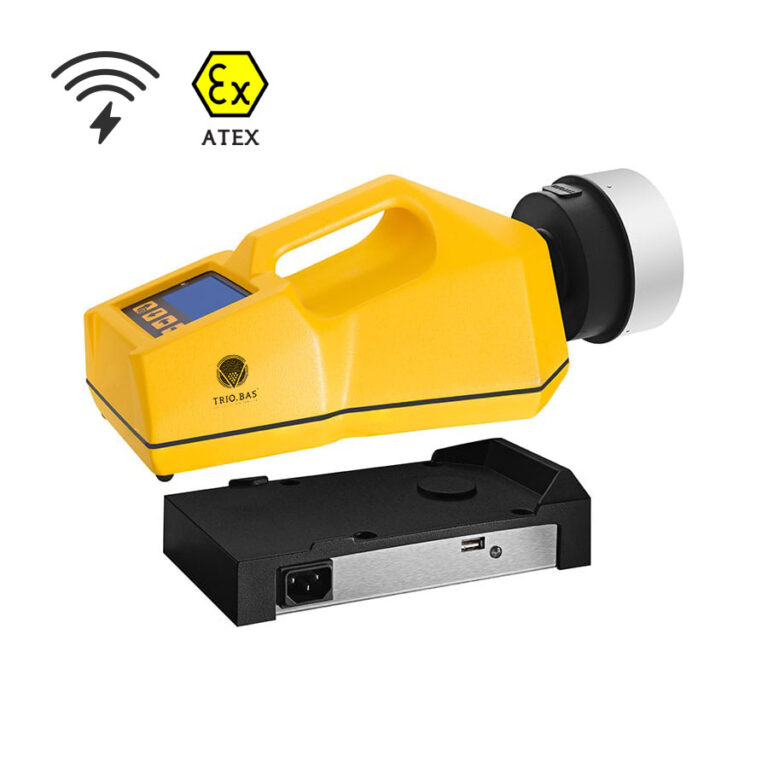

Explosion-proof portable air sampler for work in zones with flammable gases or dust. Design and manufacturing comply with ATEX requirements, ensuring safe operation in potentially explosive atmospheres. Supports induction charging, compatible with both Petri dishes and Contact plates, offers a selectable flow rate of 100 or 200 L/min.
Made in Italy. brand TRIO.BAS, model MONO ATEX
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $9 169
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
ATEX refers to the danger of explosive atmospheres caused by the presence of combustible gases or flammable dust mixed with air, which can lead to a risk of explosion. ATEX induction air samplers are designed to comply with ATEX certification.
In some pharmaceutical and food manufacturing facilities, sampling and analytical instruments may be operated in production areas and storage areas where flammable materials are present in the form of gas, vapor, mist, or aerosol. The presence of such substances can create an explosive atmosphere, forming a flammable mixture in the event of an ignition source.
An explosive atmosphere can occur in the presence of combustible dust, flammable gases (furnace fuel), flammable liquids and vapors (alcohol-based flavorings, cooking/coating oils), and solvents in analytical laboratories. A dangerous explosion occurs when combustible dust comes into contact with an ignition source such as electrostatic discharge, mechanical overheating, chemical reactions, or heat from surrounding surfaces.
Air sampler with a single aspiration chamber for users who need wired data transfer due to security policies that prohibit wireless data transfer. Portable active microbiological air sampler with a single aspiration chamber and induction charging. TRIO.BAS Mono ATEX is designed for use in environments with high hygiene and traceability requirements. Supports operation with Petri dishes or contact dishes at an air flow rate of 100 or 200 l/min.
Features
Main Applications: pharmaceutical aseptic filling suites, cleanrooms, biotechnology, IVF clinics, operating theatres, hospital pharmacies, blood banks, clinics, microbiological labs, HVAC building monitoring, environmental labs, healthcare ambient monitoring, and health authorities.
TRIO.BAS ATEX microbial air samplers are built with components and production processes equivalent to ATEX (explosion proof) certification.
| Body Type | Shockproof technopolymer body with antibacterial surface properties |
| Standards | ISO 14698-1, EN 17141, GMP, and GAMP |
| Aspirating Head Type | Stainless steel with quick bayonet closure, identification number, and stainless steel cover to prevent contamination |
| Aspirated Air Volume: | 100 or 200 L/min Selectable volumes from 30 to 6,000 liters and 17 preset programs |
| Aspirating Chamber: | Suitable for 55 mm Contact plates or 90 mm Petri dishes |
| Auto-calibration: | Electronic power/flow control in real time |
| Battery Cycle Autonomy: | 30,000 liters |
| Language: | English, French, German, Spanish, Italian |
| Operative Aspirating Cycles: | Manual and Automatic |
| Data Storage: | Memory storage of up to 1,000 samplings |
| Configuration: | 100 users and 100 places |
| Marking: | CE |
| Dimensions: | 33x16x15 cm |
| Weight: | 1,440 g |
| Photo | Model | Description |
|---|---|---|
|
520 | Ultra-lightweight and compact portable Bluetooth printer with high printing autonomy. Equipped with a paper end sensor and supports printing of the most common barcodes. |
|
421 | TRIO printer paper roll, 57 mm (10 pcs/pack) |
|
|
423 | Thermal paper rolls, size 57 mm (10 pcs/pack). Indelible thermal paper for TRIO printers. |
|
294 | Bluetooth barcode scanner — dimensions 60x35x15 mm (H), weight 45 g. 1D/2D barcode scanner module (optional, for use in GMP/GLP) |
|
291 | Barcode labels for identifying sampling locations, size 85x55 mm (10 pcs/pack) |
|
340 | Daily Shift sterile replacement suction head for contact cups (55 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs |
|
|
341 | Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs |
|
395 | These Carrying cases have very performing characteristics. They ensure the safe transport of the instruments. |
|
381 | Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room |
|
175 | Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP. |
|
180 | IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device's aspiration heads. |
|
372 | MAXI cart with multifunctional holder — stainless steel cart on wheels, complete with table holder and vertical pull-out support with hook. Dimensions: 25x35x70 cm (H) (height adjustment range: 100 to 210 cm). Designed for MONO, DUO, and TRIO models. |
|
371 | Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use. |
|
387 | The floor tripod is designed for convenient and safe sampling at medium and high heights. Lightweight and height-adjustable up to 366 cm, it ensures a stable setup of the air sampler and facilitates operator activity with quick fixation without screwing. Ideal for mobile use in areas with hard-to-reach sampling points. |
|
523 | Stainless steel floor stand. Adjustable height from 150 to 200 cm ensures convenient sampling at medium height. Supports direct attachment of the sampler or installation of a holder-stand (optional). A ball joint allows you to fix the device and adjust its position. |
|
530 | Wall/desk mount. Can be placed on any work surface or mounted on a wall to hold the air sampler in the direction of the air flow coming out of the supply vent. |
|
521 | Vertical stainless steel hook with handle — for mounting on a table, trolley, or floor stand. Compatible with MINI, MONO, DUO, and TRIO models. Dimensions: 12x15x25 cm (H*). |
|
376 | MAXI stand holder. Made of durable high-density technopolymer. Allows for vertical installation of the sampler with one hand. Compatible with any work surface, tripods, and the MINI trolley. Allows for easy charging of the device and replacement of cups without removing them from the mount. |
|
501 | IQ (installation qualification) and OQ (operational qualification) documents for: MONO |
|
|
506 | PQ (performance qualification) documents for: MONO |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|

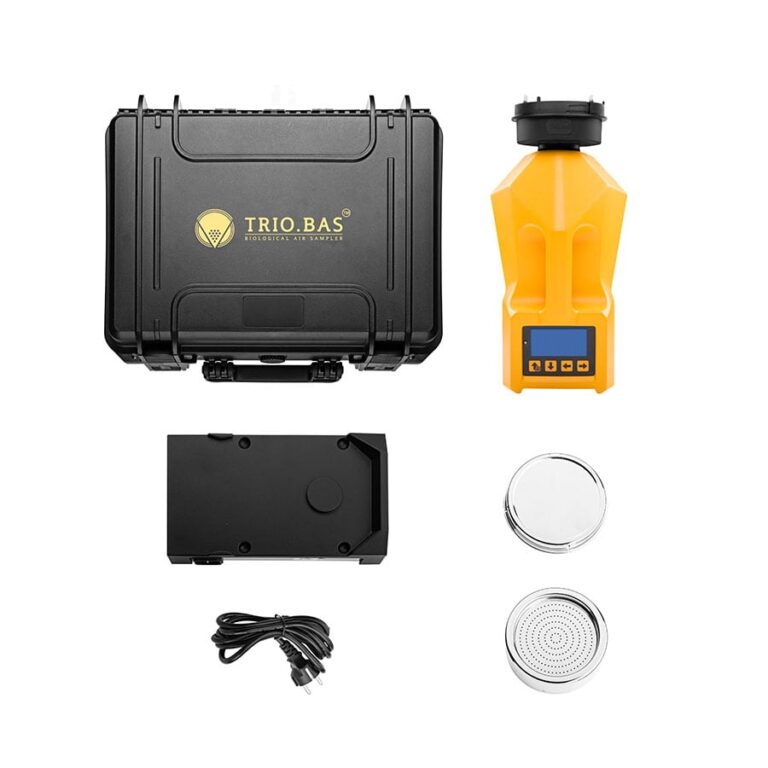

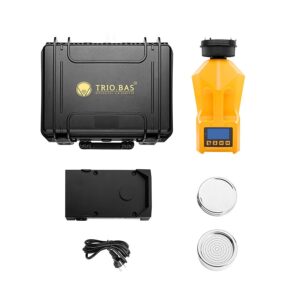

| 207K | Complete set: TRIO.BAS MONO BLUETOOTH ATEX Air sampler 207, 1x Base Station Induction battery charger 310, 1x s/s ASPI HEAD Contact plate 330, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x ROBUSTUS STANDARD carrying case 395 | Delivery time from 12 weeks | from 10 616$ |
-
+
|
|
| 208K | Complete set: TRIO.BAS MONO BLUETOOTH ATEX Air sampler 208, 1x Base Station Induction battery charger 310, 1x s/s ASPI HEAD Petri plate 331, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x ROBUSTUS STANDARD carrying case 395 | Delivery time from 12 weeks | from 10 616$ |
-
+
|
|
| 209K | Complete set: TRIO.BAS MONO BLUETOOTH ATEX Air sampler 209, 1x Base Station Induction battery charger 310, 1x s/s ASPI HEAD Contact plate 330, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x ROBUSTUS STANDARD carrying case 395 | Delivery time from 12 weeks | from 10 616$ |
-
+
|
|
| 210K | Complete set: TRIO.BAS MONO BLUETOOTH ATEX Air sampler 210, 1x Base Station Induction battery charger 310, 1x s/s ASPI HEAD Petri plate 331, 1x COVER HEAD s/s to protect ASPI HEAD 465, 1x ROBUSTUS STANDARD carrying case 395 | Delivery time from 12 weeks | from 10 616$ |
-
+
|
|
| 207 | TRIO.BAS MONO BLUETOOTH ATEX (Explosion proof) air sampler (100 lts/min) Contact plate and 1 calibration certificate | Delivery time from 12 weeks | from 9 169$ |
-
+
|
|
| 208 | TRIO.BAS MONO BLUETOOTH ATEX (Explosion proof) air sampler (100 lts/min) Petri 90 plate and 1 calibration certificate | Delivery time from 12 weeks | from 9 169$ |
-
+
|
|
| 209 | TRIO.BAS MONO BLUETOOTH ATEX (Explosion proof) air sampler (200 lts/min) Contact plate and 1 calibration certificate | Delivery time from 12 weeks | from 9 169$ |
-
+
|
|
| 210 | TRIO.BAS MONO BLUETOOTH ATEX (Explosion proof) air sampler (200 lts/min) Petri 90 plate and 1 calibration certificate | Delivery time from 12 weeks | from 9 169$ |
-
+
|
|
| 376 | STAND UP holder for MINI-MONO-DUO - technopolymer - for table, cart, floor tripod - size 15x11x9h cm | Delivery time from 12 weeks | from 353$ |
-
+
|
|
| 521 | s/s VERTICAL HOOK with KNOB - for table, cart, floor tripod - compatible with MINI, MONO, DUO, TRIO - size 12x15x25h cm | Delivery time from 12 weeks | from 201$ |
-
+
|
|
| 530 | s/s WALL/TABLE HOLDER with KNOB - compatible with MINI, MONO, DUO, TRIO - size 2x13x16h cm | Delivery time from 12 weeks | from 183$ |
-
+
|
|
| 371 | MULTI HOLDER MINI - s/s cart on wheels - 25x35x70h cm - for MONO, DUO, TRIO - stand up holder optional | Delivery time from 12 weeks | from 360$ |
-
+
|
|
| 372 | MULTI HOLDER MAXI - s/s cart on wheels with TABLE HOLDER and a VERTICAL EXTENSIBLE SUPPORT HOOK - size 25x35x70h cm (min extension 100 - max 210 cm) - for MONO, DUO, TRIO | Delivery time from 12 weeks | from 947$ |
-
+
|
|
| 387 | MAXI FLOOR TRIPOD - aluminum - (extension min125 cm - max 366 cm) | Delivery time from 12 weeks | from 369$ |
-
+
|
|
| 523 | s/s FLOOR TRIPOD (extension min 150 cm - max 200 cm) | Delivery time from 12 weeks | from 817$ |
-
+
|
|
| 381 | Cleanroom bag (5x150) - 750 bags | Delivery time from 12 weeks | from 288$ |
-
+
|
|
| 501 | IQ, OQ, documents for MONO | Delivery time from 12 weeks | from 464$ |
-
+
|
|
| 506 | PQ documents for MONO | Delivery time from 12 weeks | from 232$ |
-
+
|
|
| 180 | s/s TRIO.BAS IN REST | Delivery time from 12 weeks | from 100$ |
-
+
|
|
| 175 | EASY RACK Contact/Petri | Delivery time from 12 weeks | from 288$ |
-
+
|
|
| 395 | ROBUSTUS STANDARD carrying case - 48x38x17h cm | Delivery time from 12 weeks | from 223$ |
-
+
|
|
| 520 | TRIO PRINTER BLUETOOTH - 11x8,5x4,5h cm | Delivery time from 12 weeks | from 612$ |
-
+
|
|
| 421 | Roll paper 57 mm for TRIO PRINTER (10x box) | Delivery time from 12 weeks | from 24$ |
-
+
|
|
| 423 | No erasable thermal paper for TRIO PRINTER (10x box) | Delivery time from 12 weeks | from 56$ |
-
+
|
|
| 294 | Barcode Reader Bluetooth Module 1D - 2D (Optional - APPLICATION FOR GMP/GLP) | Delivery time from 12 weeks | from 835$ |
-
+
|
|
| 291 | Location preset Barcode tag (10xbox) | Delivery time from 12 weeks | from 102$ |
-
+
|
|
| 340 | Daily Shift Sterile Aspirating Head (DSHR) for Contact plate - in double sterile bag (20xbox) minimum 4 box | Delivery time from 12 weeks | from 176$ |
-
+
|
|
| 341 | Daily shift Sterile Aspirating Head (DSHP) for Petri 90 plate - in double sterile bag (20xbox) minimum 4 box | Delivery time from 12 weeks | from 176$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for TRIO.BAS MONO ATEX using the special form.
You can buy TRIO.BAS MONO ATEX in UAE at a price starting from 9169 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. TRIO.BAS MONO ATEX price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
