Device fabricated from AISI 316 stainless steel for standard passive microbiological air monitoring by sedimentation method. Designed for placement on table under unidirectional airflow. Fully autoclavable, can be installed on tripod or other floor supports.
Made in Italy. brand TRIO.BAS, model TRIO.SETTLE TABLE
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $705
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
According to GMP rules, in aseptic operation zones microbiological monitoring must be performed frequently using a combination of methods, including settle plates, volumetric air sampling, glove and surface sampling.
Passive sampling in combination with active sampling is recognized by regulatory organizations as useful for assessing microbial quality of air environment. During passive sampling or surface sampling, air samplers are not required. However, there are special tools for standardizing operations.
The sedimentation method is applied with a culture plate in horizontal or inclined position depending on the direction of unidirectional airflow. In horizontal position, airflow can be obstructed, creating slight turbulence over agar surface, which can deflect viable particles from agar surface. Inclined position of Petri dish allows air to impact agar surface and pass without disturbances.
For passive sampling, operator can use SETTLE TABLE, fabricated from stainless steel and allowing precise determination of open plate placement location for specified time. After exposure, plate is incubated by standard method. Recommended medium — Tryptic Soy Agar (TSA). Maximum exposure time — 4 hours (90 mm Petri dishes) according to WHO guidelines.
Settle plate exposure in unidirectional airflow conditions

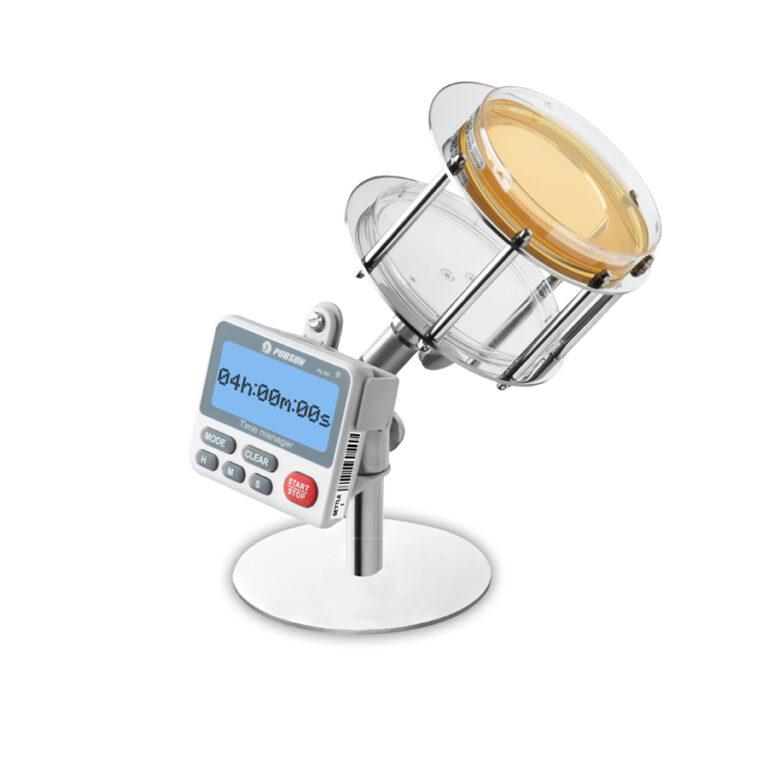

TRIO.SETTLE FOR TABLE is an adjustable device for standardization, testing and counting of microorganisms during passive air monitoring by settle plate method. Passive sampling provides quantitative analysis of microorganisms deposited on agar plate surface during exposure period. Can be mounted on tripod or other support devices. Fabricated from AISI 316 stainless steel, fully autoclavable. Validated according to EN 17141.
| Material | Stainless steel AISI 316 |
| Upper disk | For placement of open culture plate during sampling |
| Lower disk | For placement of plate lid |

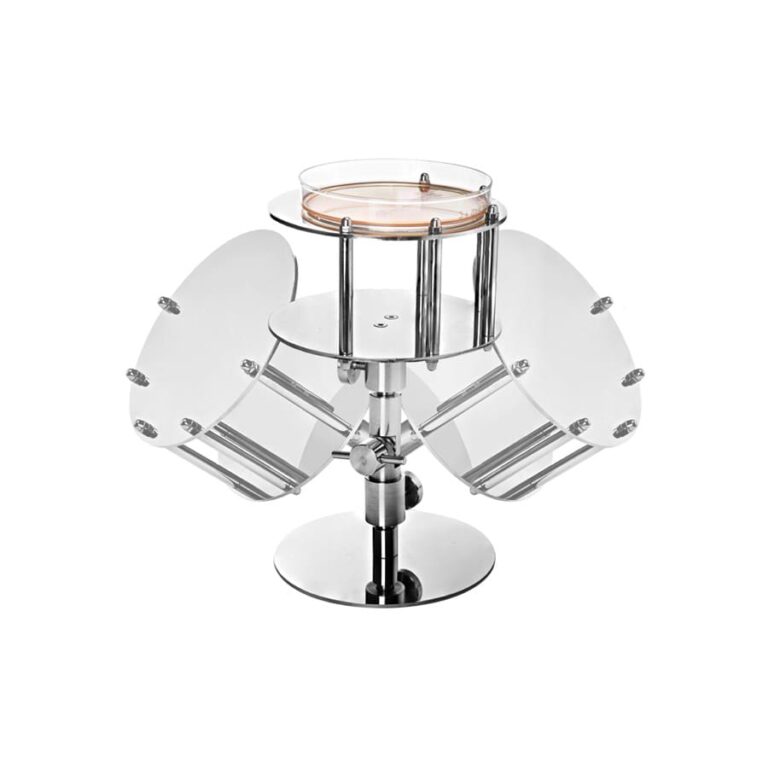

| Hinge system | For changing agar angle relative to flow direction (eliminates turbulence) |
| Mounting system | To tripod or base |
| Base | Tabletop |
| Autoclavability | Fully autoclavable |
| Functional advantage | Ideally standardizes plate position and reduces contamination risk during sampling |
| Validation | EN 17141 |
| Recommended culture medium | Tryptic Soy Agar (TSA) |
| Maximum exposure time | 4 hours (for 90 mm Petri dishes according to WHO) |
| Result measurement unit | CFU/Exposure time |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| 367 | s/s settle PASSIVE TABLE | Delivery time from 12 weeks | from 705$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for TRIO.BAS TRIO.SETTLE TABLE using the special form.
You can buy TRIO.BAS TRIO.SETTLE TABLE in UAE at a price starting from 705 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. TRIO.BAS TRIO.SETTLE TABLE price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
