Digital instrument designed for compressed gas sampling in cleanrooms and verification of microbiological air sampler flow rate accuracy. It operates exclusively at 100 l/min flow rate. Suitable for air and nitrogen at 1–6 bar pressure and 100 l/min flow rate.
Made in Italy. brand TRIO.BAS, model VERIGAS
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $3 888
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

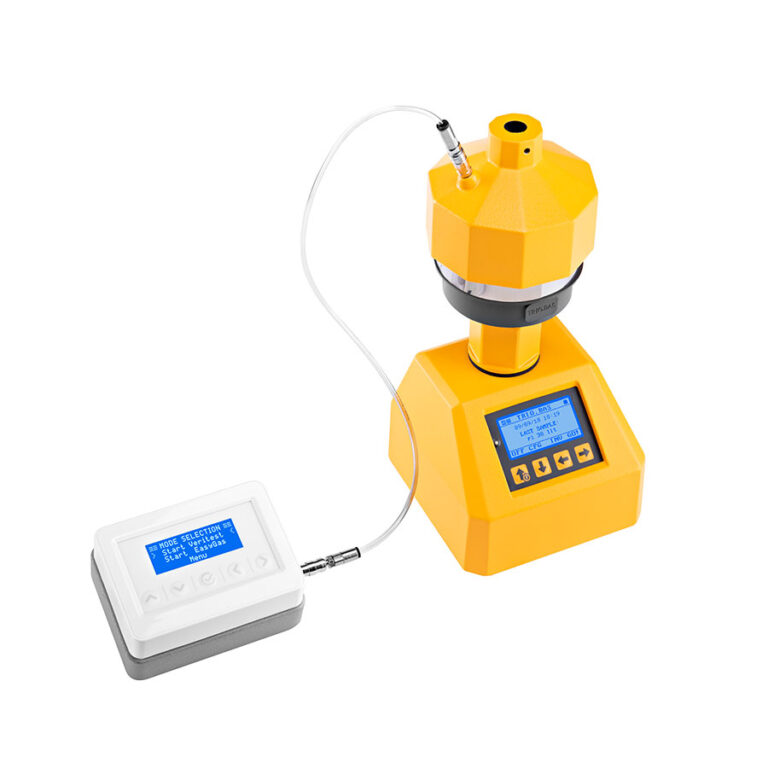

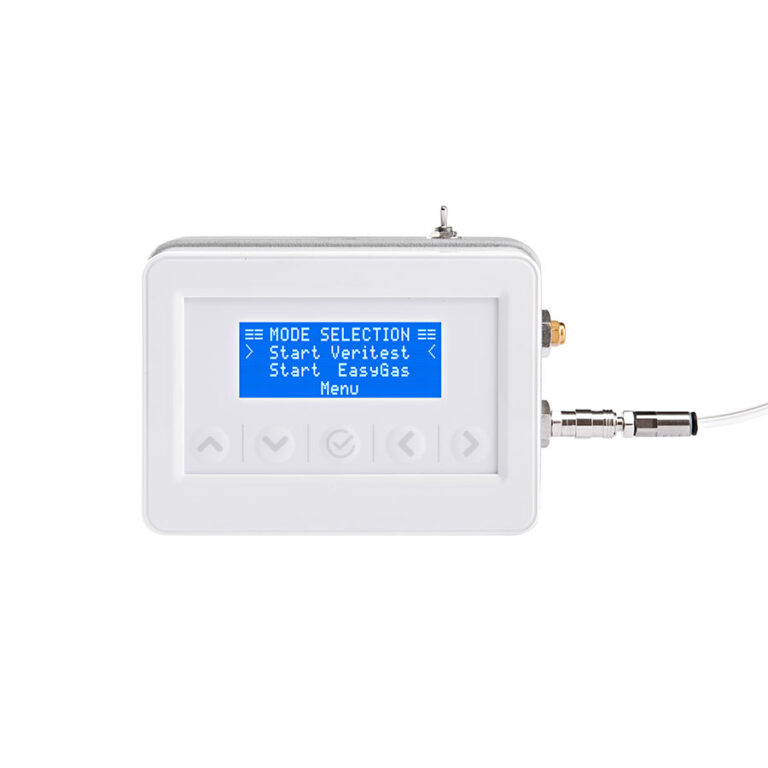

VERIGAS consists of one digital control unit with tube for connecting measurement bells and two different measurement bells designed for performing two different tests:
Features
Application
Pharmaceuticals, cleanrooms, biotechnology, fermentation, medical devices, stem cells
VERIGAS is an auxiliary instrument for TRIO.BAS air sampler. The system measures pressure change created by sampler during gas aspiration through bell (for EASYGAS — stainless steel, for VERITEST — technopolymer) on aspirating head. Differential pressure sensor measures this change and compares it with reference values.
For EASYGAS:
Compressed gas flow is regulated by digital control unit (flowmeter function) before entering the air sampler.

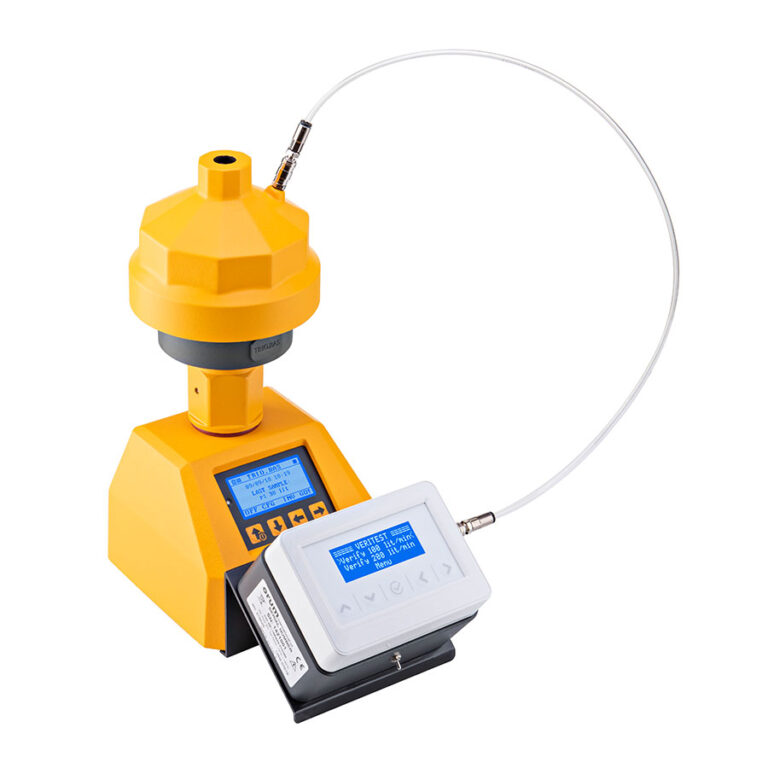

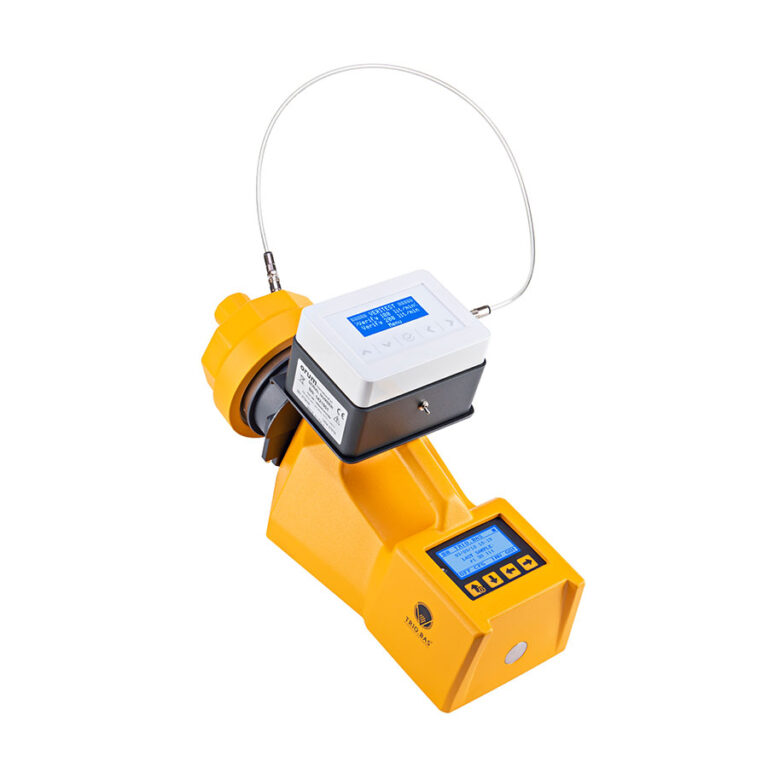

For VERITEST:
Result is displayed on control unit at test completion:
OK (sampler is calibrated), WARNING or ERROR (sampler is not calibrated according to calibration specifications).

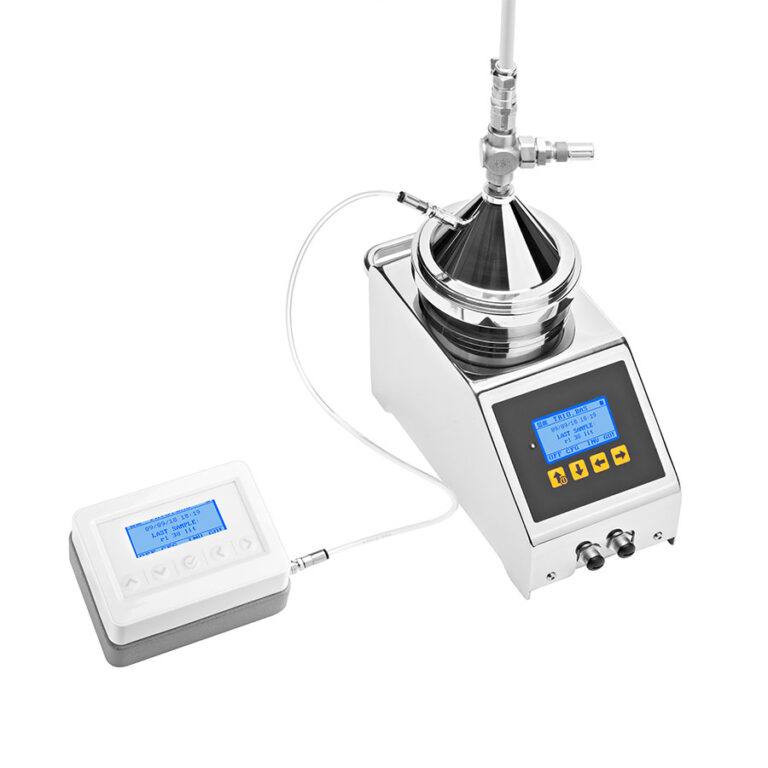

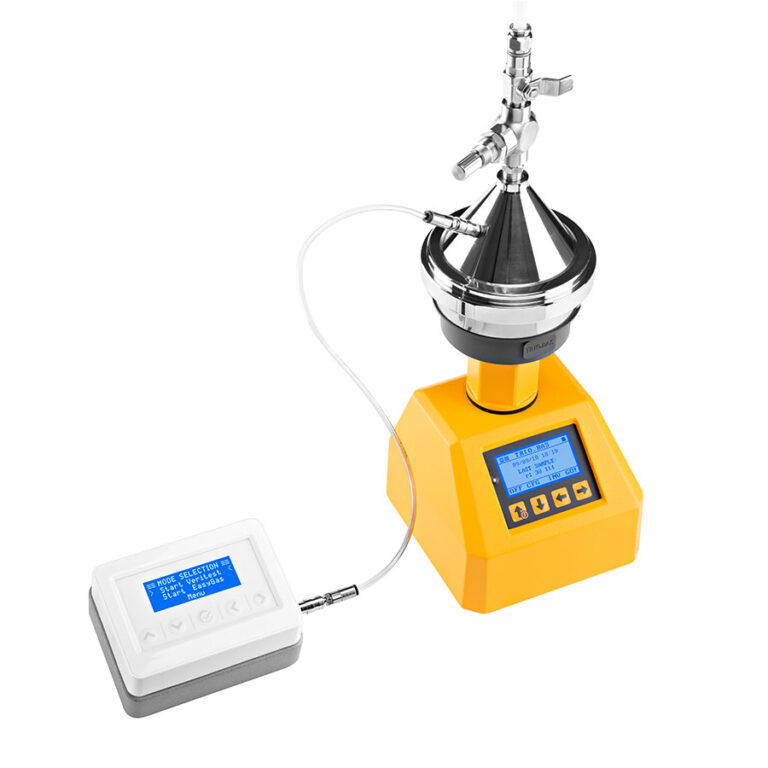

EASYGAS verifies that compressed air contacting with product does not contain microbiological contamination in sterile or aseptic conditions, such as cleanrooms. Any air sampler is easily and aseptically connected to compressed gas outlet. Before supply to TRIO.BAS, flow is regulated by flow rate valve. Data is transferred via Bluetooth/cable to PC through software compliant with GMP/GLP. 1,000 liters of compressed air/gas impacts on 90 mm agar Petri dish / Contact plate for microorganism capture. Can be used with TRIO.BAS, AIRBIO and MULTIFLEX air samplers.
Standard Operating Procedures (SOP) are available in Application Notes section.
| Materials: | For EASYGAS: Bell, valve and regulator are fabricated from AISI 316 stainless steel. Bell gasket — silicone. All components are autoclavable. For VERITEST: Bell is fabricated from technopolymer and is designed for air flow control during routine activities. |
| Aspiration volume: | EASYGAS: 100 l/min VERITEST: 100/200 l/min |
| Inlet pressure: | 1 ÷ 6 bar |
| Construction | Compact and mobile |
| Compatibility | With 90 mm Petri dishes and 55 mm Contact plates |
| Power supply: | From 1.5 V battery (does not require mains connection) |
| Control unit dimensions: | 120×80×80 mm |
| Dimensions — Stainless steel bell: | Ø 80×200 mm — weight 1,200 g. |
| Dimensions — Technopolymer bell: | Ø 100×110 mm — weight 300 g. |
| Manufactured at facilities certified to | ISO 9001 |
| Documentation | IQ/OQ/PQ is provided |
| Complies with standards | ISO 14698-1, EN 17141, ISO 8573-7 and FDA requirements |
| Photo | Model | Description |
|---|---|---|
|
371 | Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use. |
|
381 | Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room |
|
180 | IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device's aspiration heads. |
|
175 | Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP. |
|
394 | These Carrying cases have very performing characteristics. They ensure the safe transport of the instruments. |
|
340 | Daily Shift sterile replacement suction head for contact cups (55 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs |
|
|
341 | Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs |
|
513 | IQ (installation qualification) and OQ (operational qualification) documents for: FLUGAS VERIGAS |
|
|
514 | PQ (performance qualification) documents for: FLUGAS VERIGAS |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|

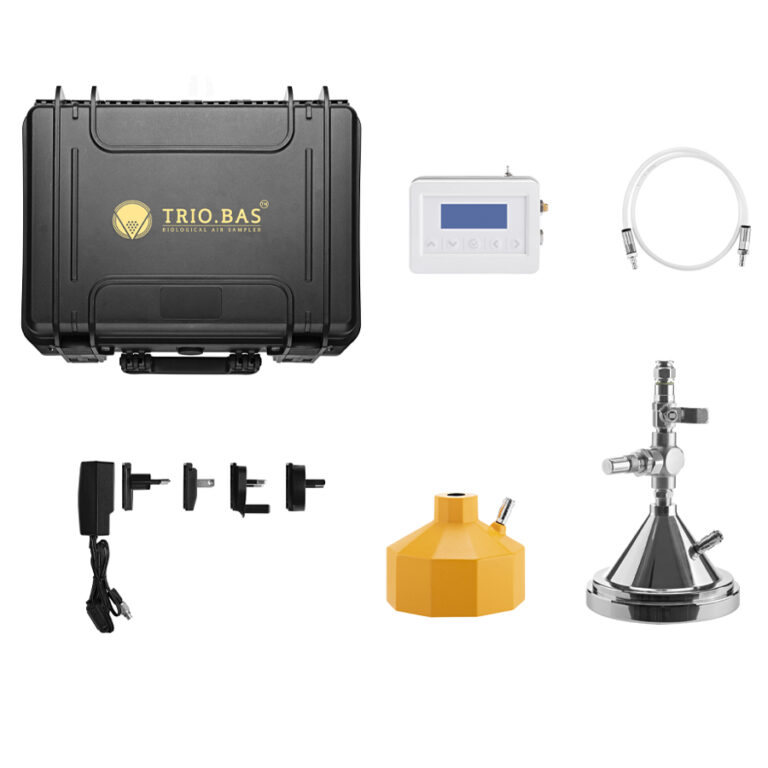

| 599 | VERIGAS for compressed gas test (EASYGAS) and air flow rate check (VERITEST) with carrying case | Delivery time from 12 weeks | from 3 888$ |
-
+
|
|
| 371 | MULTI HOLDER MINI - s/s cart on wheels - 25x35x70h cm - for MONO, DUO, TRIO - stand up holder optional | Delivery time from 12 weeks | from 360$ |
-
+
|
|
| 381 | Cleanroom bag (5x150) - 750 bags | Delivery time from 12 weeks | from 288$ |
-
+
|
|
| 180 | s/s TRIO.BAS IN REST | Delivery time from 12 weeks | from 100$ |
-
+
|
|
| 175 | EASY RACK Contact/Petri | Delivery time from 12 weeks | from 288$ |
-
+
|
|
| 394 | ROBUSTUS MEDIUM carrying case for TRIO.BAS RABS ISOLATOR - 56x43x22h cm | Delivery time from 12 weeks | from 408$ |
-
+
|
|
| 340 | Daily Shift Sterile Aspirating Head (DSHR) for Contact plate - in double sterile bag (20xbox) minimum 4 box | Delivery time from 12 weeks | from 176$ |
-
+
|
|
| 341 | Daily shift Sterile Aspirating Head (DSHP) for Petri 90 plate - in double sterile bag (20xbox) minimum 4 box | Delivery time from 12 weeks | from 176$ |
-
+
|
|
| 513 | IQ, OQ, documents for FLUGAS VERIGAS | Delivery time from 12 weeks | from 464$ |
-
+
|
|
| 514 | PQ documents for FLUGAS VERIGAS | Delivery time from 12 weeks | from 232$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for TRIO.BAS VERIGAS using the special form.
You can buy TRIO.BAS VERIGAS in UAE at a price starting from 3888 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. TRIO.BAS VERIGAS price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
