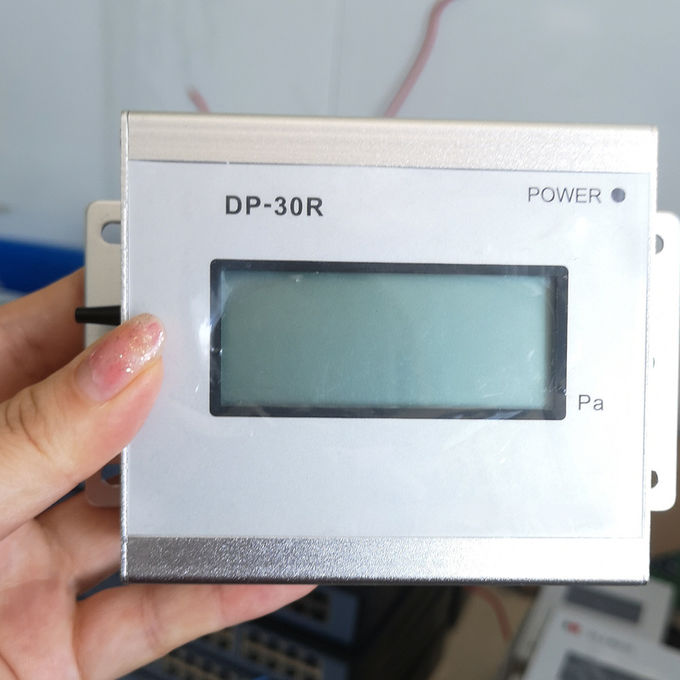

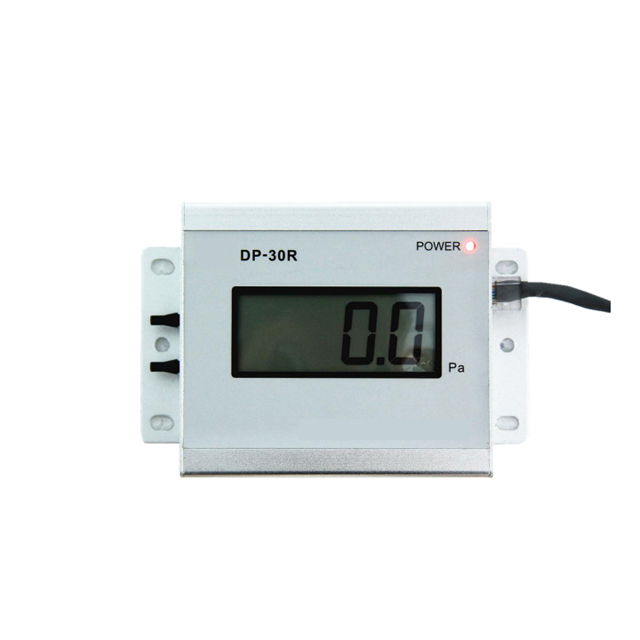

Zetron DP-30R Differential Pressure Sensor

DP-30R Differential Pressure Sensor can quickly measure the pressure diifference of air or non-corrosive gas and display them with 4-bits LED liquid crystal with the design of advanced lines. We can support OEM/ODM service.

			int(24040)
NULL


Made in China. brand ZETRON, model DP-30R

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

price По запросу

Available

Available

Download the questionnaire
Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Descriptions of Zetron DP-30R

DP-30R Differential Pressure Sensor has the characteristics of stable and reliable quality,high precision,and is widely used in electronic,aerospace and other production and scientific research departments.

Features:

  • Portable, small size, easy to use
  • Anti vibration, low drift
  • Solid aluminum alloy shell, levels of protection reaches IP65
  • 4-bit LED liquid crystal display, which reads intuitively and clearly
  • The scene can be corrected directly at zero
  • Corrections of temperature drift can be made point by point according to temperature variation
  • Complex filtering algorithm makes the degree more stable
  • Standard MODBUS RTU 485 output
  • Comply with GMP standard of clean room and FDA standard of EU and USA

Technical specifications of Zetron DP-30R

Model DP-30 R
Sampling rate 0.5 s
Maximum pressure 100 psi
Test accuracy of differential pressure ≤±0.5 % FS (0-125 Pa, 0-250 Pa)

≤±0.25 % FS (0-500 Pa, 0-1000 Pa, 0-2500 Pa)

Test range of differential pressure -5~125 Pa
Test range Temperature:-10~50 ℃;

Humidity:≤85 % RH

Power supply 24 VDC±20%
Communication protocol Modbus RTU
Dimension 135 x 91 x 37 (mm)
Net weight 0.23 Kg
Levels of protection IP65
Expand Table

User Guide and Instruction manual for ZETRON DP-30R

You can request the necessary certificates, documentation, instructions and user guide for ZETRON DP-30R using the special form.

You can buy ZETRON DP-30R in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email . ZETRON DP-30R price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
