FIT-550 filter integrity tester is suitable for testing the integrity of filters to determine whether the filtration accuracy of the selected filter material meets the requirements, whether the filter material is damaged, and whether the sealing of the filter is intact, so as to ensure that the filter can operate normally as required.
Made in China. brand ZETRON, model FIT-550
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $11 250
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

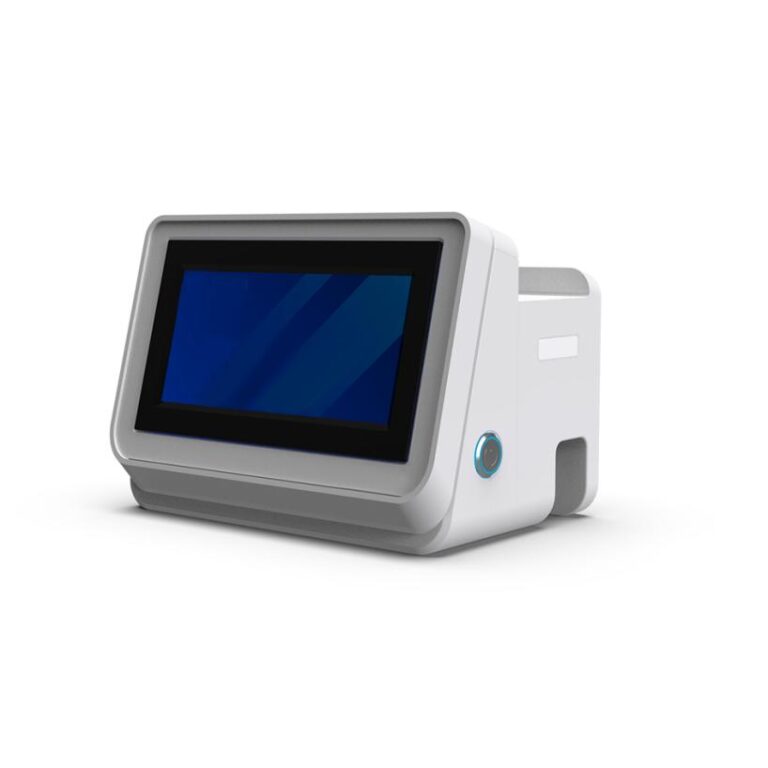

FIT-550 is a new generation of automatic filter integrity tester controlled by a microcomputer. It can directly detect the bubble point and pressure decay value of the filter element and filter membrane, and can also indirectly detect the diffusion flow and water intrusion value. The instrument combines advanced test circuits and precision The algorithm software automatically tests the integrity of the filter and has the characteristics of high test accuracy, good reproducibility, simple and convenient operation, etc.
FIT-550 The tester adopts 10.4″ backlit digital LCD display; Chinese menu and prompts, real-time display of test data The test results and test curves can be printed to monitor the entire test process and help analyze the performance of the filter membrane and filtration system. The large internal storage space can store 50 sets of test results and 50 sets of test parameters. The test process is only carried out upstream of the filter, without contaminating the downstream of the filter, and is particularly suitable for the testing of sterilizing filters.
This tester can be widely used in medicine, bioengineering, food and beverage, microelectronics and other industries. It is also a routine instrument for filter manufacturers to test filters.
Features
Application
Suitable for multi filters:
| Power supply | 110V-240V AC, 50/60Hz; 100W |
| Max operation pressure | 9999 mbar |
| Min air inlet pressure | 100 mbar |
| Test range | Test pressure 300-7000mbar |
| Test accuracy | Sensitivity: ±1 mbar; Bubble point: ±50 mbar; Diffusion flow test: 0.1ml/min Water intrusion test: 0.01ml/min |
| Operating conditions | Ambient temperature: 0℃-60℃; Relative humidity: 10-80% |
| Test time | Basic bubble point test: 4 min±2min; Diffusion flow test: 7±2min; Water immersion flow test: 7±2min; System air tightness: 3±1min |
| Printing function | Printing test conditions, test results, test curves |
| Display | 10.4inch Color touch screen |
| Storage | 32G storage space, store 1 million data |
| Dimensions | 240(W) x 320(D) x 260(H)mm, 4.5kg |
| Output | USB, support RS232, 4-20mA customization |
| Printer | Inner printer |
| Warranty time | One year |
You can request the necessary certificates, documentation, instructions and user guide for ZETRON FIT-550 using the special form.
You can buy ZETRON FIT-550 in UAE at a price starting from 11250 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. ZETRON FIT-550 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
