Application
Made in China. brand ZETRON, model FSC-A6
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

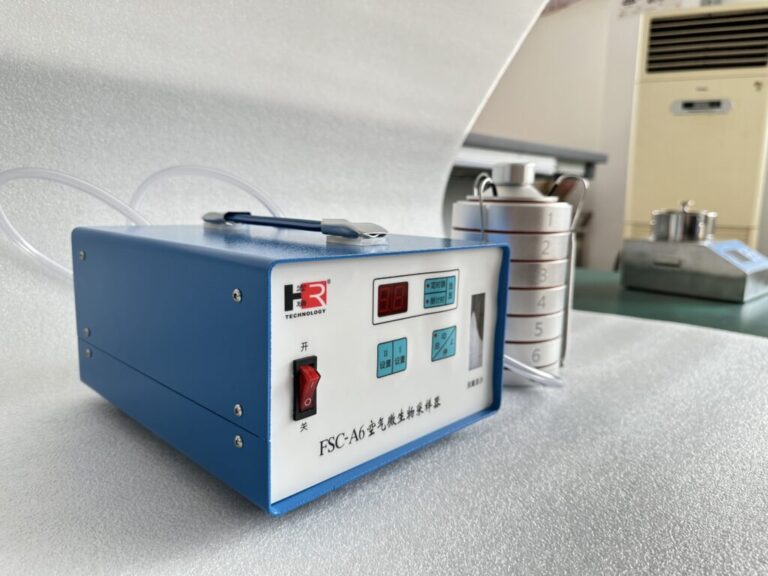

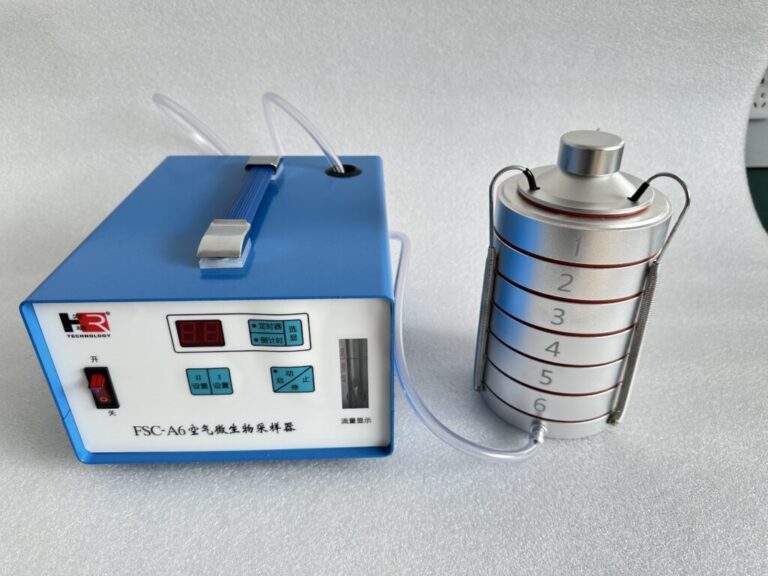

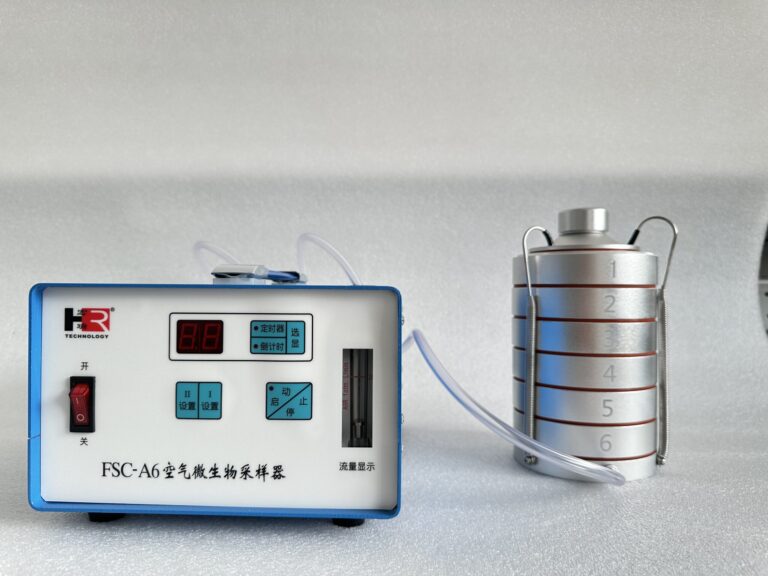

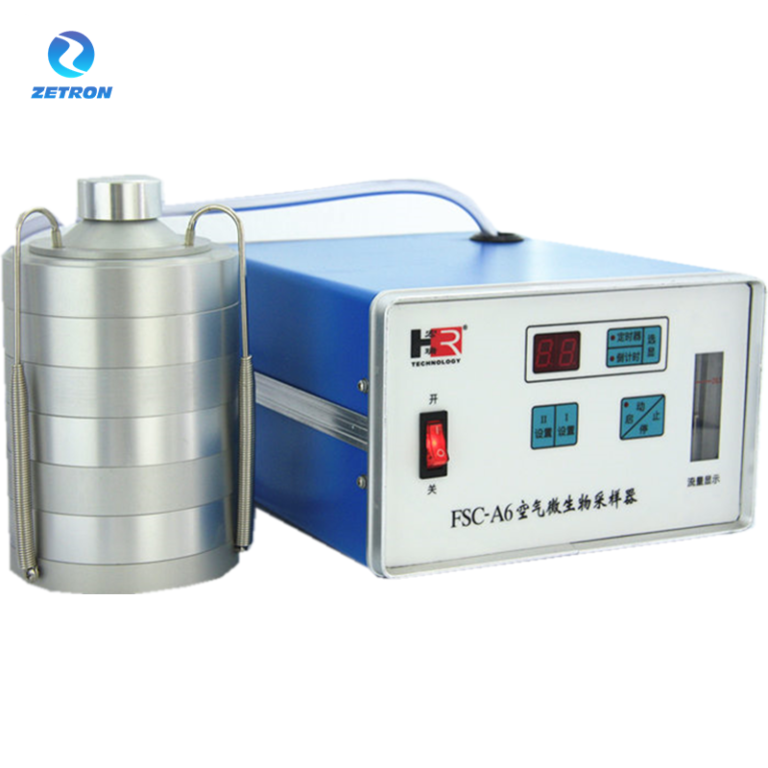

FSC-A6 six-stage sieve impact air microbial sampler is composed of an impactor, a main machine, and a microorganism sampler. The impactor is an aluminium alloy disc with 6 layers of tiny holes.
The discs are placed under the agar dish, and there is a sealing ring between each disc, and the discs are firmly connected together by three spring hooks.The discs are held together by three spring-loaded hooks.
Each disc has 400 small, precisely sized holes arranged in a circular pattern, decreasing in size from layer to layer of diminishing layers, with a standard sampling flow rate of 1 cubic foot per minute.
When the airflow containing microbial particles enters the sampling port in the top layer, the microbial particles of different sizes will be impacted by the aerodynamic characteristics of the microbial particles of different sizes impact on the corresponding agar surfaces according to aerodynamic characteristics.
Capture the size range of particles on each level is determined by the airflow velocity at the eyelet of that level and the particle interception rate of the previous level. cut-off rate of the previous level.
Levels 1 and 2 resemble particles captured in the upper respiratory tract of humans, and levels 3-6 resemble particles captured in the lower respiratory tract of humans.
| Measuring range | Capture rate: 98% |
| Capture the particle range | Level 1:> 7.0 μ m pore size 1.18mm Level 2:4.7 μ m 7.0 μ m aperture 0.91mm Level 3:3.3 μ m 4.7 μ m aperture 0.71mm Level 4:2.1 μ m 3.3 μ m aperture 0.53mm Level 5:1.1 μ m 2.1 μ m aperture 0.34mm Level 6:0.65 μ m 1.1 μ m aperture 0.25mm |
| Sampling quantity | 28.3L/min Error is <5% |
| Sampling period | 1-99 minutes can be set arbitrarily |
| Noise | ≤50 db |
| Working power supply | 220V/AC |
| Power | ≤ 45W |
| Volume (WLH) | Host: 210250130 (mm) Weight: 4.7 Kg |
| Impactor: 110110850 (mm) Weight: 1.1 Kg |
You can request the necessary certificates, documentation, instructions and user guide for ZETRON FSC-A6 using the special form.
You can buy ZETRON FSC-A6 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. ZETRON FSC-A6 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
