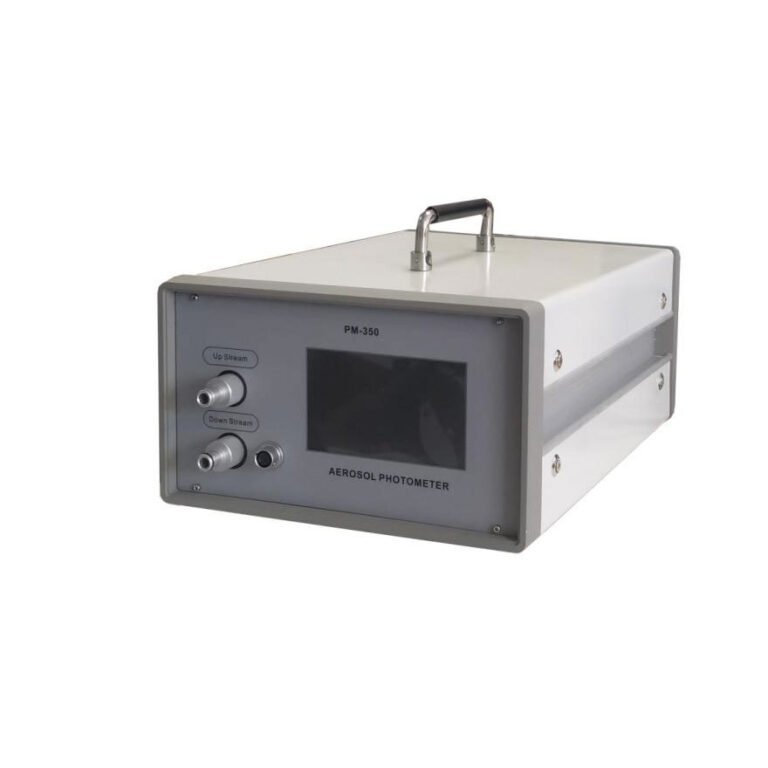

PM-350 aerosol photometer is used for on-site leakage detection after the installation of the efficient filter and its system, mainly to check small pinholes and other damage in the filter, such as frame sealing, gasket seal and leakage on the filter frame.
Made in China. brand ZETRON, model PM-350
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
PM-350 aerosol photometer is used for on-site leakage detection after the installation of the efficient filter and its system, mainly to check small pinholes and other damage in the filter, such as frame sealing, gasket seal and leakage on the filter frame.
The purpose of leakage detection is to check the sealing of the efficient filter and the connection part with the installation frame, timely find the defects in the installation, and take corresponding remedial measures to ensure the cleanliness of the area.
The PM-350 can automatically switch the upstream and downstream aerosol concentration to determine the filter for leakage.

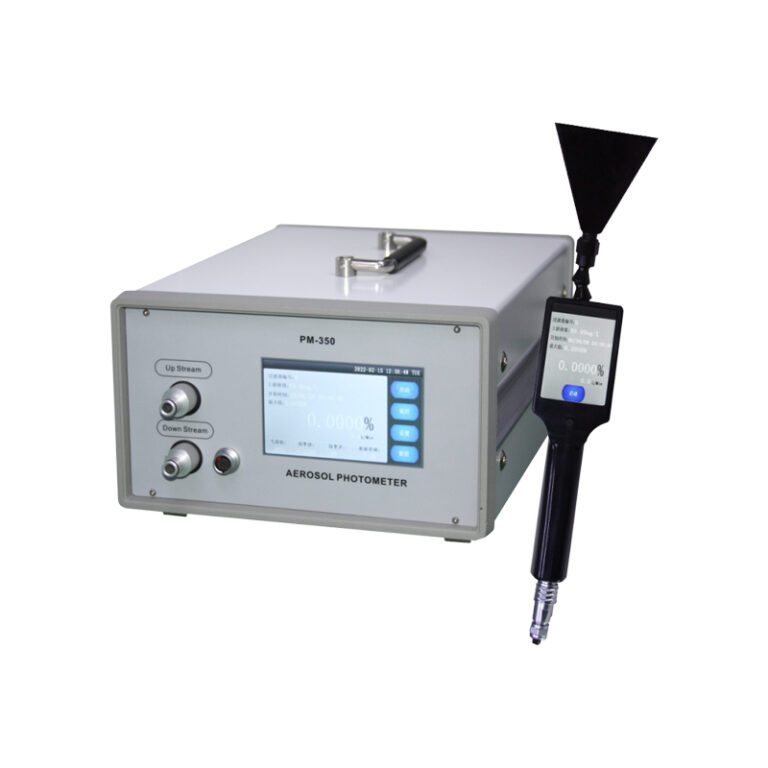

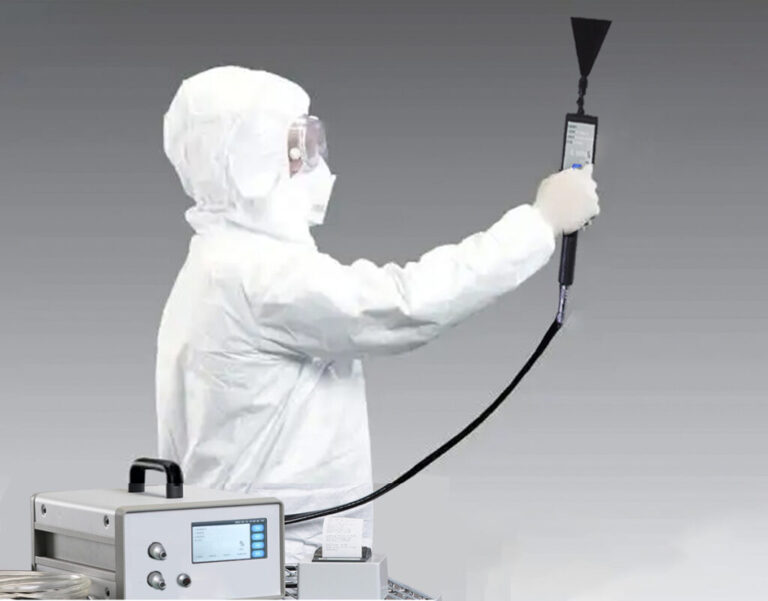

The portable scanning probe enables the operator to quickly and accurately identify the leakage points in remote locations and determine other leakage ratios, and when the alarm line is exceeded, the display board displays an alarm.
| Product Name | Aerosol photometer |
| Item | PM-350 |
| Display Range | 0.0001 % -100.0 % Colorful LCD Display |
| Range | 0 mg/m3～120 mg/m3 |
| Resolution Read a value | 1 % (0.01 % to 100 %) |
| Repetitiveness Read a value | 0.5 % (0.01 % -to 100 %) |
| Flow Rate Range | 1cfm(28.3 L/min) ± 10 % |
| Automatically Zero | Auto-zero on startup |
| Alarm | Sound and light alarm |
| Communication Interface | USB, a wireless printer |
| Types of aerosols | PAO,DOP Approvals |
| Power Supply | AC 220V 50/60Hz |
| External Dimensions | 258 (long) x178 (wide) x360 (deep) |
| Weight | 9.8 kg (Ontology), 10.3 kg (Ontology, scanning probe) |
You can request the necessary certificates, documentation, instructions and user guide for ZETRON PM-350 using the special form.
You can buy ZETRON PM-350 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. ZETRON PM-350 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
