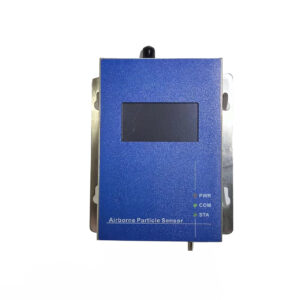

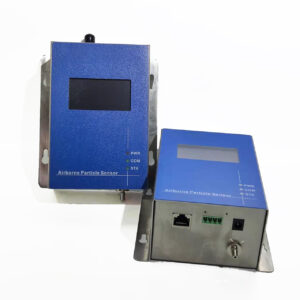

ZETRON R210 Cleanroom Monitoring Airborne Particle Sensor

R210 Remote particle counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point.

			int(24098)
NULL


Made in China. brand ZETRON, model R210

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

price По запросу

Available

Available

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Descriptions of ZETRON R210

R210 Remote Particle Counter meets the requirements of GMP, and ISO21501-4.

If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.

Features:

  1. Reasonable structure design, compact size, easy installation
  2. Particle size channel: 0.3um-25um optional Note: CLJ-R200 optional 0.2μm
  3. Sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) optional
  4. Three kinds of status indicator guide: power indicator; communication indicator; measurement status indicator
  5. RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output methods can be selected
  6. Using foreign original laser diode and vacuum pump, long service life
  7. 2.4 inch OLED display, intuitive and clear reading
  8. 316 stainless steel housing can be customized
  9. Customizable explosion-proof sensor

Technical specifications of ZETRON R210

Model R210 (2.83L/min)
Channel sizes Two Channels:     0.5μm, 5.0μm
Three Channels:  0.3μm, 0.5μm, 5.0μm
Four Channels:    0.3μm, 0.5μm, 1.0μm, 5.0μm
Six Channels:   0.3μm, 0.5μm, 1.0μm, 2.0μm, 3.0μm, 5.0μm
(Customizable)
Display Customizable
2.4 inch OLED
Output RS485 (modbus) or TCPIP(modbus)
(TCPIP has no extended output)
RS485(modbus) 4-20mA(2 channels; 0-5 V(2channels)
Relay(2channels; WiFi; LORA
Extended Output
Power Supply 12-24V, RS485(modbus))
12-24V, 48V Standard POE(TCPIP(modbus))
Pump Built-in pump(R210)
External pump(R310)
Weight & Size 0.9 Kg
135×120×60(mm)
Expand Table

User Guide and Instruction manual for ZETRON R210

You can request the necessary certificates, documentation, instructions and user guide for ZETRON R210 using the special form.

You can buy ZETRON R210 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email . ZETRON R210 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
