Hot-swappable module for TestPro & NSA. Enables Tier-2 fiber certification and precise fault location without powering down the tester.

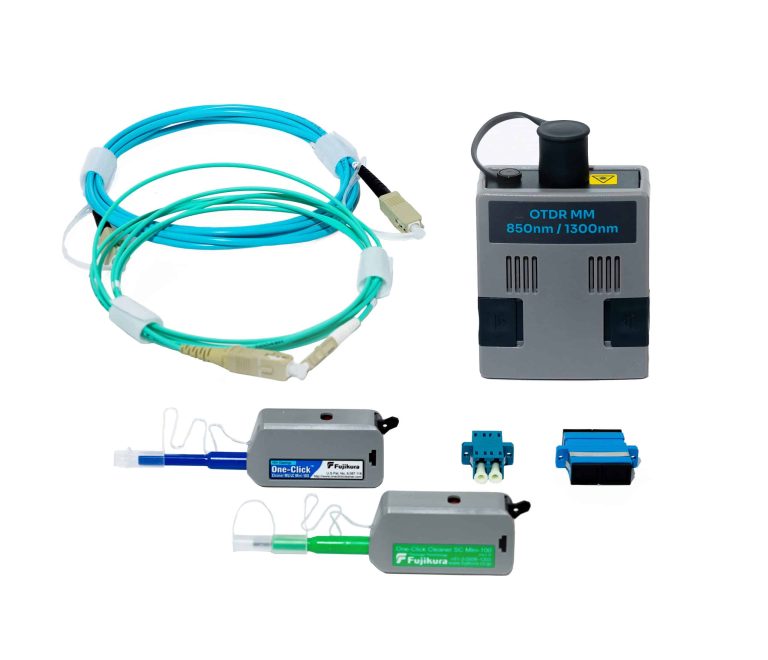

Kit: Reference cords, couplers & cleaners (Launch cords sold separately)
Made in USA. brand AEM, model AD-OTDR-U-850_1300
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $2 600
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The AEM AD-OTDR-U-850_1300 is a Multimode OTDR Test Adapter designed to enhance fiber optic testing capabilities. Featuring a hot-swappable design with an SC/UPC interface, it integrates seamlessly with TestPro and Network Service Assistant (NSA) test platforms. This adapter empowers technicians to swiftly pinpoint the precise location of broken fibers or loss events, facilitating quick and efficient fault identification without needing to power down the test equipment. When combined with TestPro’s Tier-1 Optical Loss Certification, it enables Tier-2 Certification capabilities.
Key Features
| Parameter | Specification |
|---|---|
| Product Name | Multimode OTDR Test Adapter |
| Compatibility | TestPro CV100, Network Service Assistant (NSA) |
| Wavelengths | 850 nm ±10 nm; 1300 nm (+35 / –15 nm) |
| Fiber Type | 50/125 µm and 62.5/125 µm multimode |
| Connector Interface | SC/UPC (female) |
| Event Dead Zone | 850 nm: 1 m typical; 1300 nm: 1 m typical |
| Attenuation Dead Zone | 850 nm: 2.5 m typical; 1300 nm: 4.5 m typical |
| Dynamic Range | 850 nm: 25 dB; 1300 nm: 27 dB |
| Max Distance Range Setting | 40 km |
| Distance Measurement Range | 850 nm: 9 km; 1300 nm: 35 km |
| Reflectance Range | 850 nm: –14 to –57 dB; 1300 nm: –14 to –62 dB |
| Pulse Width | 3 … 25 000 nsec (programmable) |
| Hot‑swappable | Yes (no need to power down the tester) |
| Tier‑2 Certification | Supported (when combined with Tier‑1 optical loss test) |
| Kit Contents |
Note: OTDR launch cords are not included (ordered separately) |
| Application | Troubleshooting, fault location (broken fibers, loss events), Tier‑2 fibre optic certification |
You can request the necessary certificates, documentation, instructions and user guide for AEM AD-OTDR-U-850_1300 using the special form.
You can buy AEM AD-OTDR-U-850_1300 in UAE at a price starting from 2600 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM AD-OTDR-U-850_1300 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
