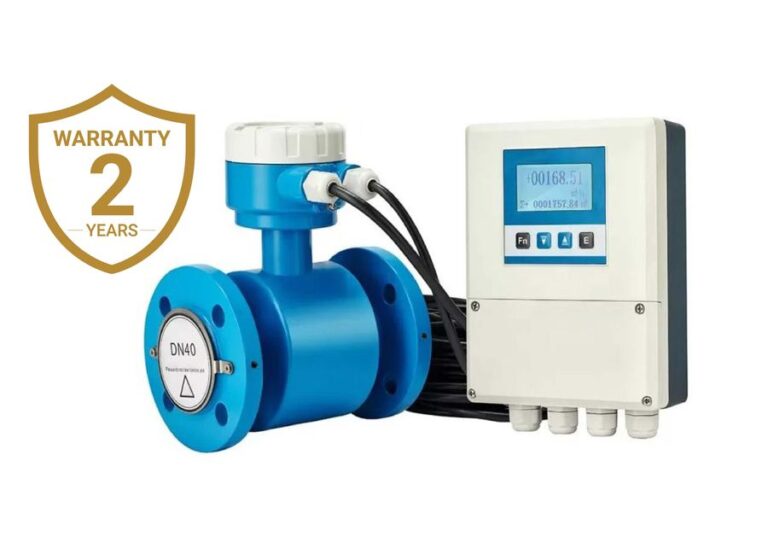

Aimag C Electromagnetic flowmeter is specailly designed for corrosive liquid, such as acid, sulfuric acid, acetic acid, niteric ascid, brine, sea water, alcohol, ammonia liquid ect. Aimag C flow meter use chemical resistant electrodes and liner, and can withstand 40Mpa high pressure flow meter.
Aimag C is best chemical-resistant flow meter for corrosive liquid. The diameter of the electromagnetic flowmeter ranges from DN6 to DN3000.
Made in China. brand ARTANG, model AIMAG C
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
● Wide variety of wetted materials.
● No moving parts, maintenance-free.
● Compact and remote version are available.
● Max. process pressure up to 26MPa.
● Meet GB3836 explosion-proof standards.
The accuracy of Aimag C electromagnetic flowmeter is up to 0.2%, which can effectively guarantees the accuracy of the measurement process. The maximum process pressure is up to 26MPa, which is especially suitable for the applications of high-pressure water injection and polymer injection in oil field development.
| Model Number | Aimag C |
| Application | Chemical Industry |
| Nominal Diameter | DN15 ~ DN600 |
| Structure Type | Remote |
| Electrode Material | Stainless Steel, Hastelloy, Tantalum, Titanium, Platinum |
| Lining Material | PU, PTFE, PFA, CR |
| Process connection | Flange: GB, ANSI, DIN, JIS |
| Process Pressure | PN16 ~ 40 / CLASS 150/300 / JIS 10K/20K |
| Accuracy | ± 0.5% / ±0.2% |
| Output Signal | 4~20mA Frequency / Pulse |
| Communication | HART, Modbus RS485, PROFIBUS DP |
| Explosion Certification | CQEx |
| Certification | CE, SIL |
| Protection Grade | IP67 / IP68(optional) |
You can request the necessary certificates, documentation, instructions and user guide for ARTANG AIMAG C using the special form.
You can buy ARTANG AIMAG C in UAE at a favourable price in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email ceo@texair.eu. ARTANG AIMAG C price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
