Measurement is unaffected by changes in fluid density, viscosity, temperature, pressure, and conductivity.
No flow-retarding parts, no pressure loss, low straight pipe section requirement, unique adaptability to slurry measurement.
Series nominal diameter DN4 ~ DN3000, lining and electrode different configurations can measure strong corrosive and strong wear-resistant media.
With self-test and self-diagnostic function, zero point stability, high accuracy
High-definition backlit LCD display, full Chinese menu operation, simple and easy to understand.
Insertion type electromagnetic flowmeter, construction of small quantities, can not flow with pressure installation, with absolute installation and price advantage;
Artang’s Exclusive Offer: 2-YEAR WARRANTY. That’s twice the industry standard for electromagnetic flowmeters!
Made in China. brand ARTANG, model AIMAG I
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Engineered to break the limitations of traditional fluid measurement, the ARTang Insertion Electromagnetic Flow Meter delivers unmatched versatility with a measurement range from DN25 to DN2200.
Setting a new industry benchmark, ARTang is currently the only Chinese manufacturer offering an insertion mag meter capable of measuring pipes as small as DN25.
Beyond its expansive compatibility, it achieves an exceptional ±1.0% accuracy—significantly outperforming competitor brands in the insertion category.
Backed by officially certified calibration reports, it is the ultimate highly-reliable, cost-effective solution for both municipal networks and industrial plants.
Features of Insertion Electromagnetic Flowmeter

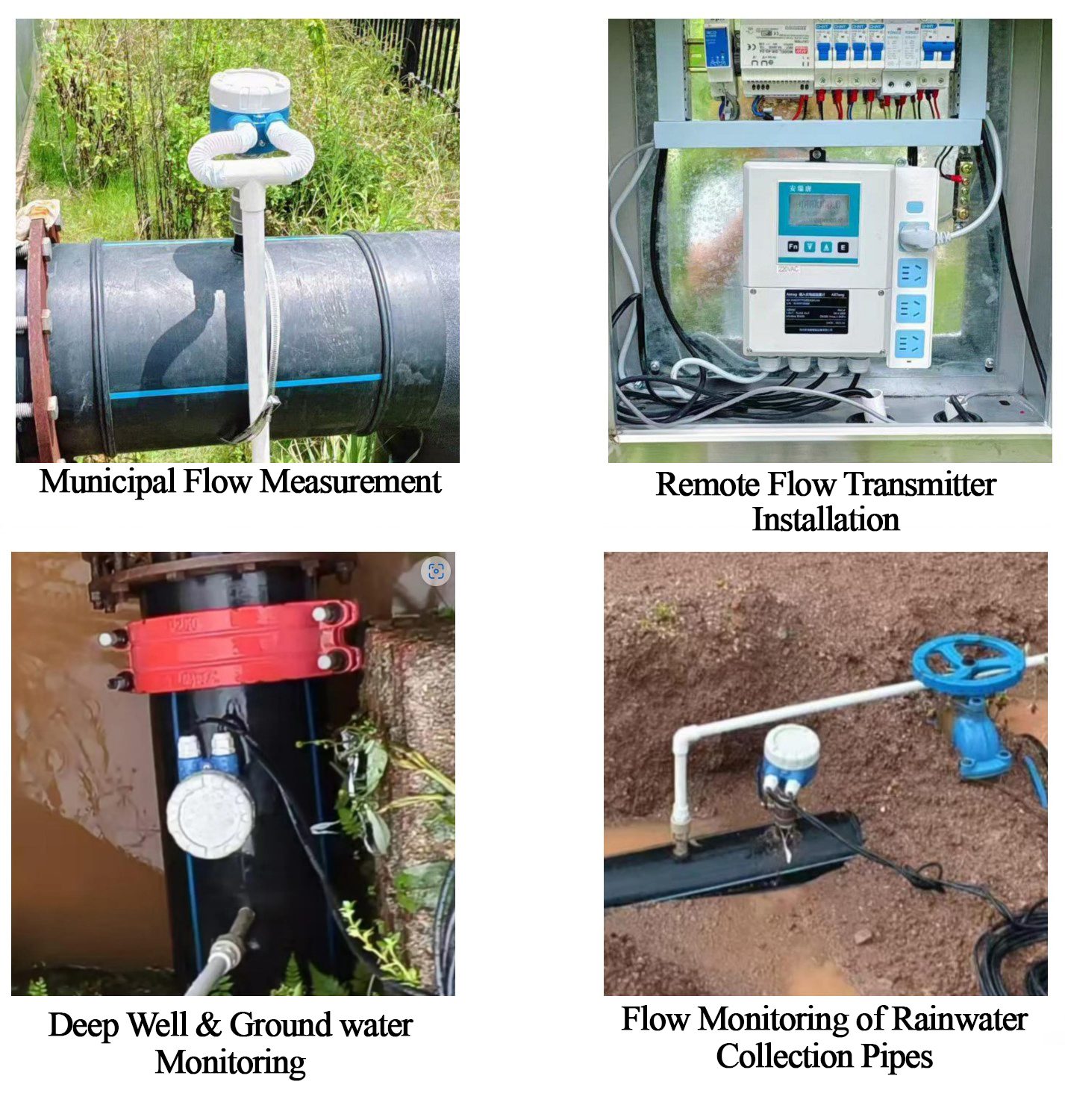

Field Installation of Insertion Electromagnetic Flow Meter
Real on-site installation examples of ARTang insertion electromagnetic flow meters used for outdoor water pipeline flow measurement, remote monitoring, and municipal water distribution systems.
Applications
Designed for large pipeline flow measurement from DN25 to DN2200, the ARTang insertion electromagnetic flow meter provides a cost-effective solution for new installations, pipeline retrofits, and network upgrades.
With hot-tap installation, the flow meter can be installed under pressure without shutting down the pipeline, helping reduce downtime, excavation work, and installation cost.
| Model | Aimag I |
| Nominal Diameter | DN25 ~ DN2200 |
| Accuracy | ±0.5% / ±0.2% |
| Electrode Material | Stainless Steel 316L; Hastelloy B; Hastelloy C; Platinum; Tantalum; Titanium |
| Lining Material | PTFE; Neoprene; Hard Rubber; Polyurethane; PFA; FEP |
| Process Temperature | 0℃～80℃, Neoprene -20℃～65℃, Polyurethane -40℃～130℃, PTFE -20℃～150℃, PFA -20℃～180℃, PFA high temperature |
| Ambient Temperature | -20℃~60℃, with display -40℃~60℃, without display |
| Measuring Range | 0.1m/s~10m/s |
| Conductivity | ≥5 μs/cm |
| Output Signal | 4~20mA / Frequency / Pulse |
| Communication | Modbus RS485(Standard), HART(Optional), GPRS/GSM (Optional) |
| Explosion Certification | NEPSI Ex db eb ia IIC T3…T6 Gb |
| Certification | CE, EAC，NEPSI |
| Protection Grade | IP67 / IP68(optional) |
You can request the necessary certificates, documentation, instructions and user guide for ARTANG AIMAG I using the special form.
You can buy ARTANG AIMAG I in UAE at a price starting from by request $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. ARTANG AIMAG I price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
