Slurry magnetic flowmeter is specially designed for heavy-duty applications such as pulp & papermaking industries, slurries & sludges, mining industry, sewage and other industries.
Artang’s Exclusive Offer: 2-YEAR WARRANTY. That’s twice the industry standard for electromagnetic flowmeters!
Made in China. brand ARTANG, model AIMAG S
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Features
Advantages Of Electromagnetic Flow Meters

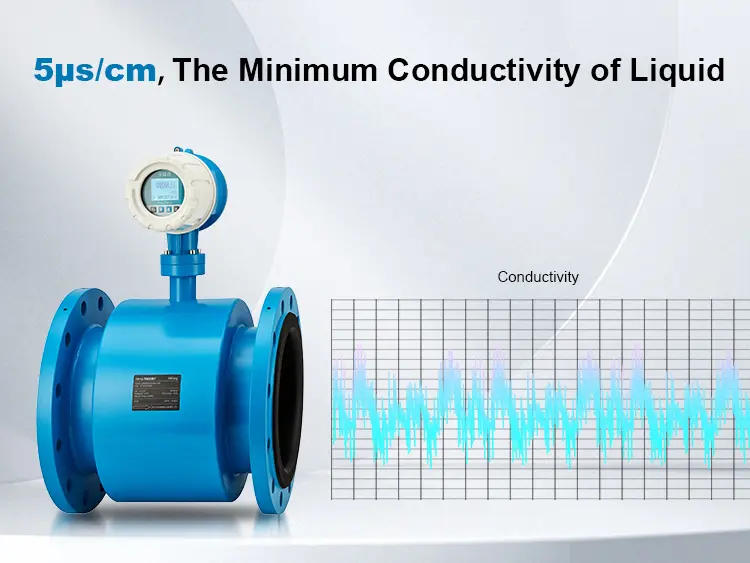

Supports liquid measurement with minimum conductivity from 5 μS/cm.
Supports stable operation in outdoor and industrial environments – Ambient Temperature Range – –40 ℃ … +60 ℃

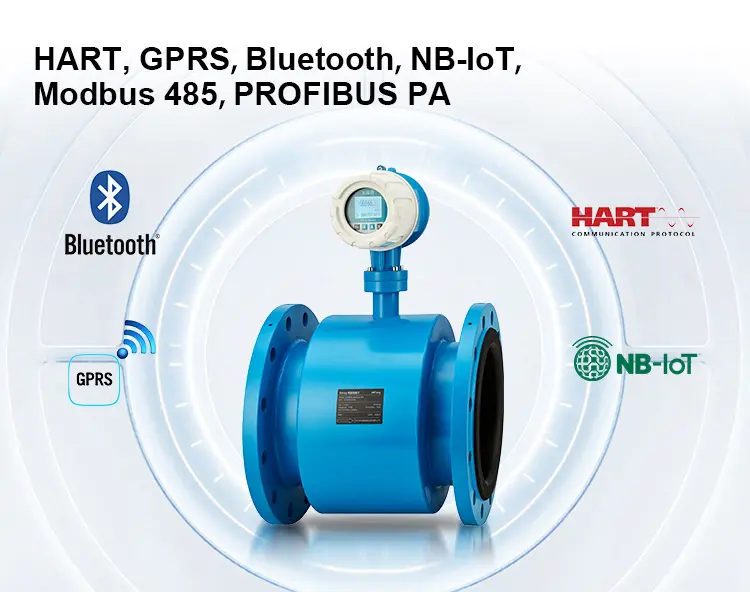

Supports HART, GPRS, Bluetooth, NB-IoT, Modbus 485, and PROFIBUS PA
Supports reliable operation in industrial environments with electromagnetic interference – Electromagnetic Compatibility (EMC) – Obtain Professional EMC Certification
Stable measurement of slurries with up to 80% solids

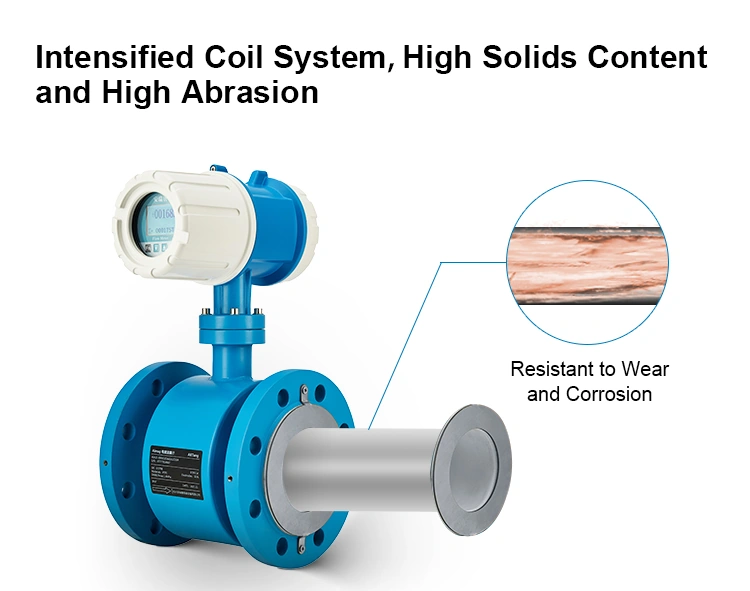

Intensified Coil System, High Solids Content and High Abrasion – Resistant to Wear and Corrosion

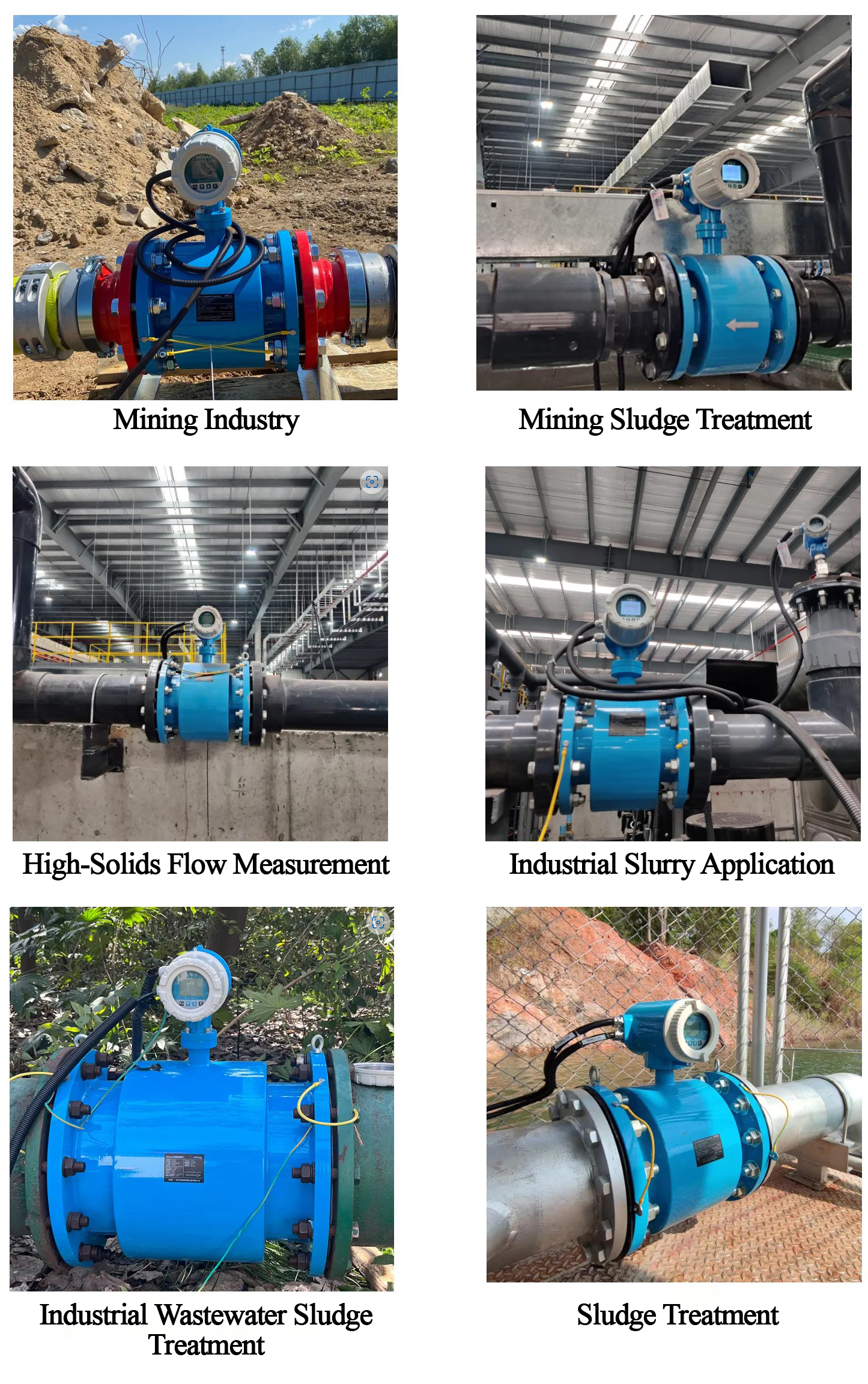

Typical Applications
Aimag S electromagnetic flowmeter adopts unique high-frequency excitation technology. It can effectively reduce the signal noise, and realize stable measurement through unique signal processing technology and noise reduction algorithm. It is especially suitable for the application of abrasive and corrosive fluids.
| Model Number | Aimag S |
| Application | Paper Making Industry and Many Solid Fluids |
| Nominal Diameter | DN15 ~ DN600 |
| Structure Type | Compact / Remote |
| Electrode Material | Stainless Steel, Hastelloy, Tantalum, Titanium, Platinum |
| Lining Material | PU, PTFE, PFA, CR |
| Process connection | Flange: GB, ANSI, DIN, JIS |
| Process Pressure | PN16 ~ 40 / CLASS 150/300 / JIS 10K/20K |
| Accuracy | ± 0.5% / ±0.2% |
| Output Signal | 4~20mA Frequency / Pulse |
| Communication | HART, Modbus RS485, PROFIBUS DP |
| Explosion Certification | CQEx |
| Certification | CE, SIL |
| Protection Grade | IP67 / IP68(optional) |
You can request the necessary certificates, documentation, instructions and user guide for ARTANG AIMAG S using the special form.
You can buy ARTANG AIMAG S in UAE at a price starting from by request $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. ARTANG AIMAG S price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
