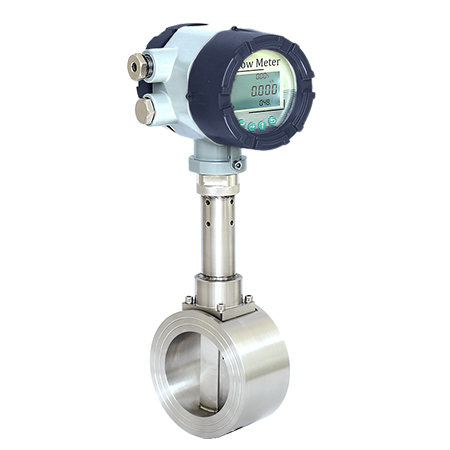

DDTOP LUGB Vortex Flow Meter

DDTOP LUGB Vortex Flow Meter

LUGB vortex flow meter is a kind of speed flow meter, widely used in petroleum, chemical industry, electric power, light industry, power heating industry. Our company’s vortex flow meter production execution standard is vortex flow sensor (JB/T9249-2015) and verification regulation vortex flow meter (JJG10299-2007).

			int(9826)
NULL

Made in China. brand DDTOP, model LUGB

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

price by request

Available

Available

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of DDTOP LUGB

LUGB type vortex flow meter is a kind of velocity flow meter, which is widely used in petroleum, chemical, electric power, light industry, power heating industry. The production and implementation standards of our company’s vortex flow meter are vortex flow sensor (JB/T9249-2015) and verification regulations for vortex flow meter (JJG10299-2007).

Features

  • No moving parts, long term stability, simple structure for easy installation and maintenance.
  • The output of sensor is pulse frequency, and its frequency is linear with the actual flow of the fluid being measured. Zero point has no drift and performance is very stable. The structure is diverse, including pipeline and plug-in flow sensors.
  • High accuracy, usually the measurement accuracy of liquid is ±1.0%; the measurement accuracy of gas is ±1.5%.
  • Wide measuring range, up to 1:20 within the Reynolds number of 2×104~7×106.
  • The pressure loss is small (about 1/4~1/2 of the orifice flow meter), which is an energy-saving flow meter.
  • The installation method is flexible, according to the different process pipelines on site, it can be installed horizontally, vertically and inclined at different angles.
  • It adopts noise cancellation circuit and anti-vibration sensor, which has certain anti-environmental vibration performance.
  • Using ultra-low power consumption single-chip microcomputer technology, one 3V10AH lithium battery can be used for more than 5 years.
  • Correction of non-linearity of instrument coefficients by software to improve measurement accuracy.
  • Use EEPROM to protect the accumulated flow from power failure, and the protection time is more than 10 years.

Applications

  • Crude Oil Treatment: Metering Station
  • Refining: Catalytic Cracking

 Technical specifications of DDTOP LUGB

Measured medium Medium and high velocity media such as steam, compressed air, coal gas, liquid, etc.
Implementation standards Vortex flow sensor（JB/T9249-2015）
Inspection procedures Vortex flow meter（JJG10299-2007）
Instrument size (mm) and connection type       Flange connection type         DN15-DN300
      Clamp connection type         DN15-DN300
Accuracy Liquid measurement： ±1%
Gas or vapor measurement：±1%、±1.5%
Range ability 1:10；1:15；1：20
Sensor material SS304, SS316 etc
Working condition Medium temperature: -40～+70℃ ；-40～+250℃ ；-40～+350℃

Ambient temperature: -20～+60℃

Relative humidity: 5％～90％

Atmospheric pressure: 86～106kPa
Output signal Pulse signal, 4 ~ 20mA signal
Communication output function RS485 communication, HART protocol
Power supply A.          External power supply: +24VDC±15%，ripple ≤±15%,

suitable for 4-20mA output, pulse output, RS485, etc.

B.          Internal power supply: 1 set of 3.0V10AH lithium battery,      the battery voltage can work normally at 2.0V~3.0V.
Flange standard       Normal standard      GB/T 9113-2000
Flange standard

Flange standard

 Other standard



    International standard      For example: DIN, ANSI, JIS
   China standard      For example: HG, JB
Signal line interface M20×1.5 female thread（NPT thread needs to be customized）
Explosion-proof ExdIICT6 Gb
Ingress protection IP65 or higher（can be customized）
Expand Table

 How to buy DDTOP LUGB

Model Code Content
LUGB- □ /□ /□ /□ /□ /□ /□
Connection Method 1 Flange connection
2 Flange clamping
Probe Temperature 1 Low temperature probe（≤70℃）
2 Medium temperature probe（≤250℃）
3 High temperature probe（≤350℃）
Nominal Diameter 15 DN15
20 DN20
25 DN25
32 DN32
40 DN40
50 DN50
65 DN65
80 DN80
100 DN100
125 DN125
150 DN150
200 DN200
250 DN250
300 DN300
Structure Z
F Split type
Instrument Type N No display, 24V/12V power supply, pulse output
A No display, 24V power supply, 4～20mA output
V Local display, external power supply, 4～20mA/RS485/pulse output
D Temperature and pressure compensation, external power supply, 4～20mA/RS485/Pulse output/HART
Accuracy N ExdIICT6 Gb
E Non explosion-proof
Pressure rating N Regular
H(X) High pressure (Negotiated)
Expand Table
