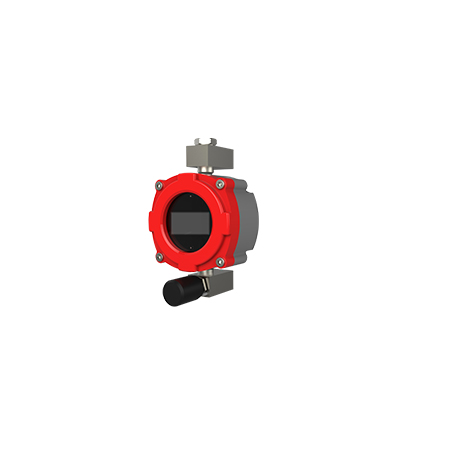

MTF variable area flow meter for micro flow can measure tiny liquid or gas, which has the characteristics of stable and reliable measurement and wide application range. The instrument is equipped with a fine-tuning valve to facilitate the user’s setting of a specific flow rate. Instrument is based on the float measurement principle. According to the flow direction of the medium, it can be divided into side in and out, bottom in and out of two types. According to the display mode, it is divided into mechanical pointer type and liquid crystal display with 4-20 mA current output type.
Made in China. brand DDTOP, model MTF
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
MTF Micro Flow Variable Flow Meter can measure the micro flow of liquid or gas, with stable and reliable measurement and wide range of applications. This instrument can be widely used in petrochemical, oil refining, fertilizer, iron and steel, pharmaceutical and other industries for micro flow measurement, pipeline purging and process control.
MTF type micro flow variable area flow meter is divided into two structural forms: one is 10C type, suitable for low, fluid and high pressure, instrument range is 1-20 L/h (20℃ water), the transmitter can be MTF-A/M TF-B / MTF-TF-C/M TF-D type; the other is 10S type, suitable for low pressure, flow measurement range is 4-120 L/h (20℃ water), the transmitter can be MTF-A/M TF-B type, the instrument is equipped with fine tuning valve, convenient for users to set the specific flow.
Operating Principle
The measuring device includes a measuring tube in which the float can move freely up and down, the medium is bottom up through the measuring tube, the float self-adjusts to make the buoyancy A, pressure W and the float gravity G equal, namely G=A + W.
For the mechanical pointer display type, the measured flow rate corresponds to the position of the float in the measuring cone tube. Display the flow rate on the dial through the magnetic coupling structure. For the digital display type, the measured flow rate corresponds to the position of the float in the measuring cone tube, through the circuit conversion, and the 4-20 mA signal can be output.
Features
1.It can measure liquid, gas and vapor, especially for the flow measurement with small flow rate and low Reynolds number, it has more unique advantages than other flow meters.
2.Lower pressure loss, generally is 4~9kpa, higher is 20kpa.
3.There is a wide flow range, generally is 10:1, the special design flow range can be extended.
4.The factory calibration adopts the method of 11 sections calibration, and the precision of the product reaches 1.0 grade.
5.It can select card sleeve connection, piping φ6mm、φ8mm、φ10mm、φ12mm. Flange connections can also be selected and the flange standard is determined according to user requirements.
6.It can measure liquid, gas and vapor (minimum measurable flow is 0.3L/h), especially for the flow measurement with small flow rate and low Reynolds number, it has more unique advantages than other flow meters.
7.Max pressure is 69Mpa
Applications
Refining: Catalytic Reforming, Acid-Containing Sedimentation Tank
Natural Gas: Sulfur Recovery, Light Hydrocarbon Recovery
Measurement Scope | 20℃, water | 0.1-120L/h |
20℃,0.1013MPa air | 1.2-3600L/h | |
Fluid Viscosity | η<5mPa.s | |
Range Ratio | 10:1 | |
Accuracy | Standard: ±4.0%, Special: ±2.5% | |
Tube material | Standard | 304/316L |
Special | According to customer requirement | |
Fluid Temperature Scope | -40≤T≤300℃ | |
Max Fluid Pressure | ≤69Mpa | |
Ambient Temperature | -40℃≤T≤80℃(当≤-35℃时,液晶无显示) | |
Connection type
|
Standard Screw (thread) | NPT 1/4” |
Standard Tube Fitting | φ6mm,φ8mm,φ10mm,φ12mm | |
Standard Flange | HG/T20615,HG/T20592 | |
Special | According to customer requirement | |
Output Signal | 4~20mADC +HART | |
Power Supply Inlet | M20x1.5 (inner thread), M12x1.5 (inner thread) or according to customer’s requirement | |
Enclosure Material | Cast aluminum | |
Explosion Proof Type | Ex ia Ⅱ C T5/T4 Ga
Ex d Ⅱ C T6/T5/T4/T3 Gb |
|
IP Rating | IP66 |
Model | Code | Content | ||||||||
MTF- | A | Pointer indicating type Variable Area Flow Meter | ||||||||
B | Digital display + remote transmission type Variable Area Flow Meter | |||||||||
C | Pointer indicating type + remote transmission type Variable Area Flow Meter | |||||||||
D | Pointer indicating type + remote transmission type+ Digital display Variable Area Flow Meter | |||||||||
10S | DN10, side in side out type | |||||||||
10C | DN10,bottom in and top out type | |||||||||
2 | PN10 | |||||||||
3 | PN16 | |||||||||
4 | Class150 | |||||||||
5 | PN25 | |||||||||
6 | PN40 | |||||||||
7 | Class300 | |||||||||
8 | PN63 | |||||||||
9 | Other | |||||||||
N | Standard NPT1/4 | |||||||||
6 | Ø 6 Card set connection | |||||||||
8 | Ø 8 Card set connection | |||||||||
10 | Ø 10 Card set connection | |||||||||
12 | Ø 12 Card set connection | |||||||||
F | Flange connection(caliber) | |||||||||
T | Special connection | |||||||||
/ | ||||||||||
2 | Wetted material:304 | |||||||||
3 | Wetted material:316 | |||||||||
4 | Wetted material:316L | |||||||||
5 | Other | |||||||||
i | Intrinsically Safe Type | |||||||||
d | Explosion-proof Type | |||||||||
D | Fluid Temperature: 0<T≤200℃ | |||||||||
G | Fluid Temperature:40℃≤T≤0℃;200℃<T≤300℃ | |||||||||
S | Annex horizontal installation | |||||||||
C | Annex vertical installation | |||||||||
MTF – | □ | □ | □ | □ | / | □ | □ | □ | □ |
Model Selection Example
MTF-B10C3F / 2dDC is a micro flow variable flow meter, caliber is DN10, bottom in and top out type, digital display + remote transmission, nominal pressure is PN16, flange connection, wetted material is 304, explosive type, fluid temperature is 0℃ <T 200℃, vertical installation.
Flow Table
Range Ratio 10:1, 100% Flow, Reference Condition: Water 20℃, Air 20℃-0.1013Mpa
Water Flow | Air Flow | Pressure Loss | |
Float number / cone tube number | 【L/H】 | 【L/H】 | 【kPa】 |
F002 | 1 | 70 | 0.5 |
F004 | 2 | 112 | 0.7 |
F004A | 2 | 112 | 0.9 |
F005 | 4 | 125 | 1 |
F005A | 5 | 162 | 1.5 |
F010 | 6 | 232 | 1.9 |
F015 | 8 | 340 | 2.3 |
F030 | 11 | 435 | 2.5 |
F040 | 15 | 530 | 2.7 |
F080 | 20 | 660 | 3.6 |
F125 | 40 | 1250 | 4.2 |
F200 | 60 | 2000 | 8.5 |
F300 | 80 | 2500 | 11.7 |
F350 | 100 | 3400 | 16.6 |
F400 | 120 | 3600 | 18 |
Flow Valve Flow Parameter Table
Valve Feature | Valve Rob | Water | Air |
Taper Tube | φ【mm】 | 【L/H】 | 【L/H】 |
F005-F010 | 1 | 30 | 955 |
F015-F080 | 2.5 | 150 | 5200 |
F125-F400 | 4.5 | 250 | 8800 |
