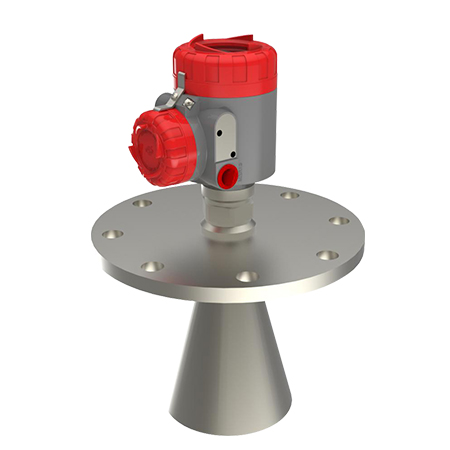

TRG804X non-contact type radar level transmitter has a wider measurement range, and better diagnostic function. The use of advanced signal processing technology can filter out false targets or other noise signals. Pulse string radar level transmitter transmits short pulse string to the liquid surface. Through antenna, it can transmit extremely short pulses with very low energy. By using ultra-high speed timing circuit to measure the time required for the pulse signal to meet liquid surface and reflect echo.
Made in China. brand DDTOP, model TRG804X
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
TRG804X series radar level transmitter is suitable for petroleum, chemical, food, metallurgy and some other measuring sites. It can provide accurate and reliable level measurement and control. It also has many good features such as large measuring range, high precision, strong interference-resistance, easy installation and so on.
Operating Principle
Extremely short microwave pulses are transmitted by the antenna system to the measured product, reflected by the product surface and received back by the antenna system. The time from emission to reception of the signals is proportional to the level in the vessel. A special time stretching procedure ensures reliable and precise measurement of the extremely short transmission periods and the conversion into level. The radar sensors operate with low emitted power.
Features
1.6.3 GHz operating frequencies provide superior performance in applications of turbulence, foam and heavy vapor
2.Maximum process temperature can be up to 250℃
3.Maximum measuring range can reach 30m
4.Quick connection/disassembly of probe shaft sleeve allows the container to remain sealed
Applications
| Model | Code | Contents | |||||||
| TRG8041 | Rod | ||||||||
|
|
P | Non explosion-proof | |||||||
| I | Intrinsic safe type（Ex ia IICT1～T5/T6 Ga; Ex iaD 20 T85°C） | ||||||||
| F | Dual intrinsic-safe and explosion-proof type（Ex d ia [ia Ga]IIC
T1～T5/T6 Gb；Ex tD A21 T100℃ /T85℃） |
||||||||
|
|
2 | Material/Process temperature: PVDF/(-40～130)℃ | |||||||
|
|
GP | Process connection: Thread G1½＂ | |||||||
| NP | Process connection: Thread NPT1½＂ | ||||||||
| GX | Process connection: Special customization | ||||||||
|
|
A | Neck tube:100mm | |||||||
| B | Neck tube:200mm | ||||||||
| X | Neck tube: Special customization | ||||||||
|
|
B | Electronic components:(4～20)mA/（22.8～26.4）V
DC/HART/Two-wire |
|||||||
|
|
A | Housing/Protection rating: Aluminium alloy/IP67 | |||||||
|
|
M | Cable incoming line:M20×1.5 | |||||||
| N | Cable incoming line:NPT1/2＂ | ||||||||
|
|
A | Status display/ programming : with | |||||||
| X | Status display/ programming : without | ||||||||
Example
TRG8041I2GPABAMA is TRG8041 radar, rod type, intrinsic safety type, material is PVDF, process temperature is -40～130℃, process connection is thread G1½＂, neck tube is 100mm, electronic components are (4 ～ 20)mA+HART,24V DC, two-wire, housing material is aluminium alloy, protection rating is IP67, cable incoming line is M20×1.5, with status display.
| Model | Code | Contents | ||||||||||
| TRG8042 | Horn type | |||||||||||
|
|
P | Non explosion-proof | ||||||||||
| I | Intrinsic safe type（Ex ia IICT1～T5/T6 Ga; Ex iaD 20 T85°C） | |||||||||||
| F | Dual intrinsic-safe and explosion-proof type：Ex d ia [ia Ga]IIC
T1～T5/T6 Gb；Ex tD A21 T100℃ /T85℃ |
|||||||||||
|
|
D | Antenna size/Material:φ98mm/ 316L | ||||||||||
| F | Antenna size/Material:φ148mm/ 316L | |||||||||||
| G | Antenna size/Material:φ198mm/ 316L | |||||||||||
| X | Special customization | |||||||||||
|
|
Z | Dust cover: with | ||||||||||
| X | Dust cover: without | |||||||||||
|
|
GP | Process connection: Thread G1½＂ | ||||||||||
| NP | Process connection: Thread NPT1½＂ | |||||||||||
| GX | Process connection: Special customization | |||||||||||
|
|
A | Neck tube:100mm | ||||||||||
| B | Neck tube:200mm | |||||||||||
| X | Neck tube: Special customization | |||||||||||
|
|
2 | Seal/Process temperature: FKM（Fluoro rubber）(-40～150)℃ | ||||||||||
| 3 | Seal/Process temperature: FFKM(-20～250)℃ | |||||||||||
|
|
B | Electronic components:(4 ～ 20)mA/ （ 22.8 ～ 26.4 ） V
DC/HART/Two-wire |
||||||||||
| A | Housing/Protection rating: Aluminium alloy/IP67 | |||||||||||
|
|
S | Sweep function: with | ||||||||||
| X | Sweep function: without | |||||||||||
|
|
M | Cable incoming line:M20×1.5 | ||||||||||
| N | Cable incoming line:NPT1/2＂ | |||||||||||
|
|
A | Status display/ programming : with | ||||||||||
| X | Status display/ programming : without | |||||||||||
Example
TRG8042IGXGPX2BAXMA is TRG8042 radar, horn type, intrinsic safety type, antenna size is φ198mm, material is 316L，without the dust cover，process connection is thread G1½＂, neck tube is special customization, sealing material is Fluoro rubber, process temperature is -40～150℃, electronic components are (4～20)mA+HART, 24V DC, two-wire, housing material is aluminium alloy, protection rating is IP67, without the sweep function, cable incoming line is M20*1.5, with status display.
You can request the necessary certificates, documentation, instructions and user guide for DDTOP TRG804X using the special form.
You can buy DDTOP TRG804X in UAE at a favourable price in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email ceo@texair.eu. DDTOP TRG804X price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
