UFZ type buoy level gauge is suitable for level measurement of groove, tank, oil depots and other containers in the storage and transportation system of petrochemical industry. The measured medium can be acidic, alkaline, high viscosity and corrosive medium.
Made in China. brand DDTOP, model UFZ
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

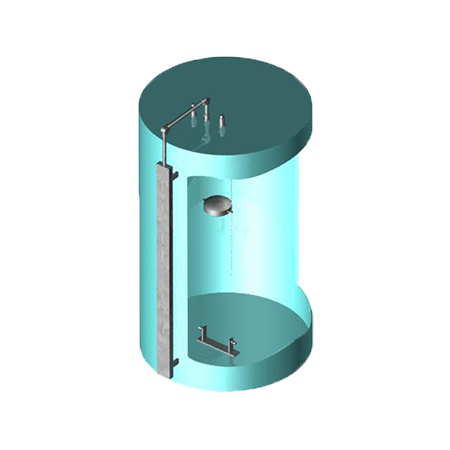

UFZ Buoy Level Gauge applies to the level measuring of oil tank, tank farm, and other vessels in storage and transportation system of the petroleum industry. It can be used in acidic, alkaline, high viscosity, and corrosive medium. UFZ Buoy level gauge has a simple structure, visual and intuitive, and it’s easy to install and maintain.
Operating Principle
UFZ-4A is based upon the equilibrium principle.
Buoy position will be changed when liquid level changes. As the weighted pointer impelled by wire-rope to move, and indicate the level position in ruler to achieve the purpose of liquid level measurement.
Features
1.The buoy level gauge has strong structure, and intuitive reading functions.
2.Buoy level gauge is more suitable for many tanks with strong corrosion, high viscosity and general tank area.
Applications
Oil refining: sulfur recovery, coking operations, catalytic cracking
| Content | Model |
| UFZ-4A | |
| Operating pressure | Normal temperature normal pressures |
| Medium density | ≥0.6g/cm3 |
| Range | 500mm～10000mm, Arbitrarily specified measurement range,
≥10000mm, on request or according to special requirements |
| Accuracy | ±20mm |
| Medium Temperature | -30℃～+200℃ |
| Connecting rod installation perpendicularity | － |
| Guide wire installation perpendicularity | ≤5° |
| Wetted material | 304 or on request |
| Non-Wetted material | Carbon Steel |
| Model | Code | Content | ||||
| UFZ－ | Buoy level gauge | |||||
| 4A | New type Buoy level gauge | |||||
| – | ||||||
| * | Range | |||||
| – | ||||||
| * | Medium density | |||||
| UFZ－ | 4A | – | □ | – | □ | |
Example
UFZ-4A-6000 is New type Buoy level gauge，4A type，range of the measurement is 6000mm，Medium density 1.40g/cm3.
You can request the necessary certificates, documentation, instructions and user guide for DDTOP UFZ using the special form.
You can buy DDTOP UFZ in UAE at a favourable price in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email ceo@texair.eu. DDTOP UFZ price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
