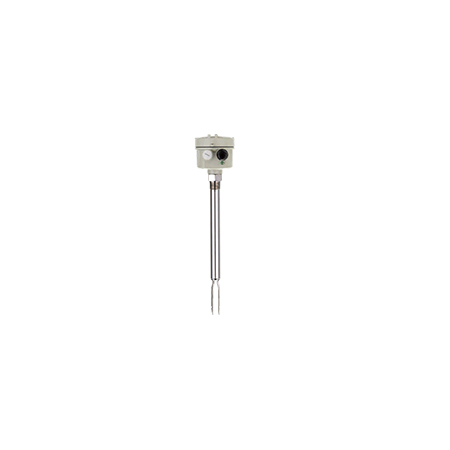

UTX tuning fork type level controller is suitable for high and low position detection of various level in tank or pipes. Products are widely used in chemical fiber industry, rubber industry, tire industry, cement industry, iron and steel industry, food factory, pharmaceutical factory, petrochemical plant, feed plant and other industries raw material / process / finished product barrel tank level control.
Made in China. brand DDTOP, model UTX
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
UTX Tuning Fork Level Switch is suitable for measuring the high and low levels of various materials/liquid media in tanks or pipelines, with a wide range of applications, such as chemical fiber industry, rubber industry, tire industry, cement industry, iron and steel industry, food factories, pharmaceutical factories, petrochemical factories, feed factories and other industrial raw materials/processes/products of barrels and tanks of the material/liquid level control.
Operating Principle
The piezoelectric component is used to drive the tuning fork and feedback signal, which produces the resonation on the fork. When the fork comes into contact with a material, the fork will release some frequency signal as feedback. It will be converted into the output of the contact signal when the circuit detects the frequency decrease of the signal.
The product relies on the damping effect by covering the testing material on the tuning fork which reduces the vibration frequency of the tuning fork and outputs a Controller signal.
Therefore, there is no signal amplification circuit inside, which can eliminate the trouble of frequent sensitivity adjustment due to the material change.
Features
1.SPDT replay output, SSR MOSFET output.
2.Wide voltage supply range 20~250 Vac/Vdc,50/60Hz.
3.It doesn’t need to be calibrated frequently and it is simple to use and durable. High and low power failure protection makes it safe and reliable.
4.The product can be adjusted according to different density of materials, fine materials are also available.
5.It can be used to measure liquid, powder, particles and so on.
6.Double insulation can reduce the damage to the circuit board for the environment where the temperature and humidity change greatly and easily condense water (UTX3 series)
7.After installation, the device can be tested by the test button (UTX3 series)
8.Output controller delay function (UTX3 series)
9.A self-diagnostic mechanism to detect abnormalities such as wear and tear of the tuning fork probe or material adhesion. (UTX3 series)
10.Built-in box-type junction box, small size to save installation space. (UTX3 series)
11.The junction box can be rotated 270 degrees for easy adjustment of the direction of the wire inlet.
12.The specific gravity of the material can be measured down to 0.01 g/cm3. (UTX3 series)
13.Super-protection mechanism to set a second set of output contact point as alarm output (UTX3 series)
14.The product can be used for underwater sediment detection (UTX35 series)
15.One-piece design with 3/4″ nipples for small pipe installations (UTX38 series)
16.Adjustment setting for different densities of mediaρ＞0.5 g/cm3 or ρ＞0.7 g/cm3 (UTX38 series)
17.With controller delay setting function (UTX38 series)
18.Depending on the customer’s preference, the warning light can be selected to follow the fail state or output state (UTX38 series).
19.It is possible to calibrate the action point position of different density materials according to customer’s requirements (UTX38 series).
Applications
EX-proof type
| Model | UTX1740 Standard type | UTX1741 Ultra Extension type |
| Level sensor housing | Alu | minum |
| Probe construction | SUS304 / SU | S316/SUS316L |
| Mounting | 1″PT（depend on factory） | 1″PT（depend on factory） |
| Conduit | 1/2″NPT×2 | |
| Max. vertical load on rod. | 177in.Lbs(20Nm) | |
| Process pressure | vacuo~600PSI(40BAR) | |
| Power supply | 20-250Vac/Vdc,50/60Hz | |
| Power consumption | 10VA | |
| Ambient Temp. | -20℃-70℃ | |
| Process Temp. | -40℃-130℃ | |
| Signal output | Relay, SPDT, 3A/250Vac/ 28Vdc, 1 set or 2 set SSR(MOSFET)400mA/60 Vac/Vdc, 1 set or 2 set | |
| Min. fluid density sensed | Powder: ≥0.07g/cm³, Liquid≥0.7g/cm³, Viscosity:1-10000 cst | |
| Time delay | 0.6 Second /Operate; 1-3 Second/Reset | |
| Vibrating frequency | 350-370Hz | |
| Selectable fail-safe | High / Low | |
| Selectable sensitivity | High / Low | |
UTX35 Tuning Fork Level Controller
| Model | UTX350 Standard type | UTX351 Extension type | UTX352 Cable Type |
| Level sensor housing | Bui | lt-in box, aluminum coating IP66/I | P67 |
| Power supply | NPN/PN(P-50vdc) | ||
| Probe construction | Max. 1.5 W | ||
| Voltage endurance capability | 3.7 kV | ||
| Overvoltage protection | overvoltage category II | ||
| Storage Temp. | -40℃~85℃ | ||
| Ambient Temp. | -40℃~85℃ | -40℃~75℃ | |
| Process Temp. | -40℃~150℃ | -40℃~150℃ | -40℃~80℃ |
| Fluid density | ≥0.01 g/cm3or ≥0.05 g/cm3 | ||
| Measuring frequency | 140 Hz ± 5 Hz | ||
| Fluid dimension | Max.10 mm | ||
| Conduit | 1/2″PF / | 1/2″NPT(Ex-proof is only supports | 1/2″NPT) |
| External diameter of cable applicable to conduit | φ6~φ10mm | ||
| Pressure resistance | Max.25Bar | Max.25Bar | Max.2 Bar |
| Output signal | Dual- relay2 /Dual- MOSFET/3 wires (NPN/PNP) transistor Output | ||
| Connection capacity | Relay:6A/250Vac, 6A/28Vdc; Crystal pipe:400mA,60Vac/Vdc | ||
| Ex-Proof certification | Dust Ex-proof (DIP A20/21 TA, T2-T6 IP66/67, optional) | ||
UTX35 Tuning Fork Level Controller
| Model | UTX350 High-Temp. type | UTX351 High-Temp. Extension type |
| Level sensor housing | Built-in box, aluminum coating IP66/IP67 | |
| Power supply | 19~253 Vdc/Vac, 50/60 Hz | |
| Probe construction | Max. 1.5 W | |
| Voltage endurance capability | 3.7 kV | |
| overvoltage protection | overvoltage category II | |
| Storage Temp. | -40℃~85℃ | |
| Ambient Temp. | -40℃~85℃ | |
| Process Temp. | -40℃~280℃ | |
| Fluid density | ≥0.01 g/cm3or ≥0.05 g/cm3 | |
| Measuring frequency | 140 Hz ± 5 Hz | |
| Fluid dimension | Max.10 mm | |
| Conduit | 1/2″PF / 1/2″NPT(Ex-proof is only supports 1/2″NPT) | |
| External diameter of cable applicable to conduit | φ6~φ10mm | |
| Pressure resistance | 25Bar | |
| Output signal | 2 sets of SPDT relay output/2 sets of transistor output | |
| Connection capacity | Relay:6A/250Vac, 6A/28Vdc; Crystal pipe:350mA,60Vac/Vdc | |
| Ex-Proof certification | Dust Ex-proof (DIP A20/21 TA, T2-T6 IP66/67, optional) | |
UTX38 Tuning Fork Level Controller
| Output type | 8-16mA output type | 3 wire(NPN/PNP) output type | Dual-relay output type | |
| Working voltage | 11~36 Vdc | 10 ~55 Vdc | 19~253Vac/dc,50/60Hz | |
| 600mW | ＜830mW | Max. 1.3W | ||
| Input protection | Reversed power supply protection function | Reversed power supply protection function | NA | |
| Overvoltage protection | overvoltage category III | |||
| Measuring error | Max.±1mm | |||
| Repeatability | 0.5mm | |||
| Hysteresis band | Approx.2mm | |||
| Storage temp. | -40~85℃ | |||
| Ambient temp. | -40~85℃（Intrinsically safe type-40~70℃） | -40 ~85℃（Reference operation manual） | ||
| Process temp. | -40 ~150°C（Reference operation manual） | |||
| Applicable density liquid | ≥0.5g/cm³ or ≥0.7g/cm³ | |||
| Liquid viscosity | Max.10000mm2/S(10000cst) | |||
| Granule size contained in the liquid | Max. Φ 5mm | |||
| External diameter of cable applicable to conduit | Φ6 ~ Φ10mm | |||
| Pressure resistance | Max.40 Bar | |||
| Output signal | Intrinsically safe signal(8~16)mA | Transistor output NPN/PNP | 2 sets of SPDT relay output | |
| Contact capacity | NA | 350mA，55Vdc | 6A/250 Vac, 6A/28Vdc | |
| IP rating | IP66/67 | |||
| Intrinsically safe parameters | Ui(V)=36V,Ii=100mA,Pi=1W Ci(nF)=0,Li(uH)=0 | NA | NA | |
Note:
It shall combine with the ex-proof fence meeting level Ex ia to form the intrinsically safe system.
SC38 Multi-functional tuning Fork Level Controller
| Output type | 8-16mA current output type | 3 wire(NPN/PNP) output type | Dual-relay output type | |
| Working voltage | 11~36 Vdc | 10 ~55 Vdc | 19~253Vac/dc,50/60Hz | |
| Power consumption | 600mW | ＜830mW | Max. 1.3W | |
| Input protection | Reversed power supply protection function | Reversed power supply protection function | NA | |
| Overvoltage protection | overvoltage category III | |||
| Measuring error | Max.±1mm | |||
| Repeatability | 0.5mm | |||
| Hysteresis band | Approx.2mm | |||
| Storage temp. | -40~85℃ | |||
| Ambient temp. | -40 ~85°C（reference to operation manual） | |||
| Process temp. | -40~150℃ | |||
| Applicable density liquid | ≥0.5g/cm³ or ≥0.7g/cm³ | |||
| Liquid viscosity | Max.10000mm2/S(10000cst) | |||
| Granule size contained in the liquid | Max. Φ 5mm | |||
| External diameter of cable applicable to conduit | Φ6 ~ Φ10mm | |||
| Pressure resistance | Max.40 Bar | |||
| Output signal | Intrinsically safe signal(8~16)mA | Transistor output NPN/PNP | 2 sets of SPDT relay output | |
| Contact capacity | NA | 350mA，55Vdc | 6A/250Vac | |
| IP rating | IP66/67 | |||
| Intrinsically safe parameters | Ui(V)=36V,Ii=100mA,Pi=1W Ci(nF)=0,Li(uH)=0 | NA | NA | |
Note:
It shall combine with the ex-proof fence meeting level Ex ia to form the intrinsically safe system.
You can request the necessary certificates, documentation, instructions and user guide for DDTOP UTX using the special form.
You can buy DDTOP UTX in UAE at a favourable price in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email ceo@texair.eu. DDTOP UTX price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
