DWYER Mini-Photohelic MP
Photo DWYER Mini-Photohelic MP Description DWYER Mini-Photohelic MP Specifications DWYER Mini-Photohelic MP Model Chart DWYER Mini-Photohelic MP Accessories for DWYER Mini-Photohelic MPPrices for DWYER Mini-Photohelic MP User Manual for DWYER Mini-Photohelic MP Related instruments to DWYER Mini-Photohelic MP
The Series MP Mini-Photohelic® Differential Pressure Switch/Gage combines the time proven Minihelic® II differential pressure gage with two SPDT switching set points. The Mini-Photohelic® switch/gage is designed to measure and control positive, negative, or differential pressures consisting of non-combustible and non-corrosive gases. Gage reading is independent of switch operation. Switching status is visible by LED indicators located on the front and rear of the gage. Set points are adjusted with push buttons on the back of the unit.
Made in USA. brand DWYER, model Mini-Photohelic MP
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $585
Available
Founded in 1931, DWYER manufactures equipment for measurement, conversion and control – pressure, temperature, level, flow.
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
NIST CALIBRATION available in Product Configurator.
PRODUCT APPLICATIONS
GAGE SPECIFICATIONS
SWITCH SPECIFICATIONS
| EXAMPLE | MP | 000 | AT | Series MP-000-AT Mini-Photohelic® Differential Pressure Switch/Gage, range 0-0.5″ w.c., with aluminum tag. |
| SERIES | MP | Mini-Photohelic® Differential Pressure Switch/Gage | ||
| RANGE | 000 001 002 003 005 010 020 040 060 100 5PSI 10PSI 15PSI 25MM 50MM 100MM 125PA 250PA 500PA 1KPA 3KPA 10KPA |
0-0.5″ w.c. 0-1″ w.c. 0-2″ w.c. 0-3″ w.c. 0-5″ w.c. 0-10″ w.c. 0-20″ w.c. 0-40″ w.c. 0-60″ w.c. 0-100″ w.c. 0-5 psi 0-10 psi 0-15 psi 0-25 mm w.c. 0-50 mm w.c. 0-100 mm w.c. 0-125 Pa 0-250 Pa 0-500 Pa 0-1 kPa 0-3 kPa 0-10 kPa |
||
| OPTIONS | AT DEED EDED EDDE HL LH LL NIST NPT |
Aluminum Tag Energizing (set point low: de-energizing/energizing; set point high: energizing/de-energizing) Energizing (set point low: energizing/de-energizing; set point high: energizing/de-energizing) Energizing (set point low: energizing/de-energizing; set point high: de-energizing/energizing) Latching Option (high/low) Latching Option (low/high) Latching Option (low/low) NIST Certificate of Calibration NPT Connections |
| Photo | Model | Description |
|---|---|---|
|

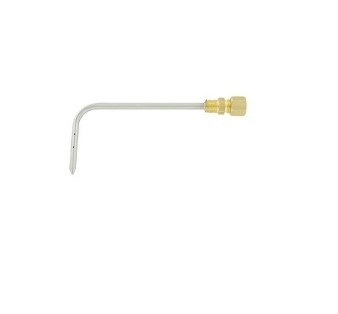

A-301 | Static pressure tip, for 1/4" metal tubing connection. |
|

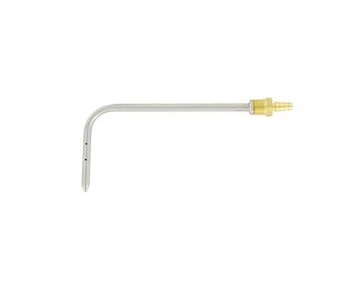

A-302 | Static pressure tip, for 3/16" and 1/8" ID plastic or rubber tubing. |
| A-302F-A | 303 SS Static pressure tip with mounting flange, for 3/16" I.D. rubber or plastic tubing. 4" insertion depth, includes mounting screws | |
| A-489 | 4" 303 SS straight static pressure tip with flange, 1/4" hose barb. | |
| 410761-00 | Mounting lug |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| MP-000 | Differential pressure switch/gage, range 0-0.5" water. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-001 | Differential pressure switch/gage, range 0-1.0" water. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-002 | Differential pressure switch/gage, range 0-2.0" water. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-003 | Differential pressure switch/gage, range 0-3.0" water. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-005 | Differential pressure switch/gage, range 0-5.0" water. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-010 | Differential pressure switch/gage, range 0-10" water. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-020 | Differential pressure switch/gage, range 0-20" water. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-100MM | Differential pressure switch/gage, range 0-100 mm water. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-125PA | Differential pressure switch/gage, range 0-125 Pa. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-1KPA | Differential pressure switch/gage, range 0-1 kPa. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-250PA | Differential pressure switch/gage, range 0-250 Pa. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-25MM | Differential pressure switch/gage, range 0-25 mm water. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-3KPA | Differential pressure switch/gage, range 0-3 kPa. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-500PA | Differential pressure switch/gage, range 0-500 Pa. | Delivery time from 12 weeks | from 585$ |
-
+
|
|
| MP-50MM | Differential pressure switch/gage, range 0-50 mm water. | Delivery time from 12 weeks | from 585$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for DWYER Mini-Photohelic MP using the special form.
You can buy DWYER Mini-Photohelic MP in UAE at a price starting from 585 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. DWYER Mini-Photohelic MP price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
