The FI2-7300 FiberInspector Pro makes inspecting MPO and single fiber optic cables easy and efficient. Integrates with Versiv / LinkWare or with mobile phones for testing and sharing using the Fi-In app.
Made in USA. brand FLUKE, model FI2-7300
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

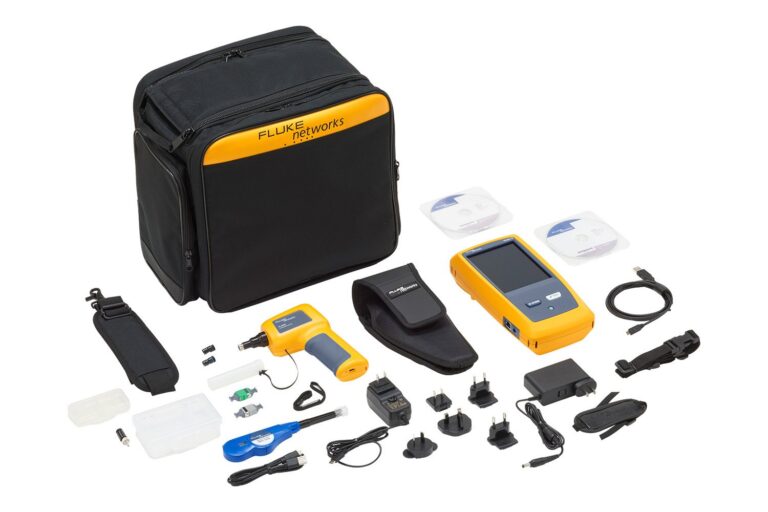

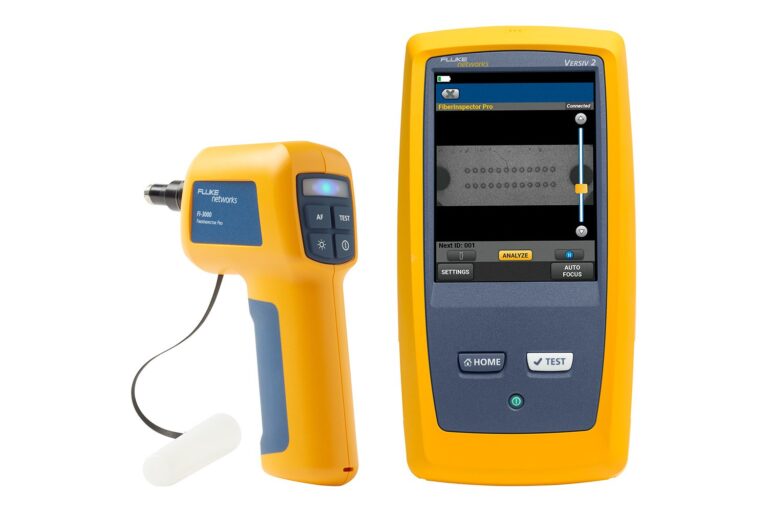

The multiple camera Live View provides an instant, real-time image with simple touchscreen gestures to view the full connector down to individual end faces. Automated pass/fail results are available in seconds. Compact, ergonomic design with autofocus makes it comfortable and fast. Versiv2 mainframe included.
Key features
| Temperature range | Operating: -10 °C to +45 °C (+14 °F to +113 °F) Storage: -10 °C to +60 °C (+14 °F to +140 °F) |
| Humidity range | Operating: 0 % to 95 % (32 °F to 95 °F, 0 °C to 35 °C) RH non-condensing Storage: 0 % to 95 % (95 °F to 113 °F, 35 °C to 45 °C) RH non-condensing |
| Altitude | Operating: 4,000 m (3,200 m with AC adapter) Storage: 12,000 m |
| Vibration | 2 g, 5 Hz to 500 Hz |
| Shock | 1 meter drop test |
| Safety | IEC 61010-1: Pollution Degree 2 |
| EMC | IEC 61326-1: Controlled Electromagnetic Environment; IEC 61326-2-1 CISPR 11: Group 2, Class A USA (FCC): 47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC Rules. |
| Endtype support | Single Fiber and MPO: 1×8 (8 fibers), 1×12 (8, 10, or 12 fibers), 1×16 (16 fibers), 2×12 (16, 20, or 24 fibers), 2×16 (32 fibers) |
| Test limits | IEC 61300-3-35 ED. 2 MM IEC 61300-3-35 ED. 2 SM APC Document Only |
| Optional automated pass/fail test time | Less than 2 seconds per fiber |
| Camera type | 5 Megapixel 1/4-inch CMOS sensor |
| Field of view | 610 µm x 460 µm |
| Resolution | 1 µm |
| Light source | LED, >100,000 hr life |
| Endface illumination | Coaxial blue LED |
| Resolution | White LED |
| Battery type | Lithium-ion; 10.8 hour life |
| Power adapter | Input: 100 to 240 VAC ±10%, 50/60Hz Output: 15 VDC, 2 A maximum Class II |
| Wireless transmission* | Output power: <100 mW Frequency ranges: 2.4 GHz (2412 MHz to 2462 MHz) |
| Dimensions | 6.625 x 5.375 x 2.125 in (168 x 137 x 54 mm) (with no dust cap or adapter tip) Length with dust cap: 7.5 in (191 mm) |
| Weight | 11.5 oz (326 gm) (with dust cap and no adapter tip) |
You can request the necessary certificates, documentation, instructions and user guide for FLUKE FI2-7300 using the special form.
You can buy FLUKE FI2-7300 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. FLUKE FI2-7300 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
