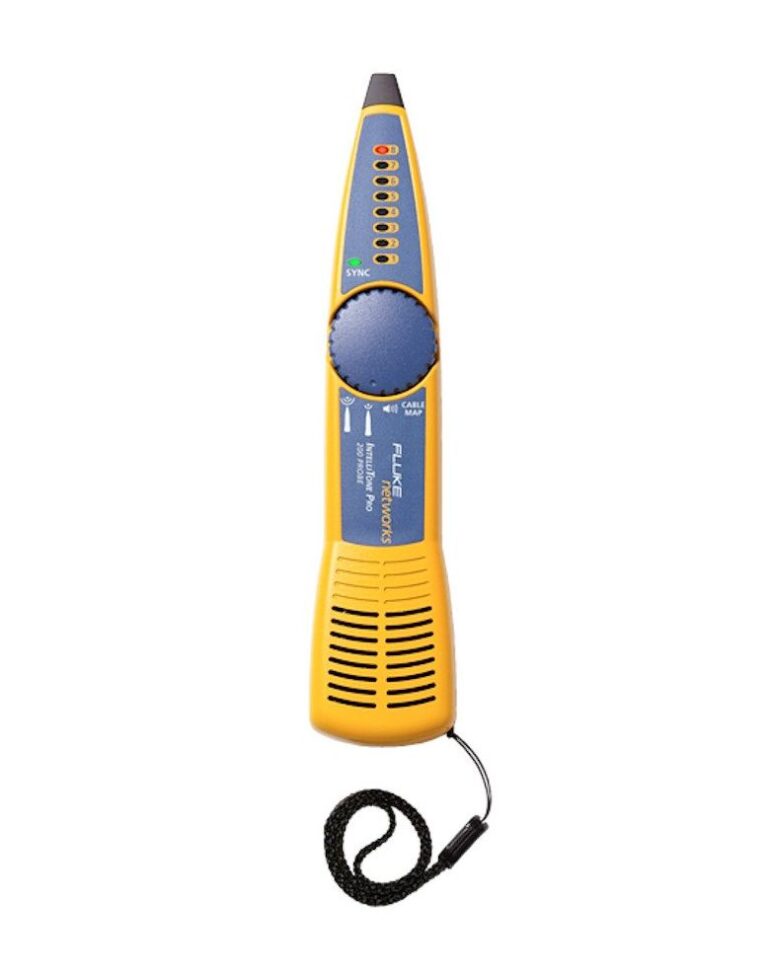

MT-8200-63A Probe detects IntelliTone digital signals on active networks and 500 to 1,200 Hz analog signals on inactive networks to locate, trace, and isolate copper cabling
Made in USA. brand FLUKE, model MT-8200-63A
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| General specifications | |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage temperature | -4 °F to +140°F (-20 °C to °C) |
| Operating relative humidity (% RH without condensation) | 95 % (50 °F to 95 °F; 10 °C to 35 °C) 75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C) |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test |
| Safety | EN 61010-1, Category: None |
| Altitude | 3000 m |
| EMC | EN 61326-1, FCC Part 15 B |
| Battery type and life | 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical |
| Applications | Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200. |
| Probe specifications | |
| Dimensions | 8.73 x 1.88 x 1.26 in (22.2 x 4.8 x 3.2 cm) |
| Display | (8) LED indicators, Sync LED indicator |
| Audio | IntelliTone: Microprocessor controlled audio files Analog: Detected toner signal |
| Control | Thumbwheel switch, volume control wheel |
| Tone detection | Detects IntelliTone™ digital signal for Locate, Isolate, and Cable Map Detects analog SmartTone signal (500-1200Hz) and other analog toners. |
| Toner interface | Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling. |
| Auto power down | Turns off automatically after 1 hour of inactivity |
Features
You can request the necessary certificates, documentation, instructions and user guide for FLUKE MT-8200-63A using the special form.
You can buy FLUKE MT-8200-63A in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. FLUKE MT-8200-63A price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
