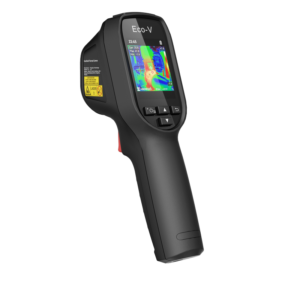

HIKMICRO Eco-V
Photo HIKMICRO Eco-V Description of HIKMICRO Eco-V Video HIKMICRO Eco-V Specifications HIKMICRO Eco-V Package Contents HIKMICRO Eco-V Warranty for HIKMICRO Eco-V Accessories for HIKMICRO Eco-VPrices for HIKMICRO Eco-V User Manual for HIKMICRO Eco-V Related instruments to HIKMICRO Eco-V
Made in China. brand HIKMICRO, model Eco-V
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $230
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The handheld thermal camera is based on the thermal technology, specially designed for the needs of temperature measuring applications. People can quickly troubleshoot faults on-site.
Features

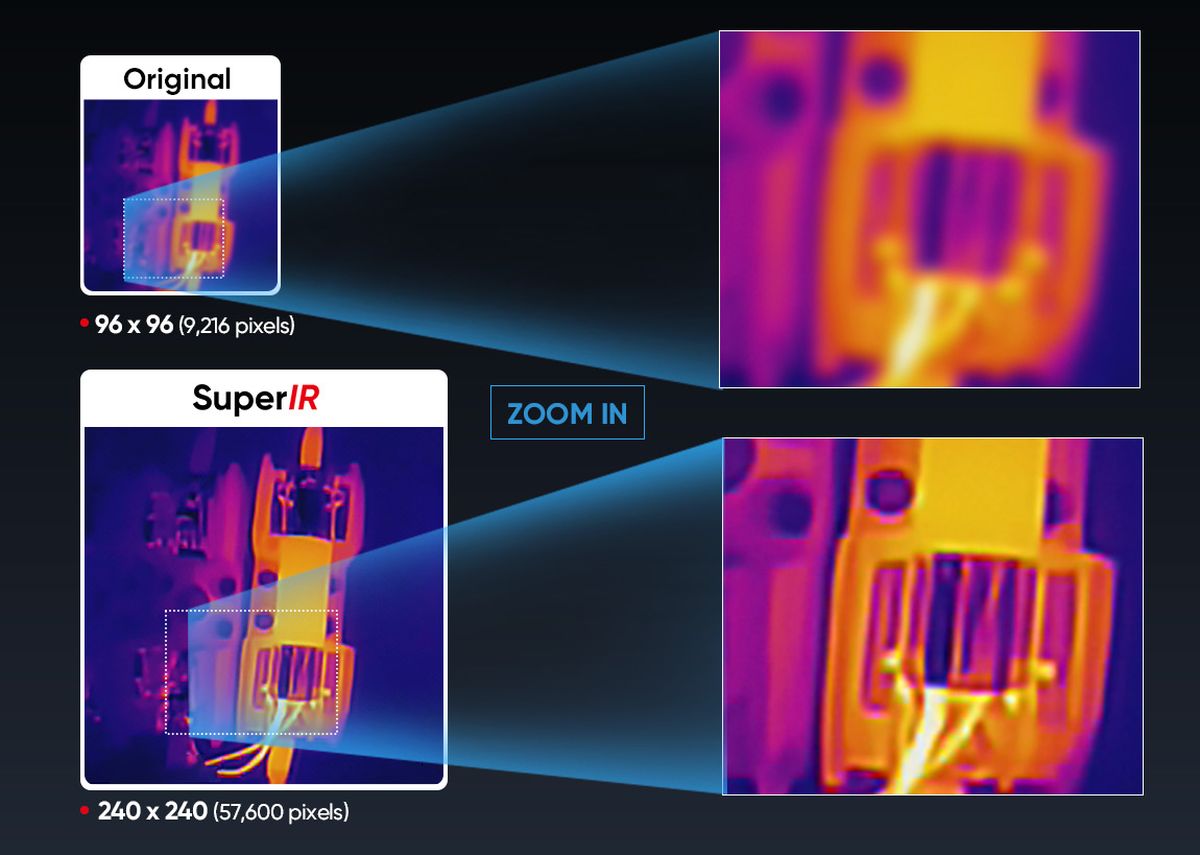

Enhanced Thermal Clarity with SuperIR – Powered by HIKMICRO SuperIR image enhancement technology, it upscales thermal images from 96 × 96 (9,216 pixels) to 240 x 240 (57,600 pixels) resolution when viewing live with 25 Hz fast image frequency and capturing photos.

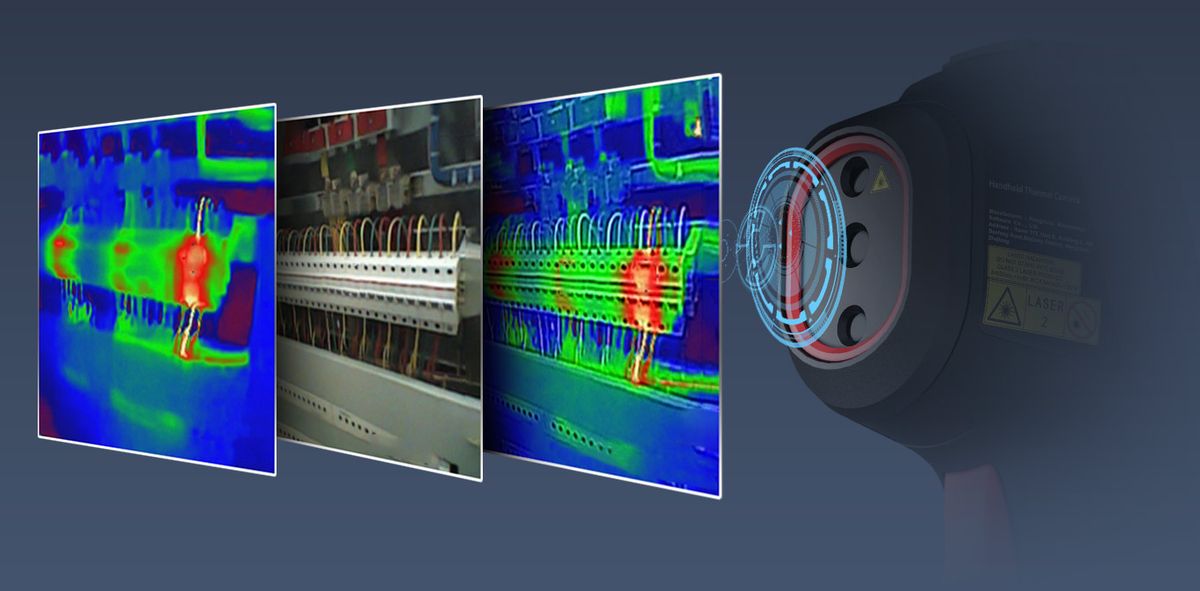

Dual-camera Thermal Imager (Eco-V Only) – Built-in IR camera and visible camera, allow you to switch 3 image modes (Thermal, Visual, and Fusion). “Fusion” blends key details from a 0.3M Pixels visual camera to the IR image, adding extra detail and clarity.

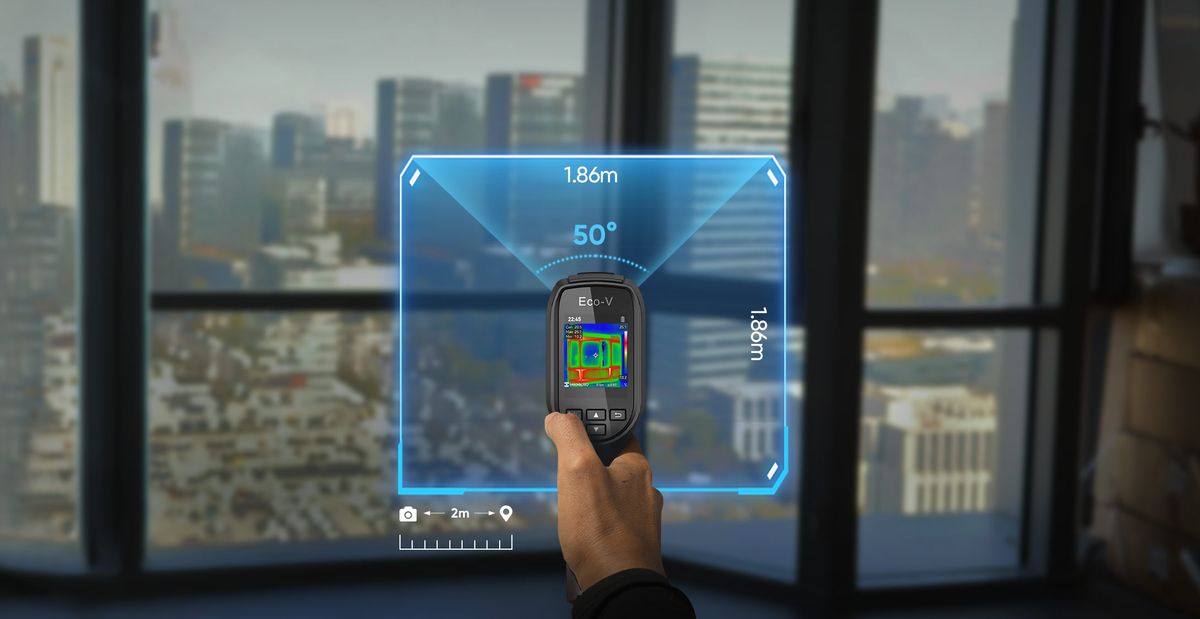

50° Wide Angle Lens – Scan large areas quickly with the 50° wide angle lens to find issues like air infiltration, water leaks, and insulation issues.

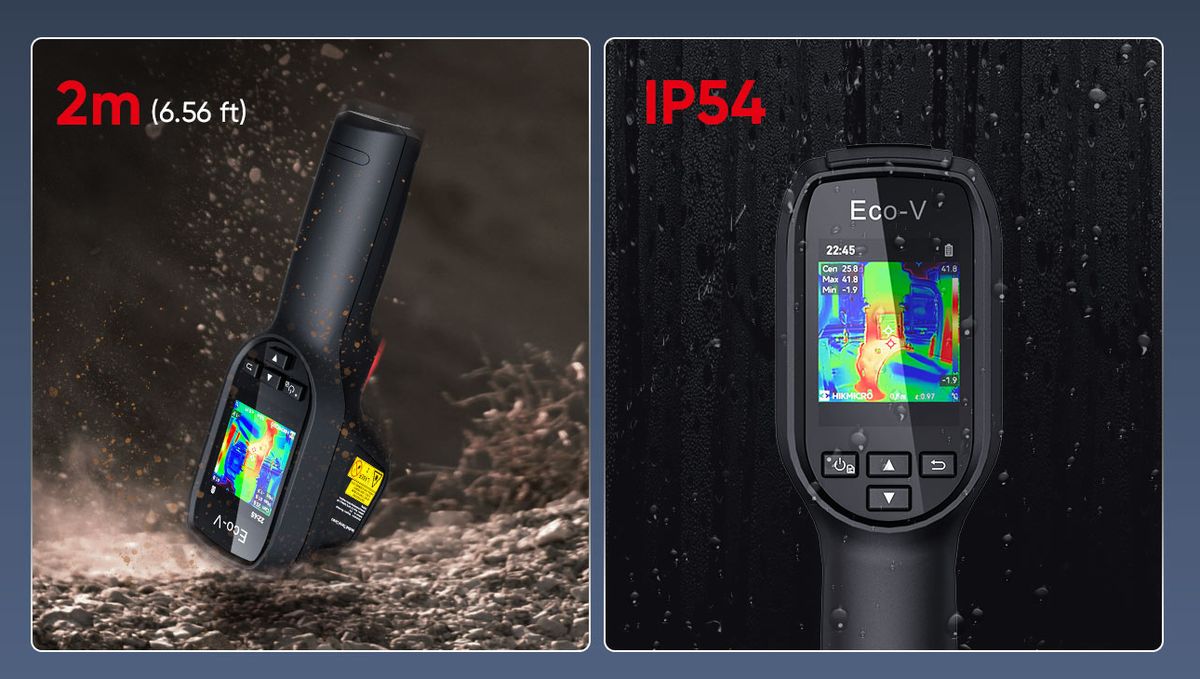

Rugged and Durable – Features IP54-rated form factor, passes strict drop tests up to 2 meters (6.56 feet) and comes with a three-year warranty.

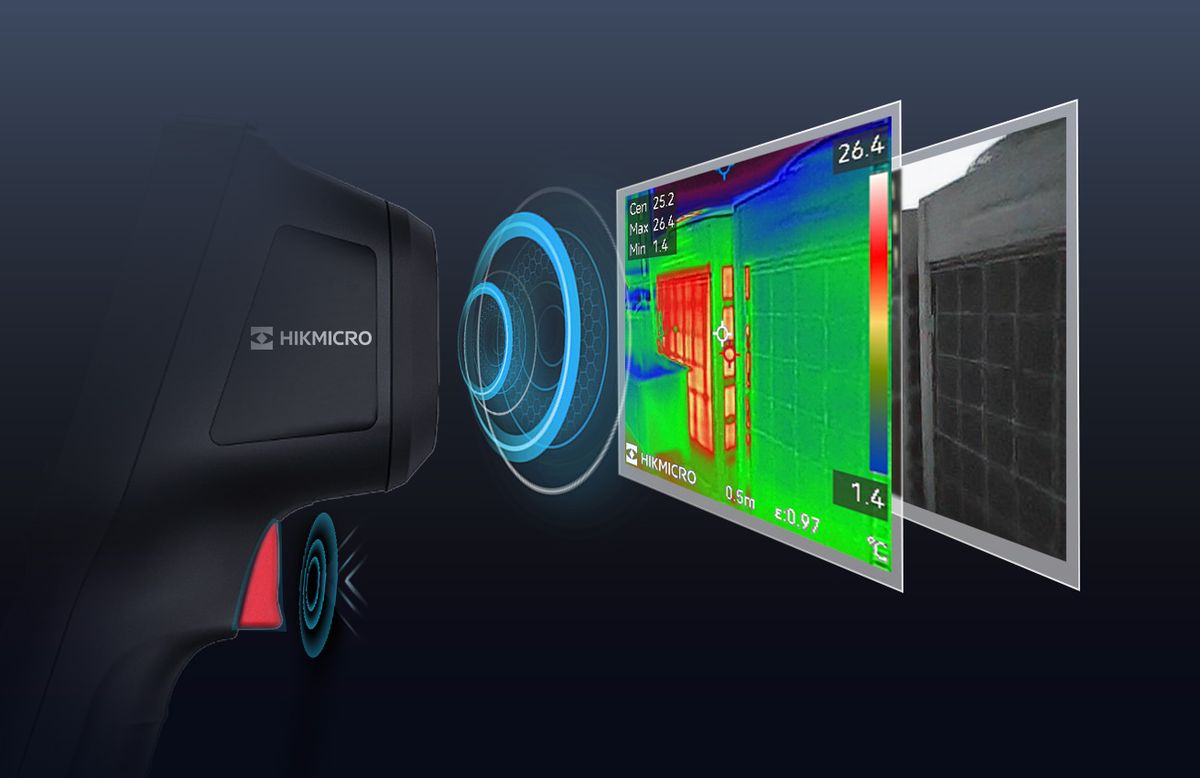

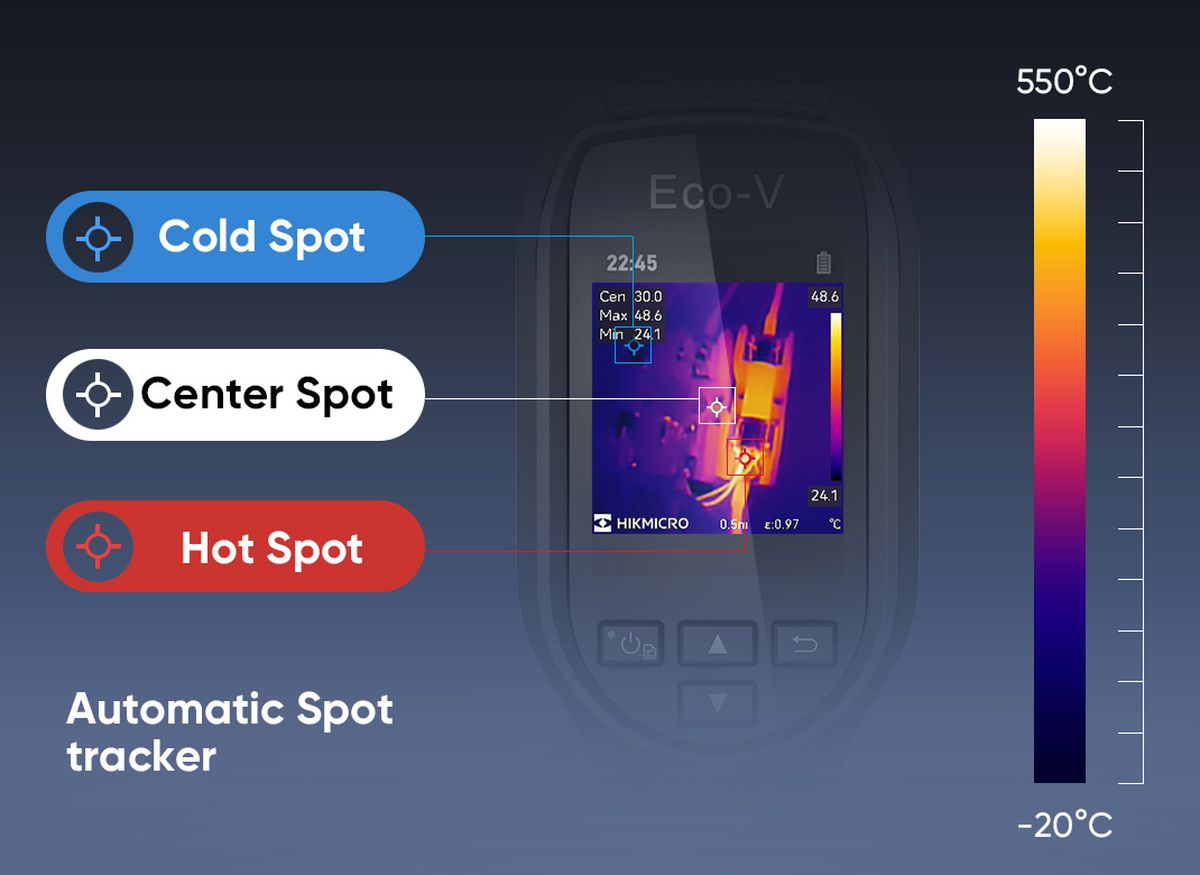

Full-screen Precise and Wide Temperature Measurement – Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C (-4°F) to 550°C (1022°F), with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
8 Hrs. Continuous Runtime – Built-in 3350mAh Li-Ion rechargeable battery and thoughtful auto power-off settings (5/10/20 minutes) allow the camera up to 8 hours of continuous operation.
Thoughtful Functions for Efficient Workflow

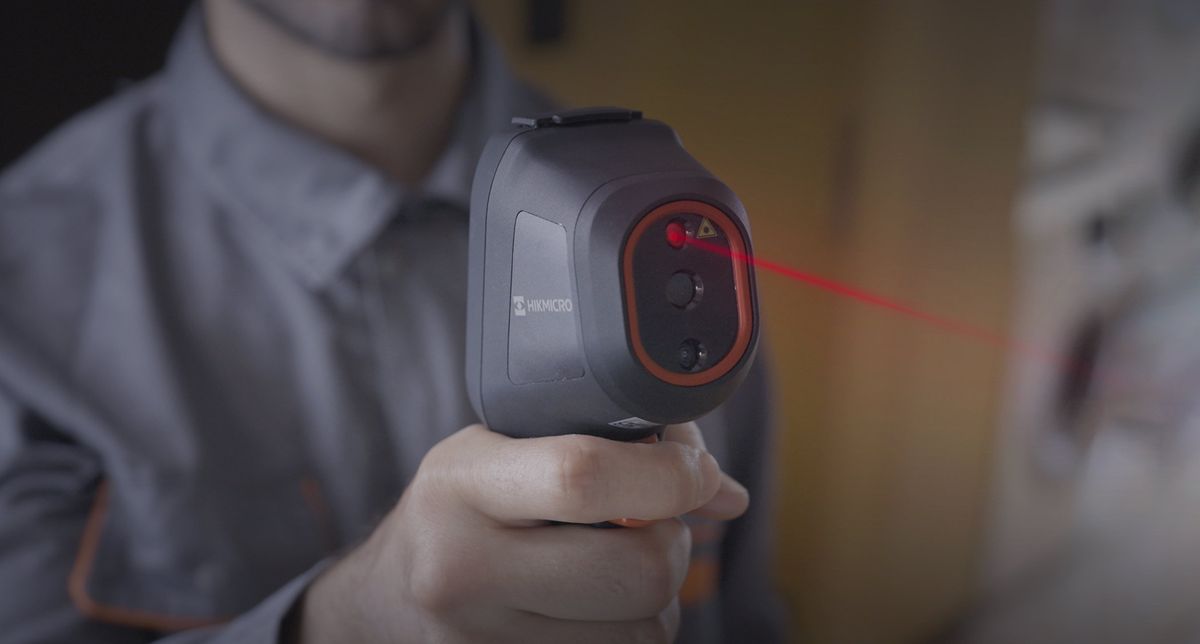

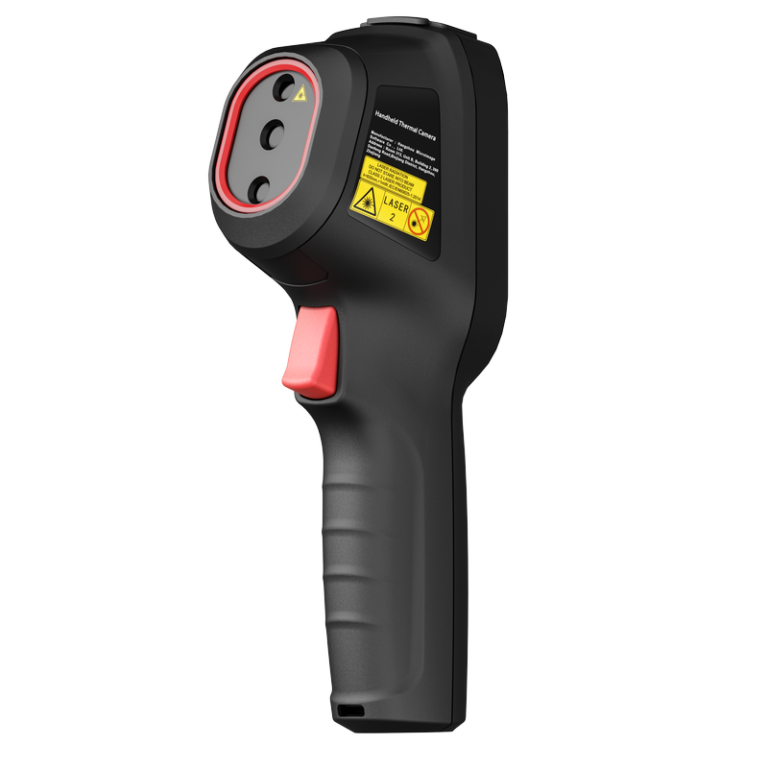

Locate with Laser Pointer – Helps show the position of the center point on actual object.
1-Click IR and Visual Image Storage (Eco-V Only) – Saving visual and thermal images simultaneously in one click allows you efficient workflow and a fast inspection report.

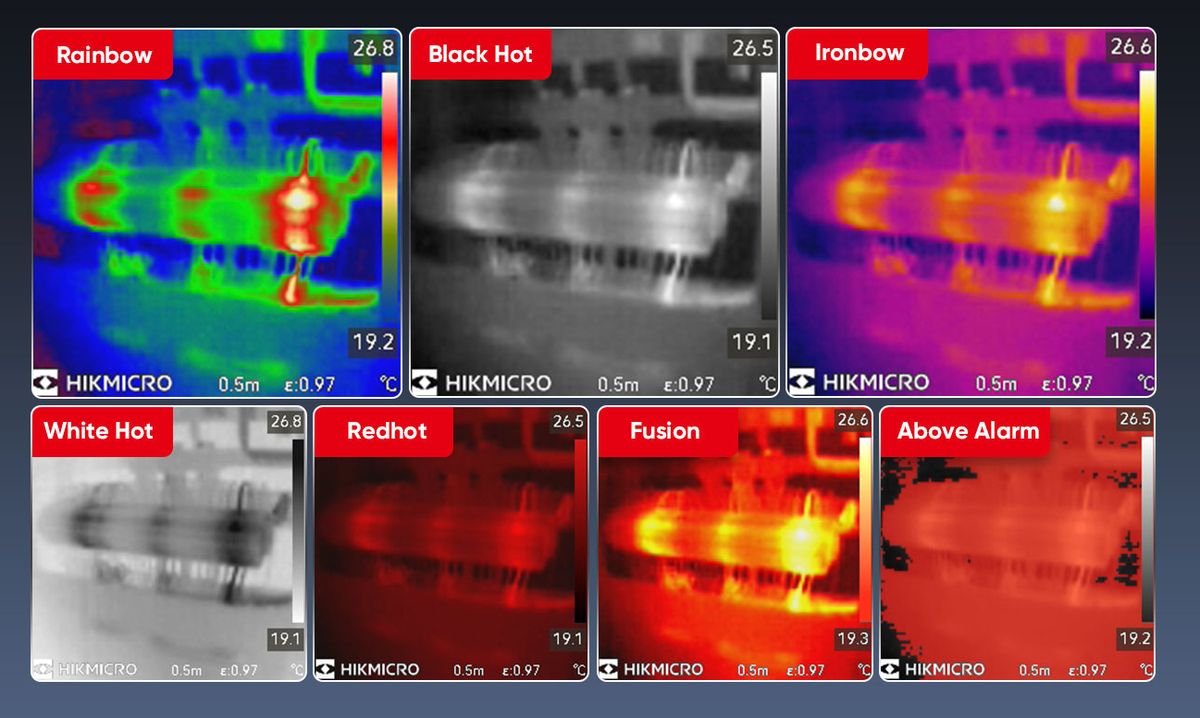

7 Color Palettes – Offers White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion & Above Alarm 7 color palettes so you can choose the ideal color scale for your job.
Introduction video
How to video

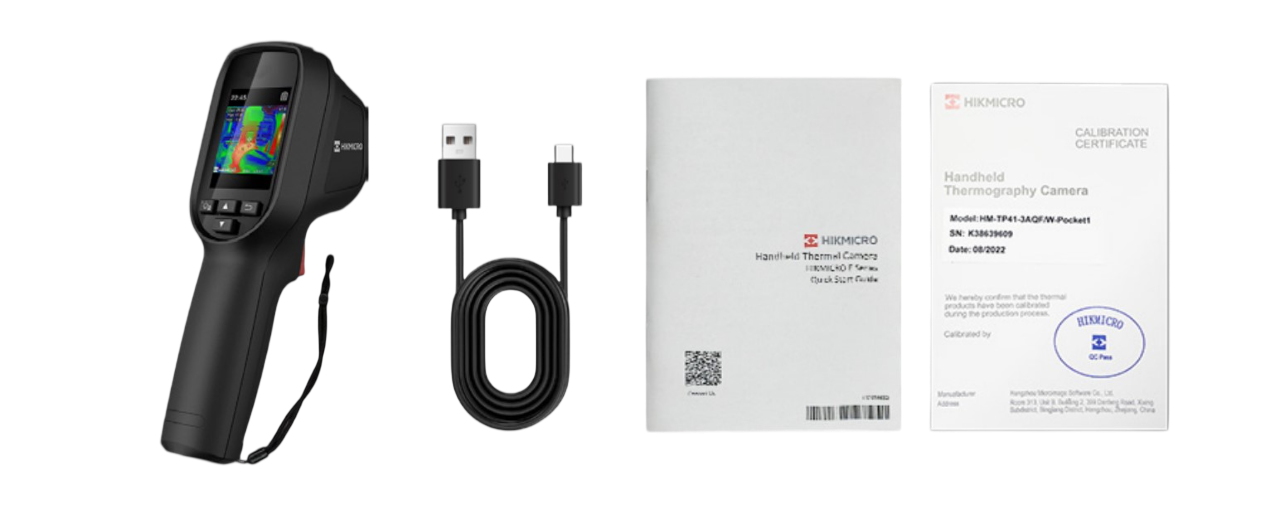

Unboxing HIKMICRO Eco series
| Infrared Image | |
| IR Resolution | 96×96 (9,216 pixels) SuperIR 240 x 240 (57,600 pixels) |
| Distance to Spot Ratio (D:S) | 112:1 |
| Image Frequency | 25 Hz |
| NETD | < 50 mK (@ 25 °C, F#=1.0) |
| Detector Pitch | 12 μm |
| Focal Length | 1.35 mm |
| Spectral Range | 7.5 to 14 μm |
| Field of View (FOV) | 50° × 50° |
| F-number | F1.0 |
| Spatial Resolution (IFOV) | 8.89 mrad |
| Min. Focus Distance | 0.1m (0.33 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Display | 240 × 320 Resolution, 2.4″ LCD Screen |
| Image Modes | Thermal/Visual/Fusion |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Color Alarm | Above alarm, Below Alarm |
| Visual Camera | 640 × 480 |
| Measurement and Analysis | |
| SuperScene | Water Leak, Insulation |
| Object Temperature Range | Range -20°C to 150°C (-4°F to 302°F) Range 100℃ to 550℃ (212°F to 1022°F) |
| Accuracy | Max (± 2°C/3.6°F, ± 2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual |
| Data Storage and Communication | |
| Storage Media | Built-in 4G eMMC (user available storage space is less than the nominal capacity) |
| Image Storage Capacity | Approx. 30,000 Images |
| General | |
| USB Interface | USB Type-C |
| Laser | Yes, Class II |
| Battery Type | Rechargeable Li-ion battery |
| Battery Charging Time | Approx. 3 hours fully charged (Adapter Output: 5 V 2 A) |
| Battery Operating Time | Approx. 8 hours |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 290 g (0.64 lb) |

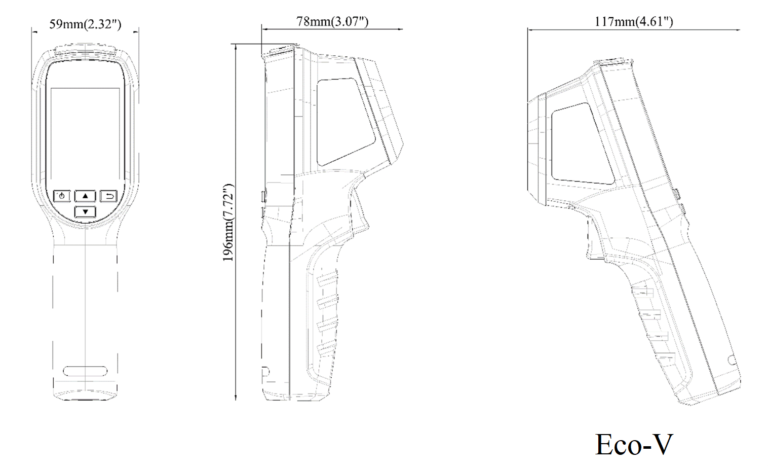

| Dimension | 196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in) |
| Tripod Mounting | UNC ¼”-20 |
Model Number:
The warranty for the HIKMICRO Eco-V thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
| Photo | Model | Description |
|---|---|---|
|

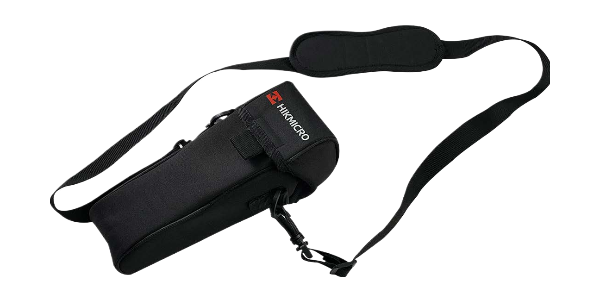

HM-B01-POUCH | Soft Carrying Pouch |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TP30-1AQF-Eco-V | 96×96, 50° × 50°, 640×480 visible camera, NETD<50mk, 25 Hz, -20~550℃, ±2℃/±2%, 4GB, 2.4 inch 240×320 LCD screen, Laser pointer, SuperIR | Delivery time from 12 weeks | from 230$ |
-
+
|
|
| HM-B01-POUCH | Soft pouch with adjustable shoulder strap, for E and B series cameras | Delivery time from 12 weeks | from 16$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO Eco-V using the special form.
You can buy HIKMICRO Eco-V in UAE at a price starting from 230 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO Eco-V price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
