Made in China. brand HIKMICRO, model HM-TD2A37T-25/Q
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $4 000
In stock
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

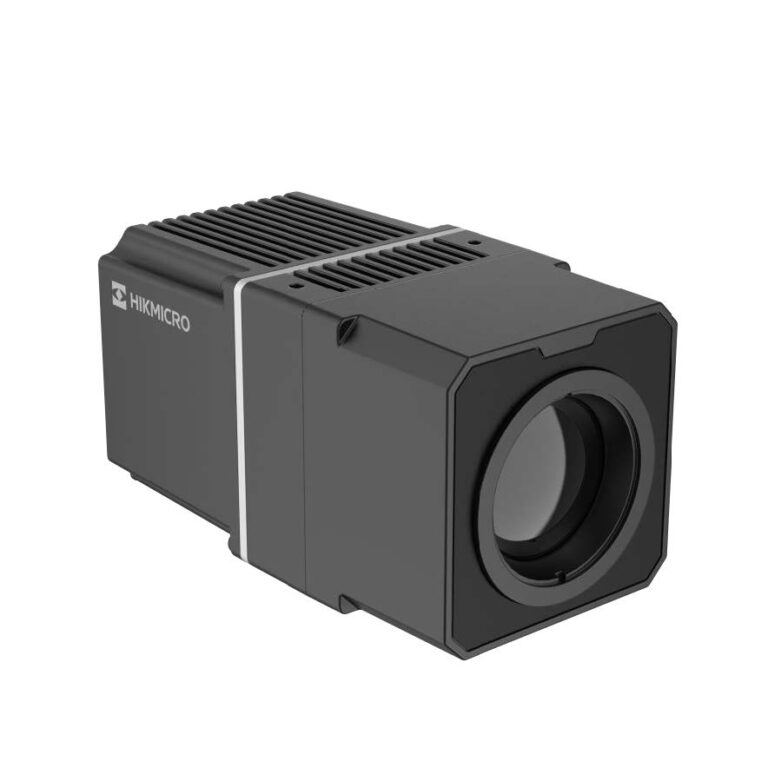

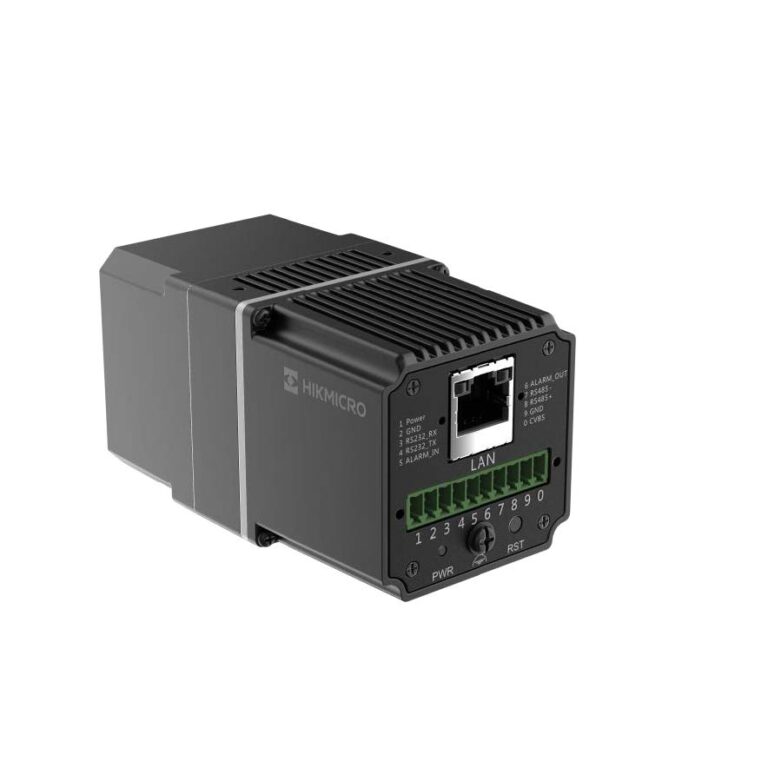

The Thermographic Network Auto-Focus Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 384×288 |
| Pixel Pitch | 17 μm |
| NETD | ≤ 35 mK (@25° C,F# = 1) |
| Focal Length | 25 mm |
| Focus Mode | Semi-auto & Manual |
| IFOV | 0.68 mrad |
| Aperture | F 1.0 |
| Field of View | 14.8° x 11.1° (H x V) |
| Min. Focusing Distance | 0.5 m |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 150°C, 0°C to 650 °C |
| Temperature Accuracy | Max. (± 2°C, ± 2%) |
| Measurement Presets | 3 temperature measurement rule types, 10 rules (max. 10 points, max.10 regions, and max. 1 line). *The total No. of rules enabled at the same time can’t exceed 10. |
| Video and Image | |
| Main Stream | 50 fps (384 x 288) |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Digital Zoom | 2x, 4x, 8x |
| Radiometric Capture | Yes |
| Radiometric Infrared-Video Streaming (Compressed) | Over RJ45, 384 x 256@50 fps |
| Network | |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP, DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP |
| Network Storage | NAS (NFS, SMB/CIFS) |
| API | MODBUS, ISAPI, Network SDK, Open Network Video Interface (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), MAC address Binding, HTTPS Encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), Access Control, IP Address Filtering, Illegal Login, HDD Full, HDD Error, Network Disconnected |
| Client | HIKMICRO Studio |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 VDC) |
| Alarm Output | 1, alarm output; NC, level quantity |
| Alarm Action | Preset/patrol scan/alarm record/relay output/smart capture/FTP upload/email linkage |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
| Analog Output | 1, CVBS output |
| General | |
| Menu Language | English |
| Power Supply | 10-30 VDC |
| Power Consumption | 4.8W Max |
| Working Temperature/Humidity | -20 °C to 50 °C 90% or less |
| Protection Level | IP40 |

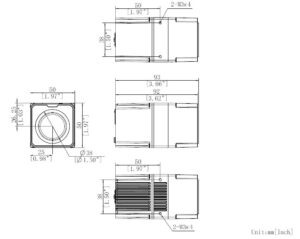

| Dimensions | 93 mm x 50 mm x 50 mm ( 3.66″ x 1.97″ x 1.97″) |
| Mount | M3 |
| Material | Aluminum alloy |
| Weight | Approx. 344 g (0.76 lb.) |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TD2A37T-25/Q | 384x288, 25 mm, autofocus, 14.8°×11.1°, 50fps, -20~550℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, Power in DC 12V | В наличии | from 4 000$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HM-TD2A37T-25/Q using the special form.
You can buy HIKMICRO HM-TD2A37T-25/Q in UAE at a price starting from 4000 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO HM-TD2A37T-25/Q price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
